Rear Clutch: Disassembly

Remove snap ring, retaining plate, steel plate, lined plate, and dished plate in same order used for front clutch. See Fig 1 . Remove coil spring retainer using compressing tool. Take out retainer and all springs. Remove piston by blowing compressed air into oil hole.

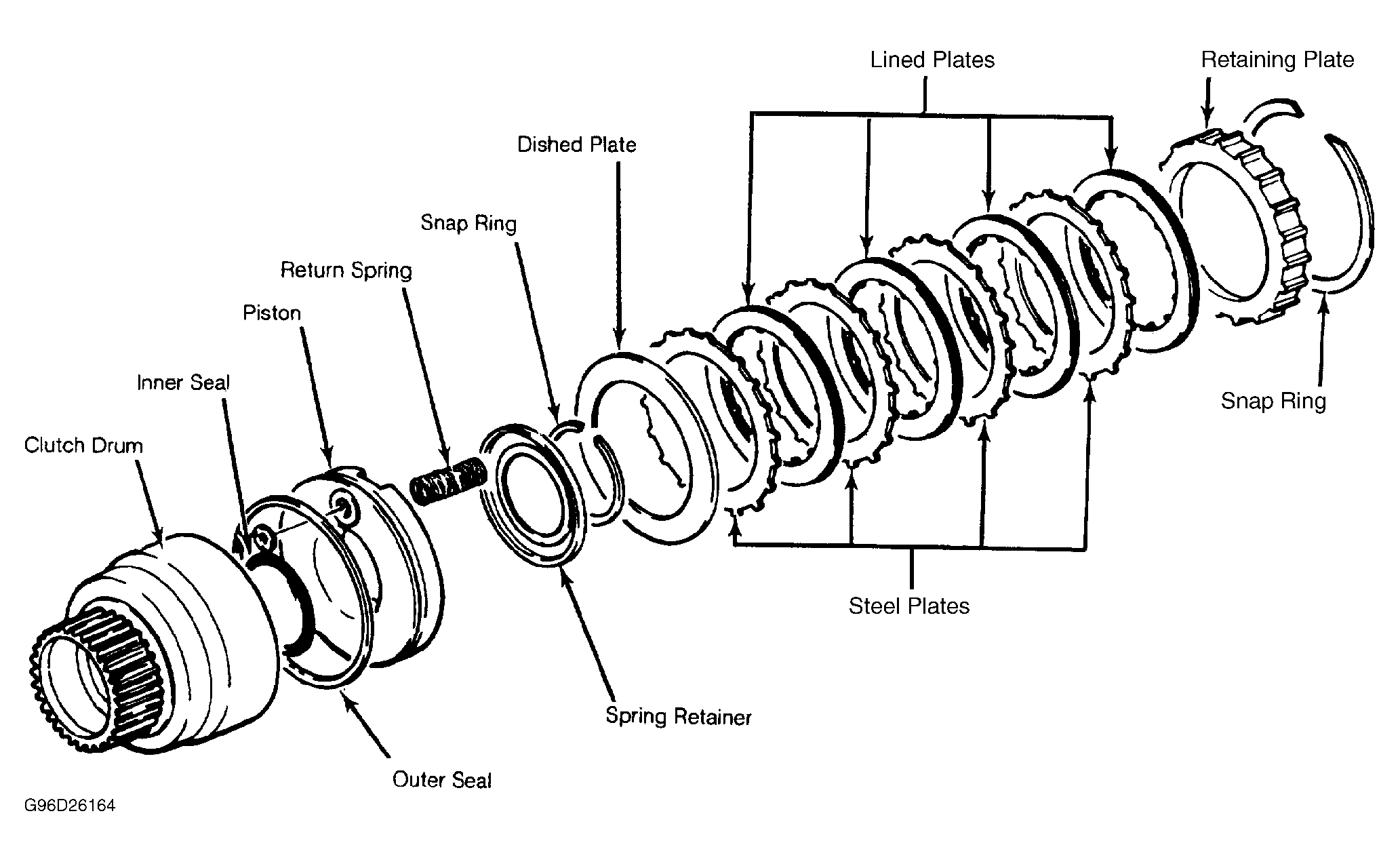

Fig 1: Exploded View Of Forward (Rear) Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
