Governor Valve Assembly: Disassembly

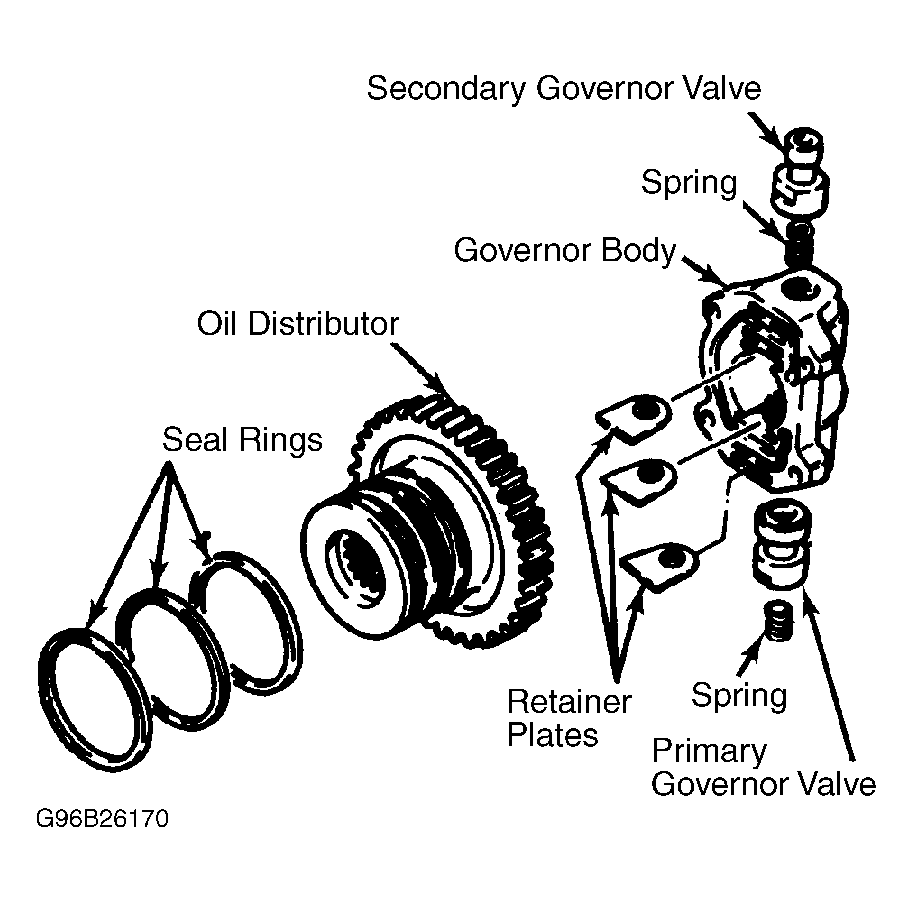

Separate governor from oil distributor by removing 4 attaching bolts. Remove secondary governor valve retainer plate. Remove spring and secondary governor valve from governor body. Remove primary governor valve spring seat, primary governor valve, spring and spring seat. See Fig 1 .
