Free Play (RWD)

Clutch pedal free play should be 0.39 - 0.59" (10 - 15 mm) and is adjusted by setting release cable clearance at engine compartment side of firewall.

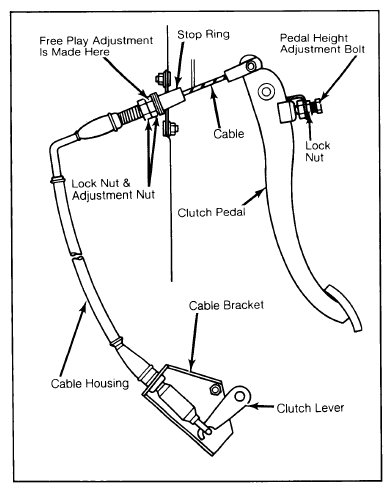

Fig 1: Adjusting Pedal Height
Courtesy of MAZDA MOTORS CORP.

Illustration is of FWD model, but RWD model is measured in the same manner.
Loosen lock nut, pull outer cable and turn adjusting nut until clearance is 0.06 - 0.09" (1.5 - 2.3 mm). Tighten lock nut and check pedal free play. See Figure.

Fig 2: Exploded View of Release Lever and Cable
Courtesy of MAZDA MOTORS CORP.

Illustration applies to FWD models

TIGHTENING SPECIFICATIONS

Application	Ft. Lbs. (N.m)
Flywheel-to-Crankshaft	60-65 (82-88)
Pressure Plate-to-Flywheel	13-20 (18-27)
