Removal (RX7)

Disconnect shock absorber lower end. Disconnect upper and lower control arm pivot bolts at axle housing. Disconnect Watt links at axle housing. Disconnect stabilizer bar (if equipped). Slowly lower axle and remove spring.

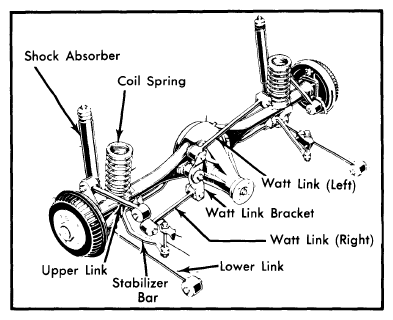

Fig 1: RX7 Rear Suspension Assembly

Courtesy of MAZDA MOTORS CORP.
