Master Cylinder: Reassembly

Reverse disassembly procedure and note the following: Coat all parts with clean brake fluid before reassembly. Use new gaskets at all hydraulic unions. When assembled, make sure piston cups do not cover compensating ports. Make sure valve with hole in center faces front side outlet hole.

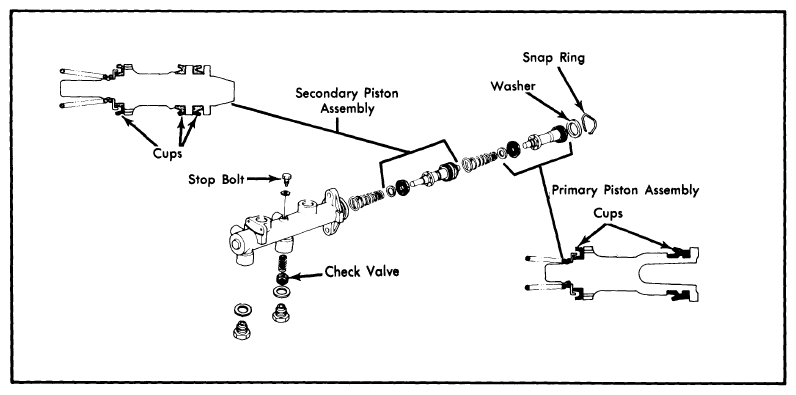

Fig 1: Exploded View of Master Cylinder Assembly All Models are Similar

Courtesy of MAZDA MOTORS CORP.
