Removal; RX4 & Cosmo

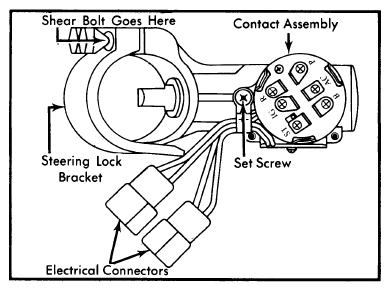

Remove steering wheel as previously outlined. Remove column shrouding. Remove combination switch. Disconnect electrical connector. Remove screw attaching switch contact (See  Figure )  housing to steering lock body and slide out contact housing.
