Rear Brake Shoes: Removal

With brake drum removed, remove brake shoe return springs. Remove brake shoe retaining springs and guide pins by compressing retaining spring and turning guide pin 90°. Remove brake shoes. Remove parking brake strut and disengage parking brake cable from operating lever of secondary shoe.

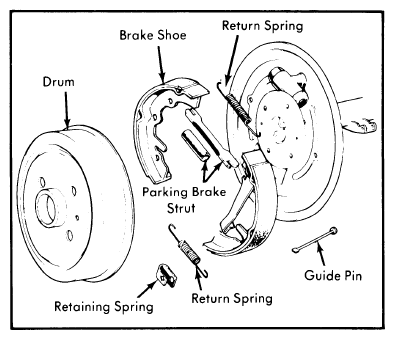

Fig 1: Disassembled View of GLC Rear Brakes Other Models Similar

Courtesy of MAZDA MOTORS CORP.
