MG Midget

  1. Disconnect battery and speedometer cable from the speedometer. Remove center console retaining screws and move console back and aside toward the steering column.
  2. Remove two knurled retaining nuts from behind speedometer and the knurled nut retaining the trip remote control in its bracket. Pull speedometer forward from dash.

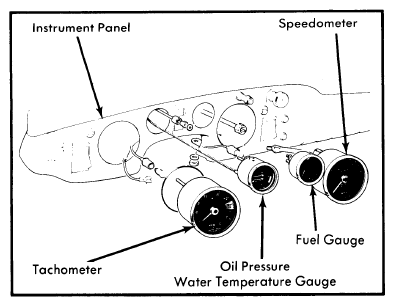

    Fig 1: MG Midget Instrument Cluster
    G09334268Courtesy of NOT AVAILABLE
