Steering Column Lock & Ignition Switch: Installation

Center locking mechanism on column. Hand tighten new shear bolts. Reconnect multi-pin connector. Check switch and lock operation. Tighten shear bolts until heads break.

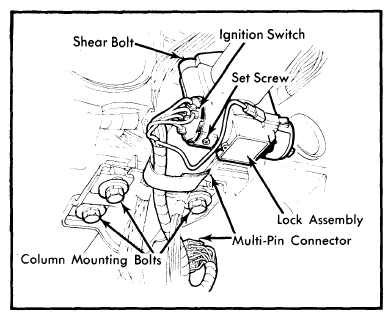

Fig 1: Bottom View of Steering Column Showing Ignition Switch and Column Lock - MGB Shown
G09357522Courtesy of NOT AVAILABLE
