1275 cc Engines

  1. With cylinder head removed, use suitable tool (18G 45) to compress valve springs. Remove keepers, valve spring cups, springs and valve spring seats. Remove valve stem oil seal (intake valves only) and remove valves.

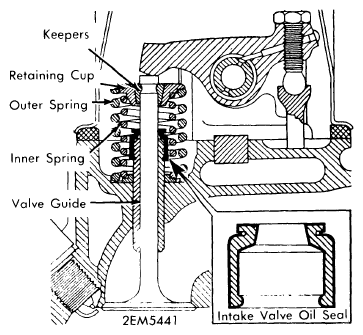

    Fig 1: 1275 Cc Engine Valve Components
    G09325970Courtesy of NOT AVAILABLE
  2. To install, place valve into its guide, followed by spring seat (if equipped). Slide an oil seal down each intake valve stem and fit it over valve guide. Install spring seat, springs and spring cups. Compress spring and install keepers.
