1098 cc Engines

  1. With cylinder head removed, compress valve spring using suitable tool (18G 45) and remove keepers. Remove spring compressor tool, retaining cap, valve springs, retainers and rubber seal.
  2. To install, replace retainer, springs, and compress spring. Install new seal on valve stem, pushing seal against bottom shoulder of keeper recess. Install keepers and make sure that seal is not pushed out of keeper recess. Release compressor tool and install split keeper retaining clip.

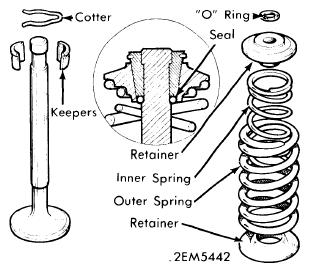

Fig 1: 1098 Cc Engine Valve Components
G09325971Courtesy of NOT AVAILABLE
