1098 CC Engines

Remove circlips locating pin and press pin out. Mark pin and piston so that assemblies will be replaced in original positions. To install, pin should be a hand push fit at 68°F. Replace circlips, making sure they fit correctly into grooves.

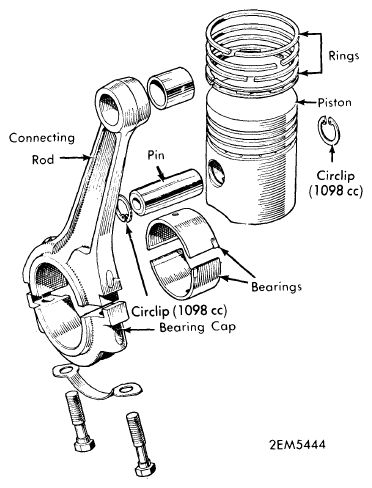

Fig 1: Piston & Rod Assembly (Later Cars)
G09325972Courtesy of NOT AVAILABLE
