Valve Guide Servicing: Installation

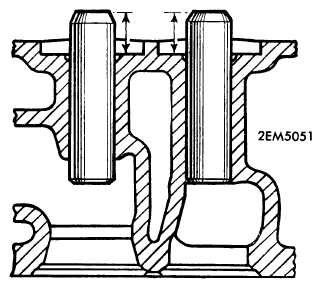

To install new guides, they should be driven in from top of cylinder head. Guides must be inserted with end having largest chamfer at top. Ensure that guides are positioned the specified distance above machined surface of valve spring seating (see Fig 1).
