Rocker Bushing Replacement

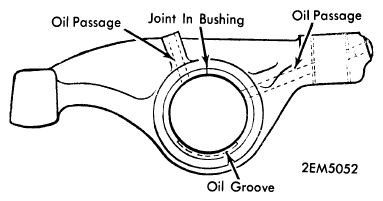

- Using suitable tool (18G226), place rocker on anvil and drive out worn bushing. Place new bushing on driver and position bushing with butt joint at top of rocker bore and oil groove in bushing at bottom of rocker bore.
Courtesy of NOT AVAILABLE
- It is necessary to drill oil holes in bushing to coincide with oil passage in rocker. Holes may be drilled before or after installing bushing in rocker.
- If holes are drilled after installation, remove adjuster screw and use a 0.093" (2.4 mm) drill to drill oil passage through bushing. Plug rocker end after drilling with a rivet, and weld rivet into position. Oil hole in top of rocker barrel must also be drilled with a 0.0785" (2 mm) drill. After drilling, burnish ream bushing to 0.6255 - 0.6260"" (15.8-15.9 mm).
