Piston Pin Replacement (All Other Engines)

Piston pins are press fit and are fully interchangeable in complete sets with earlier assemblies which have full floating pin. Use suitable tool or press to remove or install pins.

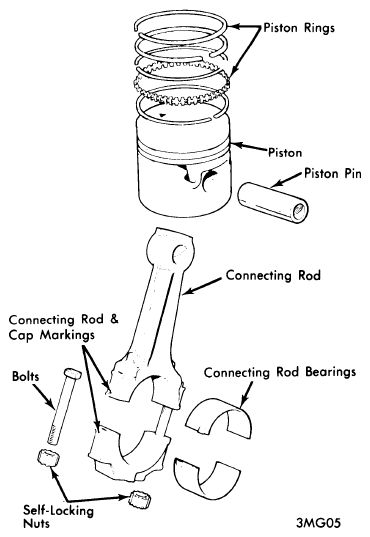

Fig 1: Piston Assembly (Late Type Shown)
