Piston Pin Replacement (18GB Engine)

Piston pins are full floating. Remove two circlips located at each pin and press pins out. To assemble, hand push pins into rod and piston at room temperature of 68°F. Secure each pin in piston with two circlips, make sure they fit well into grooves.

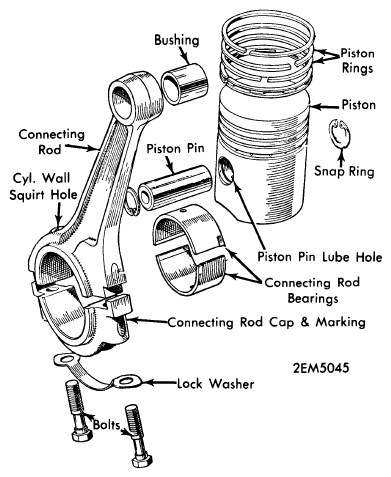

Fig 1: Full Floating Piston, Pin & Rod (18GB Engines)
