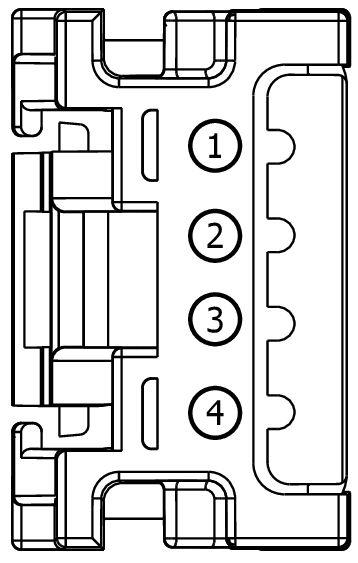

Connector End View C2999 - STEERING WHEEL SWITCH RH UPPER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2999 | STEERING WHEEL SWITCH RH UPPER | PIA | part# N/A | Not Available | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD215 (*) | * | GROUND | N/A | ||||
| 2 | LX104 (*) | * | A/D CHANNEL 2 | N/A | ||||
| 3 | RX102 (*) | * | RETURN | N/A | ||||
| 4 | VLN04 (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | N/A | ||||
