Parking Aid

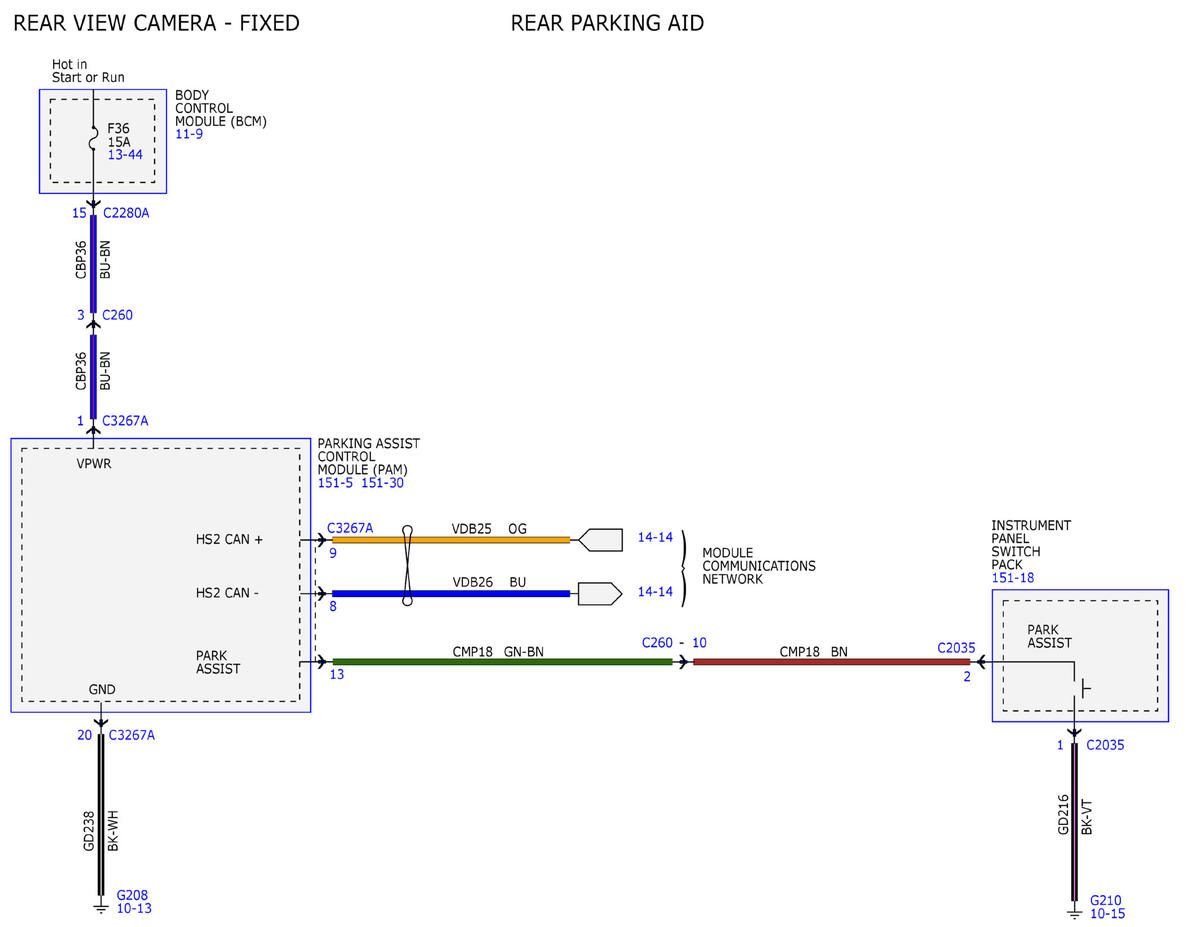

Fig 1: Parking Aid - Wiring Diagrams (1 Of 12)

GFDWR218738

Courtesy of FORD MOTOR COMPANY

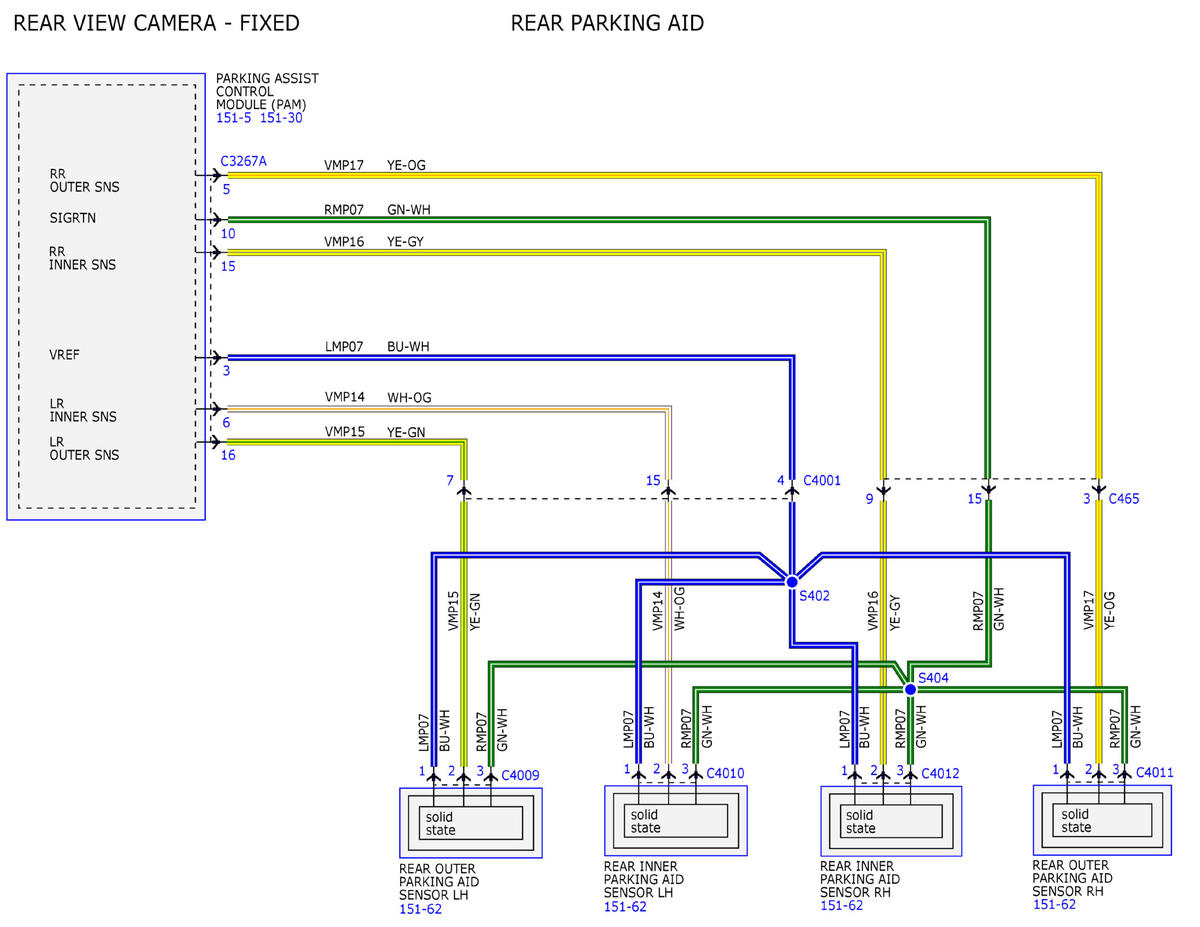

Fig 2: Parking Aid - Wiring Diagrams (2 Of 12)

GFDWR218742

Courtesy of FORD MOTOR COMPANY

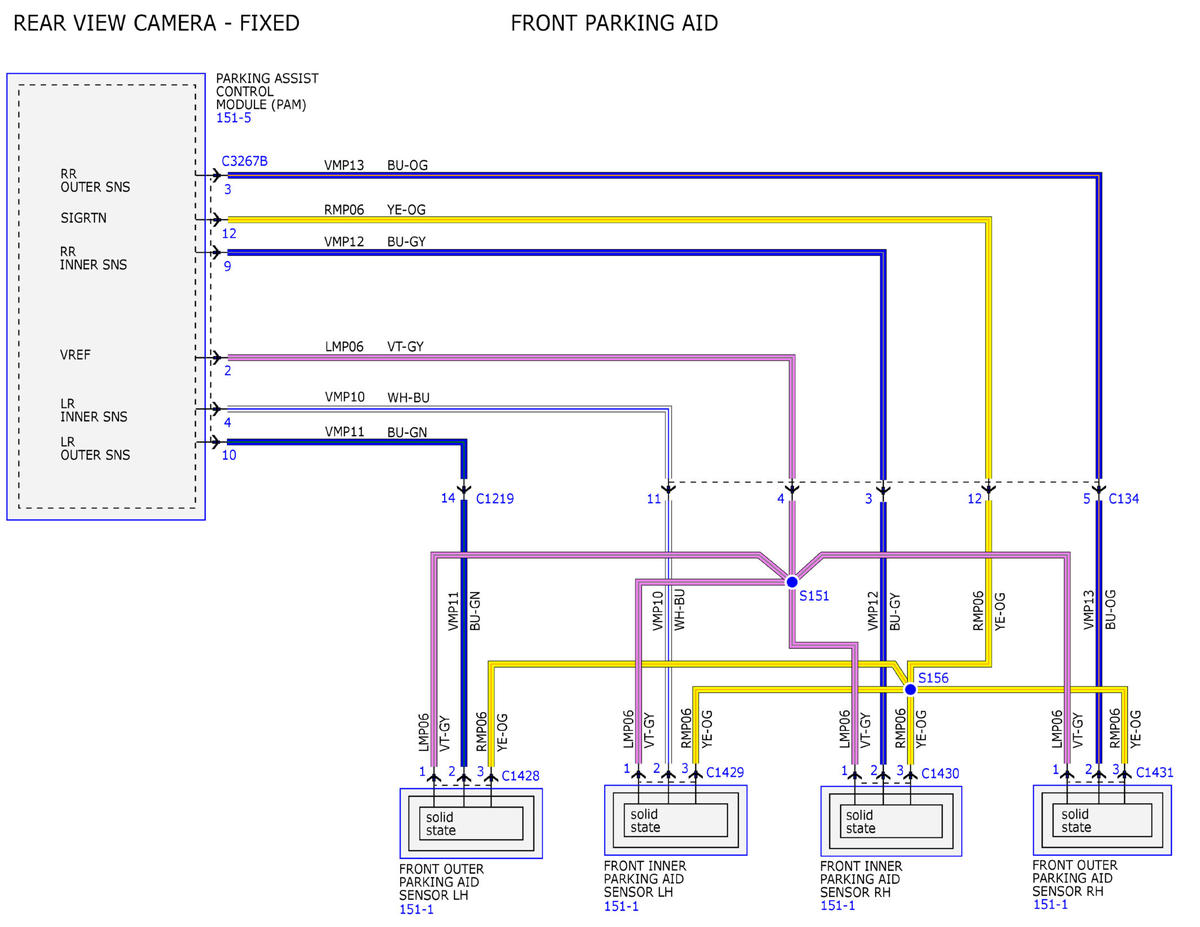

Fig 3: Parking Aid - Wiring Diagrams (3 Of 12)

GFDWR218743

Courtesy of FORD MOTOR COMPANY

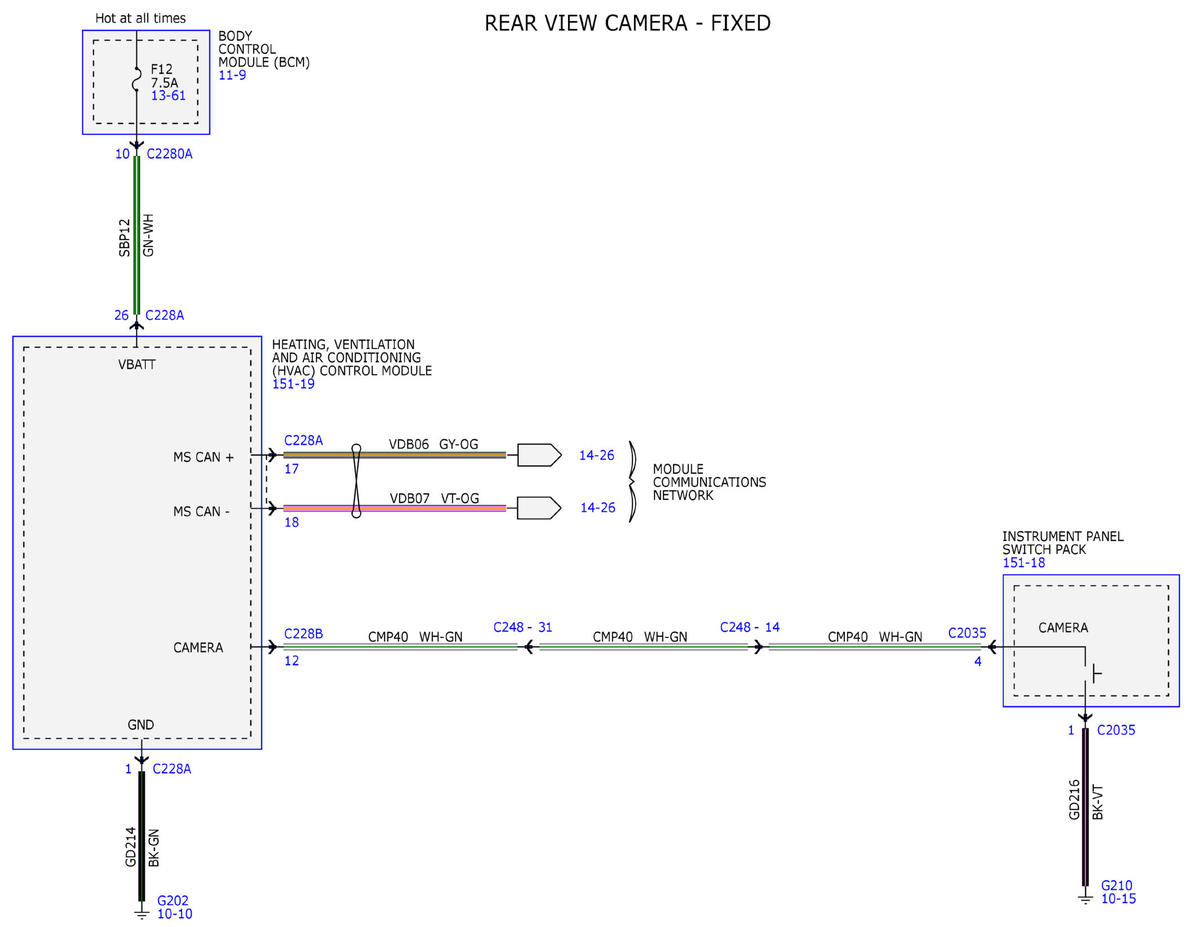

Fig 4: Parking Aid - Wiring Diagrams (4 Of 12)

GFDWR218744

Courtesy of FORD MOTOR COMPANY

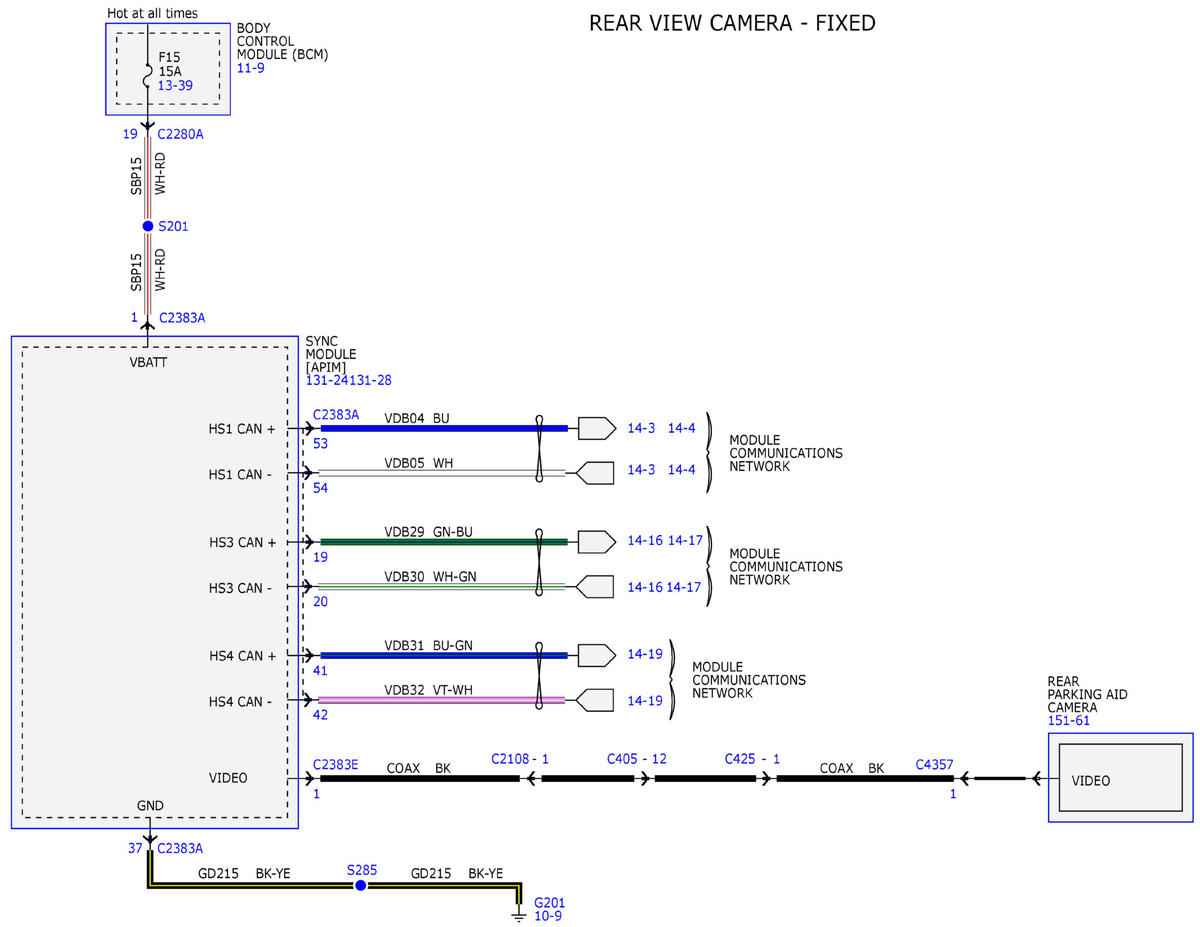

Fig 5: Parking Aid - Wiring Diagrams (5 Of 12)

GFDWR218745

Courtesy of FORD MOTOR COMPANY

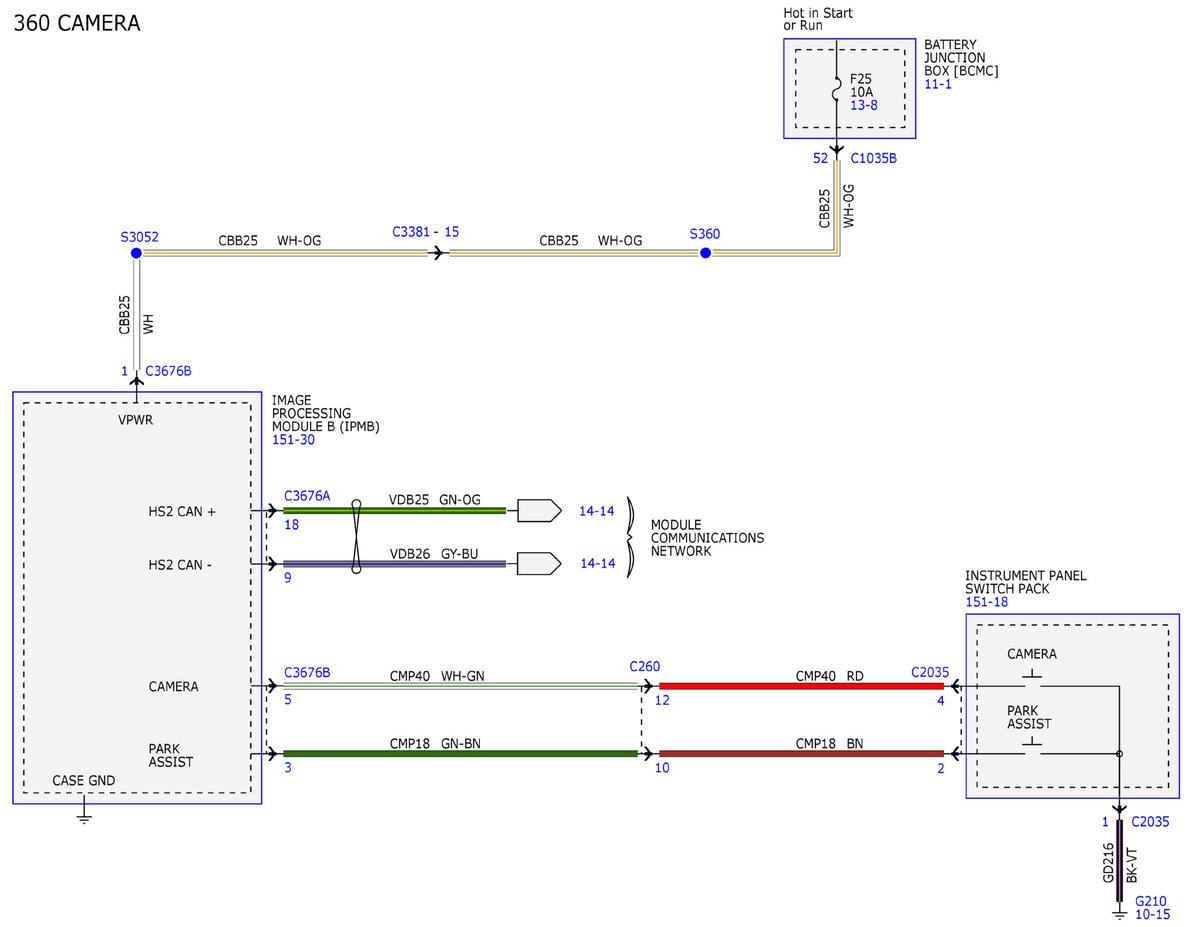

Fig 6: Parking Aid - Wiring Diagrams (6 Of 12)

GFDWR218746

Courtesy of FORD MOTOR COMPANY

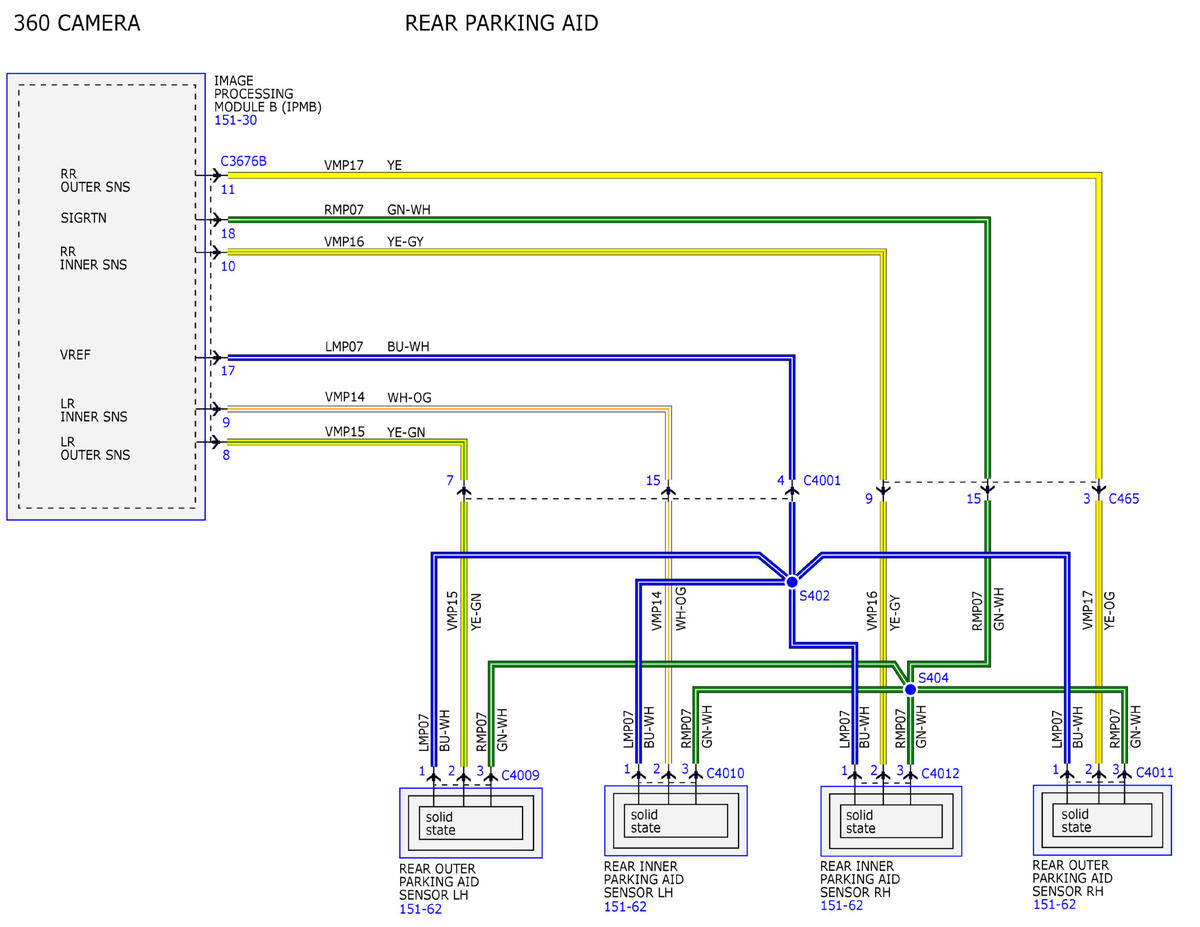

Fig 7: Parking Aid - Wiring Diagrams (7 Of 12)

GFDWR218747

Courtesy of FORD MOTOR COMPANY

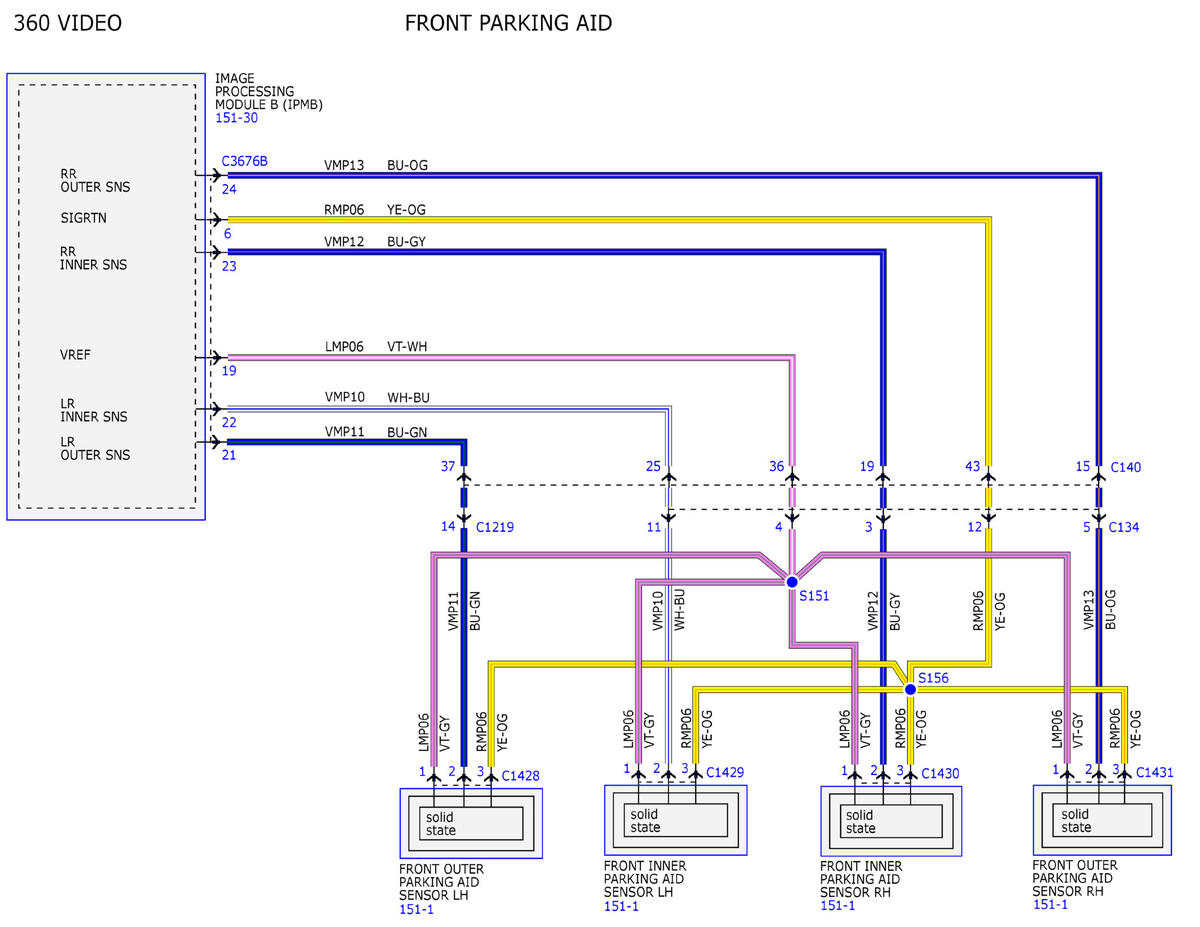

Fig 8: Parking Aid - Wiring Diagrams (8 Of 12)

GFDWR218748

Courtesy of FORD MOTOR COMPANY

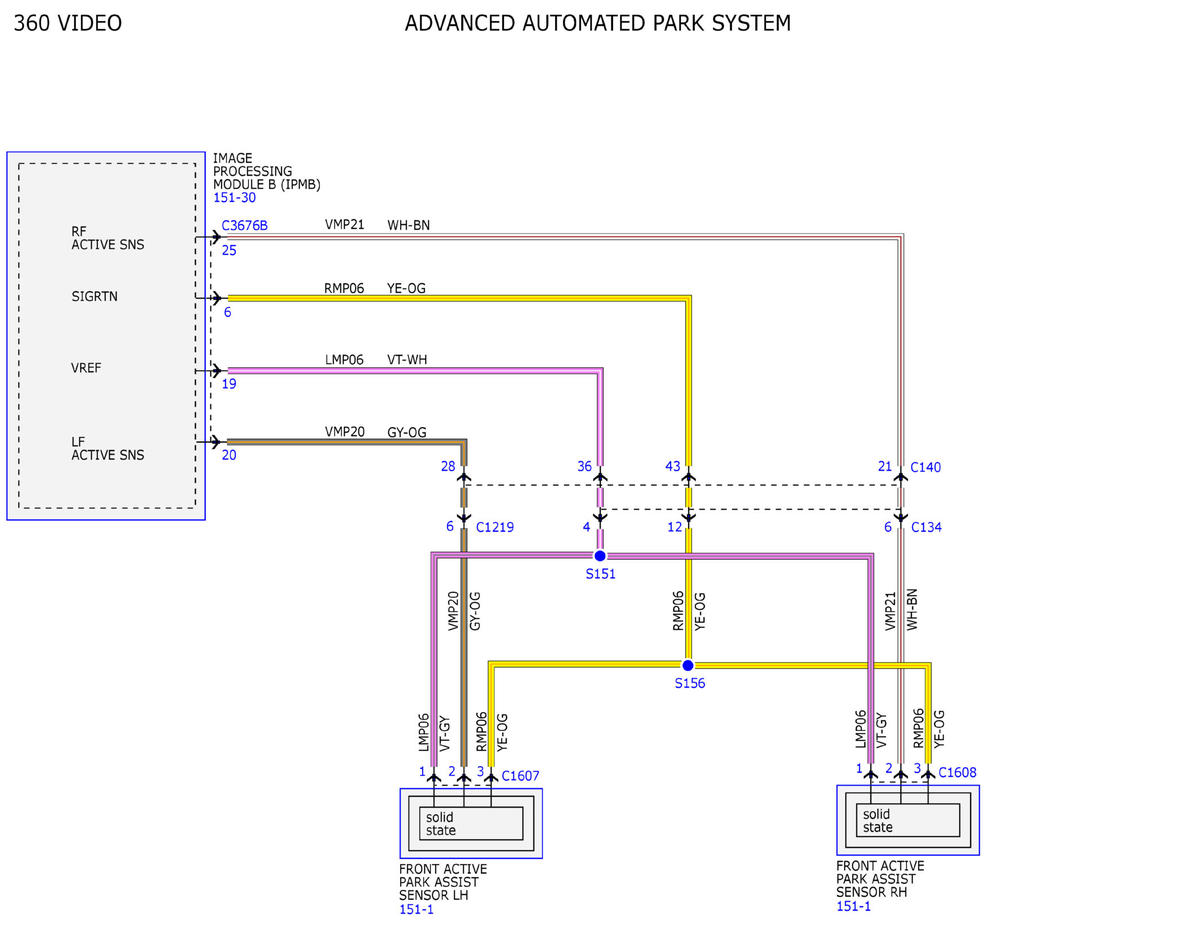

Fig 9: Parking Aid - Wiring Diagrams (9 Of 12)

GFDWR218749

Courtesy of FORD MOTOR COMPANY

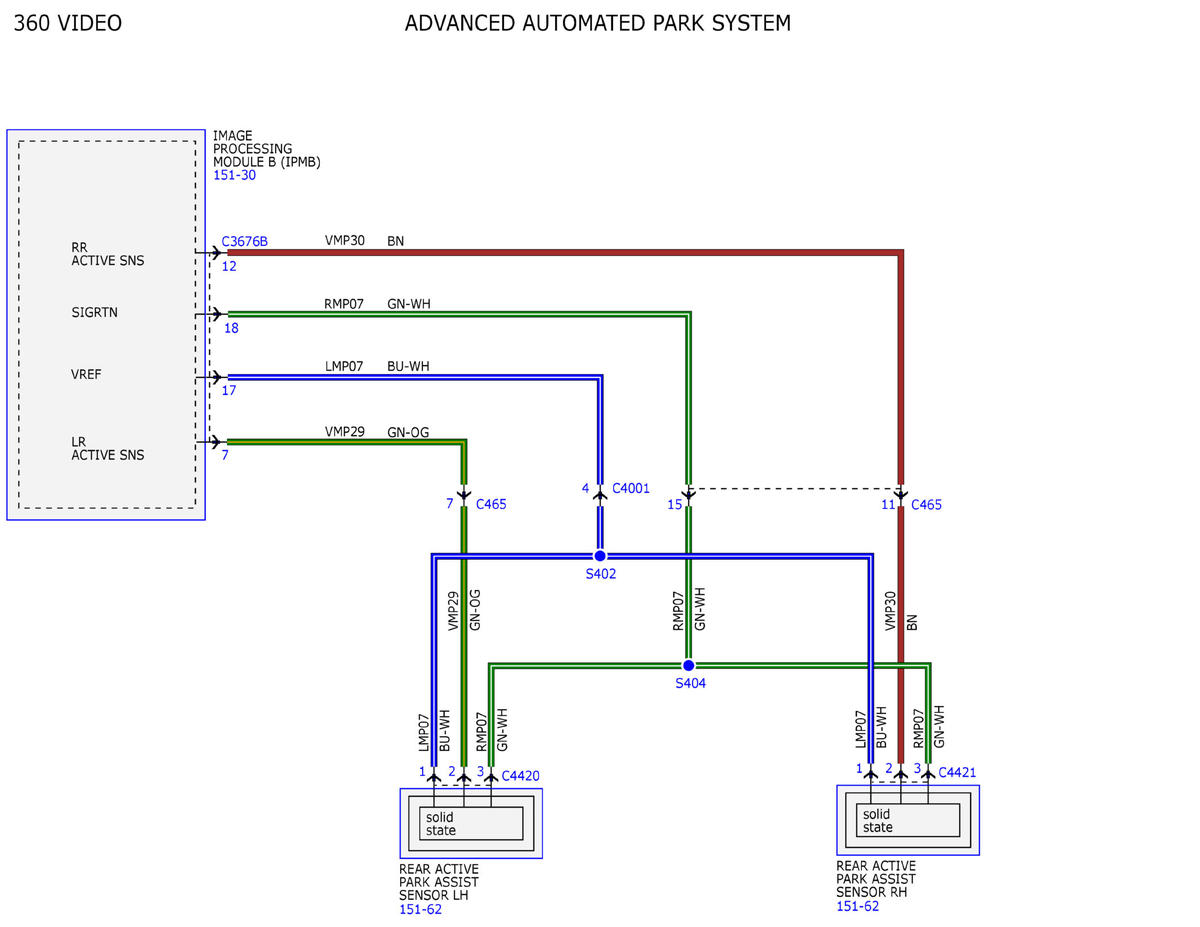

Fig 10: Parking Aid - Wiring Diagrams (10 Of 12)

GFDWR218739

Courtesy of FORD MOTOR COMPANY

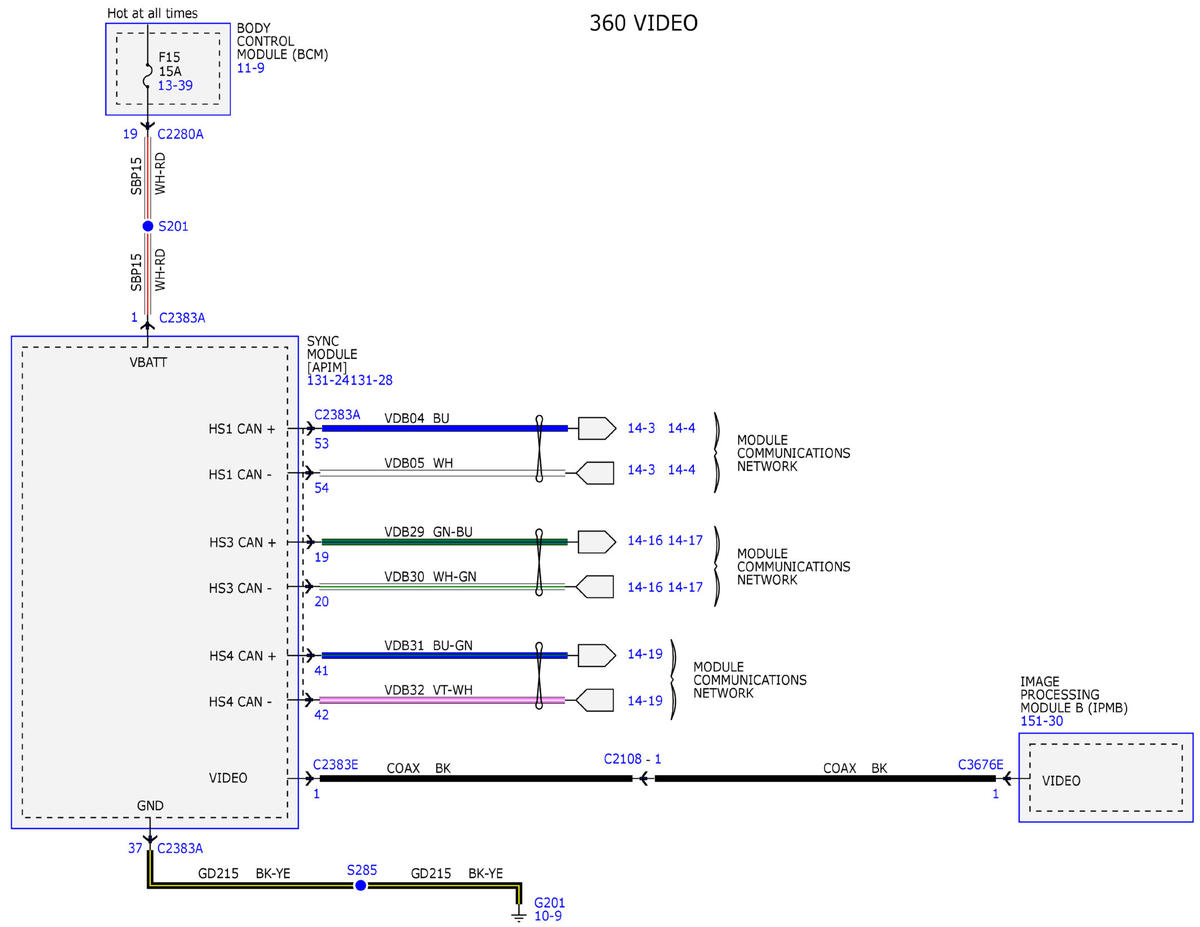

Fig 11: Parking Aid - Wiring Diagrams (11 Of 12)

GFDWR218740

Courtesy of FORD MOTOR COMPANY

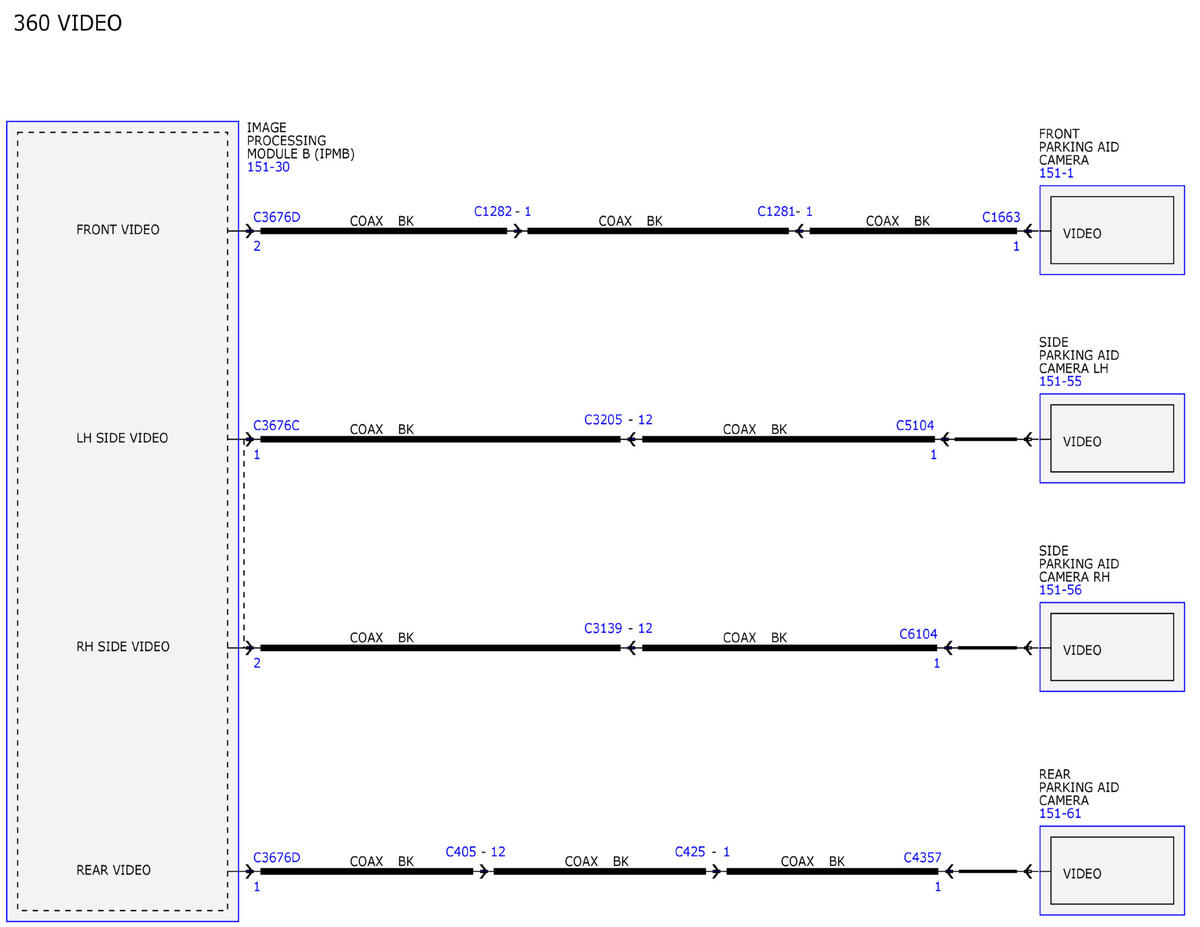

Fig 12: Parking Aid - Wiring Diagrams (12 Of 12)

GFDWR218741

Courtesy of FORD MOTOR COMPANY
