Remote Brake Fluid Reservoir: Removal

NOTE: Siphon the brake fluid from the HCU/EBB reservoir, if the reservoir is not emptied there will be a large amount of brake fluid spilled in the engine compartment.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille

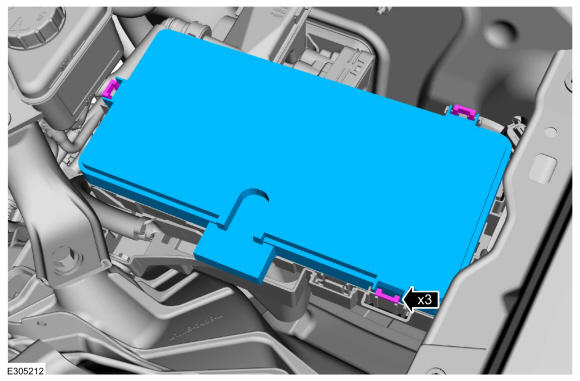

Release the tabs and remove the BCMC cover.

Courtesy of FORD MOTOR COMPANY

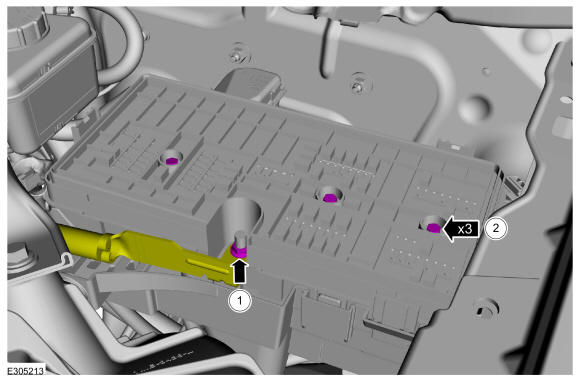

1. Remove the nut and position aside the cable aside.
  Torque: 106 lb.in (12 Nm)
2. Fully loosen the BCMC connector bolts.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY

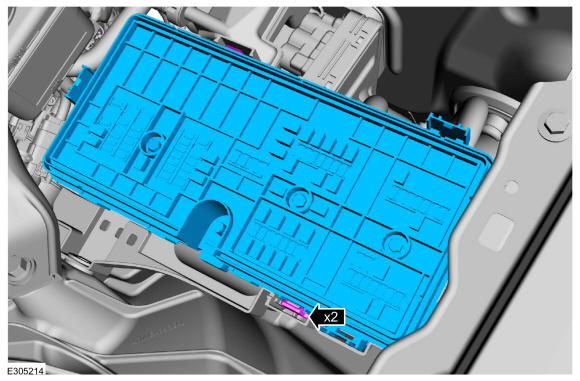

Release the tabs and remove the BCMC.

Courtesy of FORD MOTOR COMPANY

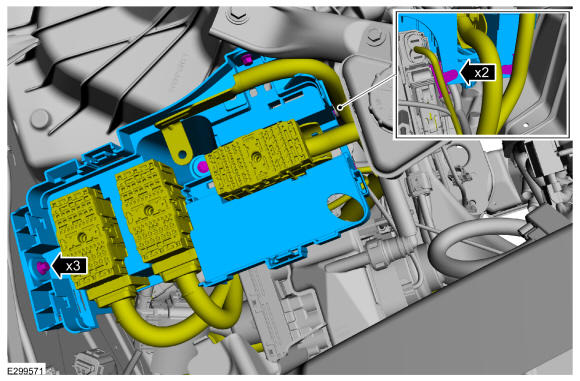

Remove the bolts, detach the wiring retainers and then remove the BCMC support bracket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.

NOTE: Be prepared to collect escaping fluid.

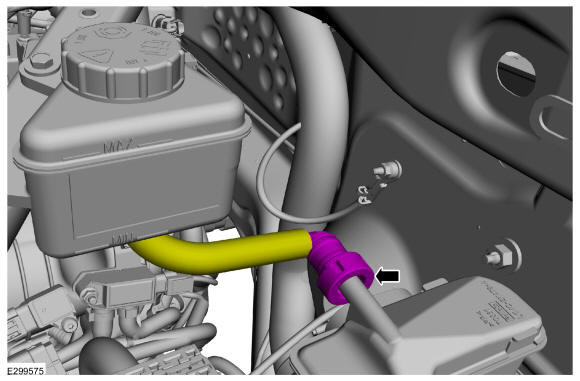

Disconnect the remote brake fluid reservoir tube and drain the fluid into a suitable container.

Courtesy of FORD MOTOR COMPANY

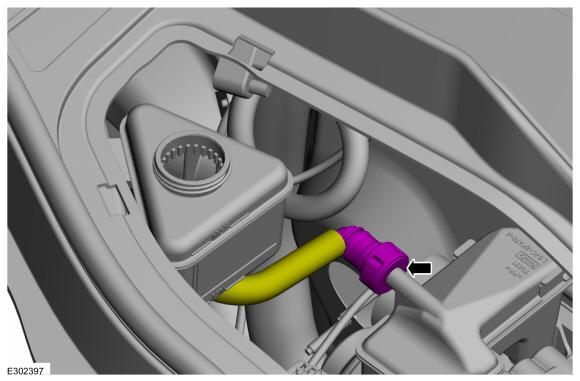

Remove the 2 bolts and the remote brake fluid reservoir.
Torque: 25 lb.in (2.8 Nm)

Courtesy of FORD MOTOR COMPANY
