LEMON Manuals
: Even more car manuals for everyone
Home
>>
Lincoln
>>
2023
>>
Aviator Base, RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Parking Aid - Vehicles With: Rear Parking Aid
>>
Description And Operation
>>
Parking Aid - System Operation and Component Description
>>
System Operation
>>
Parking Aid - Audible
Parking Aid - Audible

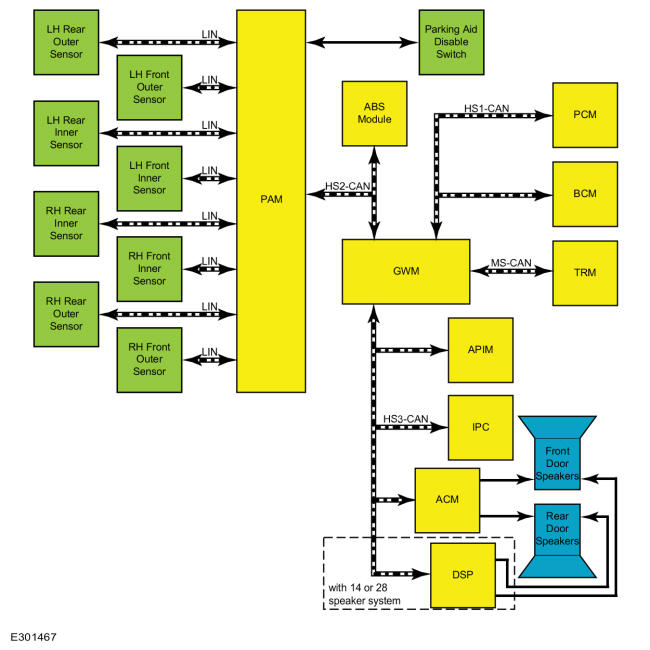

System Diagram - Without 360 Degree View Camera
Courtesy of FORD MOTOR COMPANY

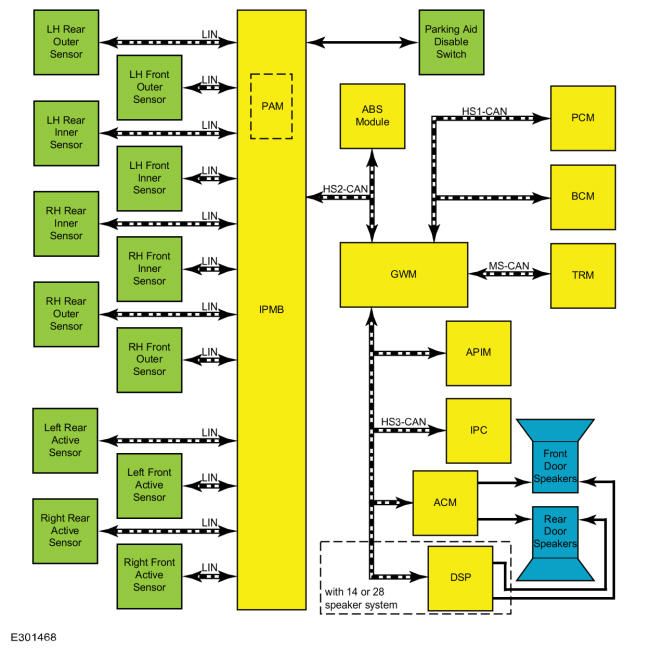

System Diagram - With 360 Degree View Camera
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
