Turbocharger RH: Installation

All vehicles

1. Install a new turbocharger end coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications - 3.0L EcoBoost, .

   Courtesy of FORD MOTOR COMPANY

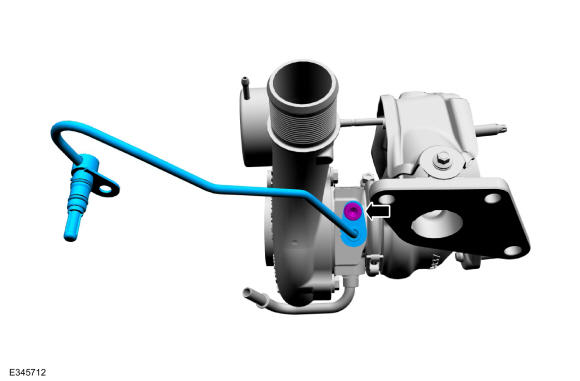

2. • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

     Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

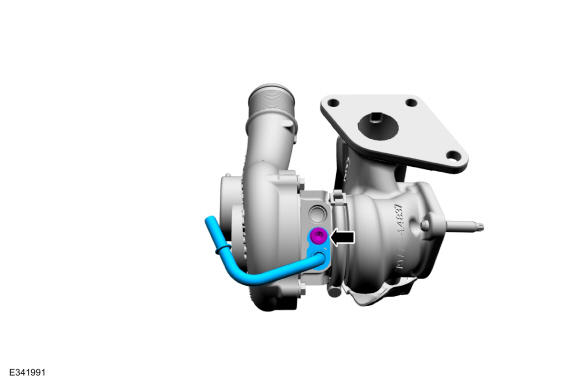

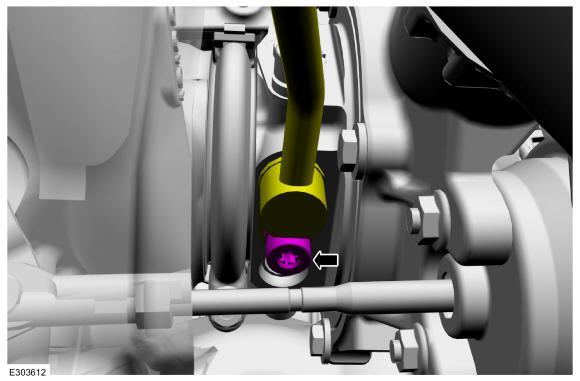

   • Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.

     Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

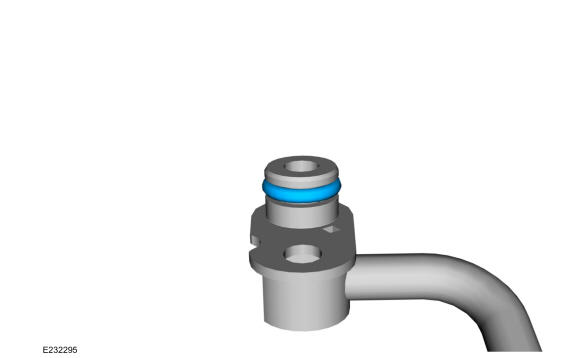

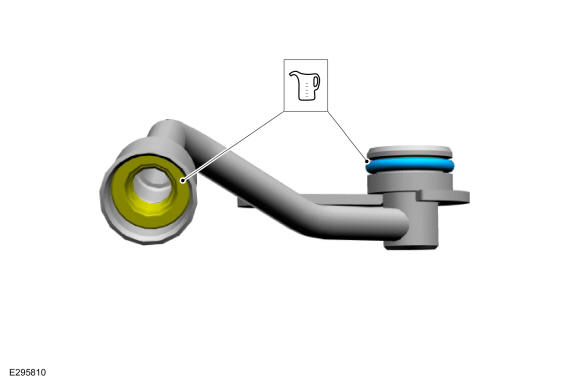

3. Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
   • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.
   • Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.

     Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

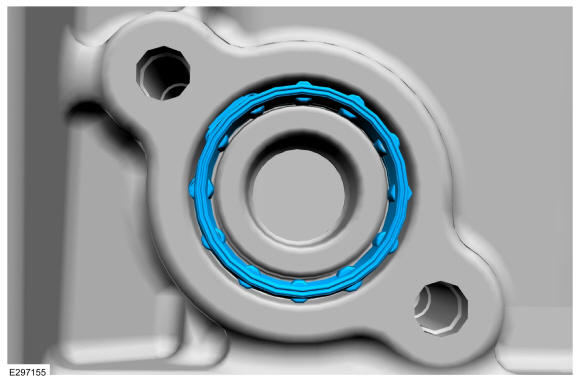

5. Install the new turbocharger oil return tube-to-engine block gasket.

   Courtesy of FORD MOTOR COMPANY

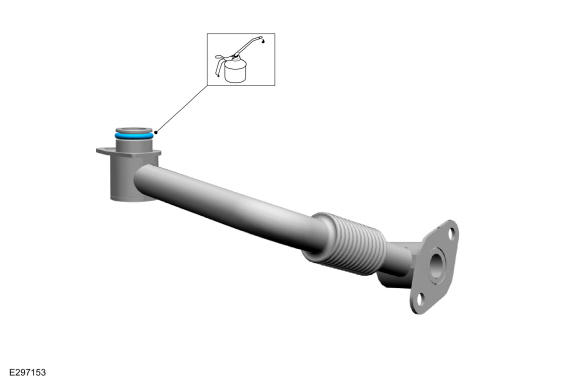

6. Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

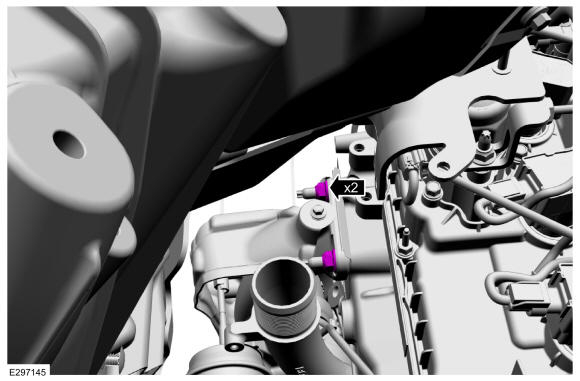

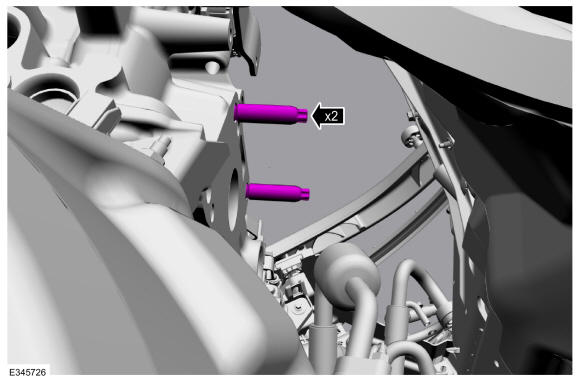

7. If removed, install and tighten the turbocharger studs

   Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

   LHD AWD

8. NOTE: Do not use a metal brush; damage to sealing area will result in leaks.
   • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

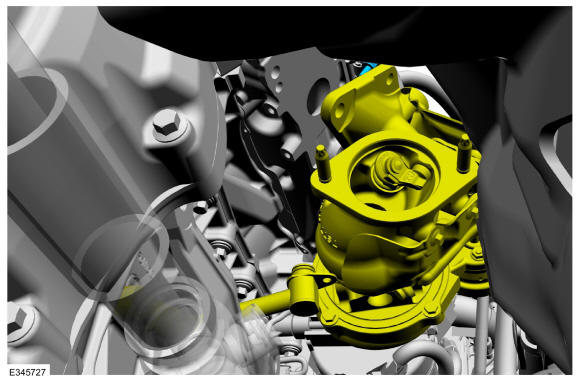

   • From under vehicle position the turbocharger towards the front of the vehicle.
   • Position the turbocharger oil return tube behind the axle bracket.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

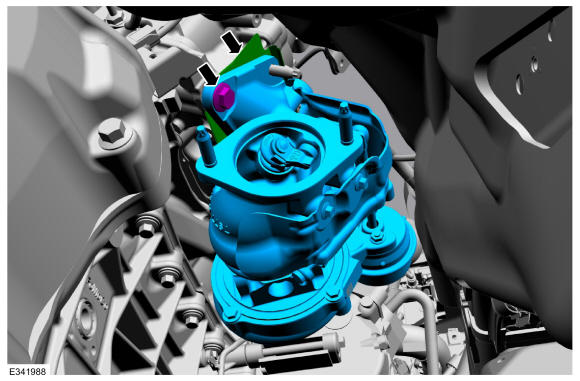

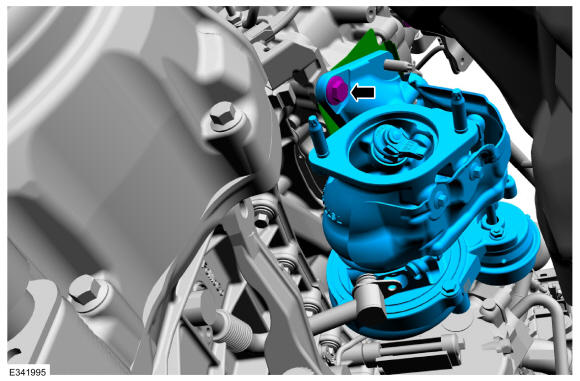

   Install the turbocharger, the new gasket, the bolt and the stud. Install the turbocharger coolant and oil supply tubes to the engine while installing the turbocharger.

   Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Courtesy of FORD MOTOR COMPANY

   LHD RWD

10. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

    Install the turbocharger, the new gasket, the bolt. Install the oil supply tube to the engine while installing the turbocharger.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

    All vehicles

11. Loosely install the turbocharger nuts.

    Courtesy of FORD MOTOR COMPANY

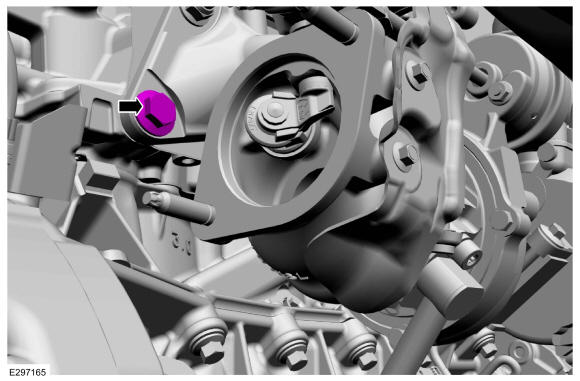

12. Tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    Courtesy of FORD MOTOR COMPANY

13. 1. Tighten the turbocharger nut.

       Torque: 44 lb.ft (60 Nm)

    2. Tighten the turbocharger nut.

       Torque: 27 lb.ft (37 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Re-tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    Courtesy of FORD MOTOR COMPANY

15. 1. Re-tighten the turbocharger nuts.

       Torque: 44 lb.ft (60 Nm)

    2. Re-tighten the turbocharger nut

       Torque: 27 lb.ft (37 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

16. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

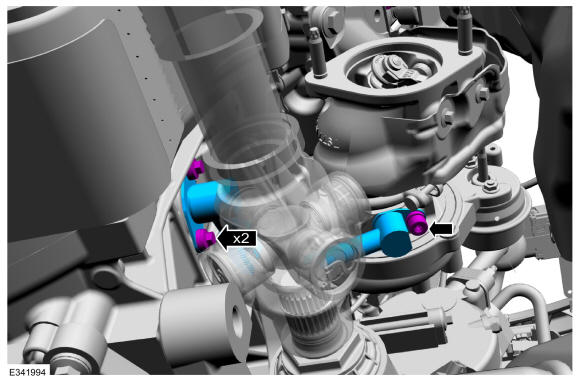

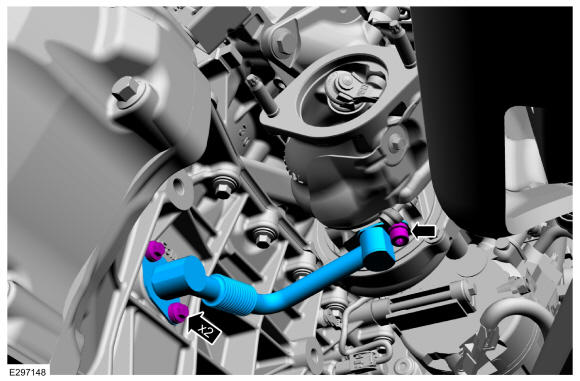

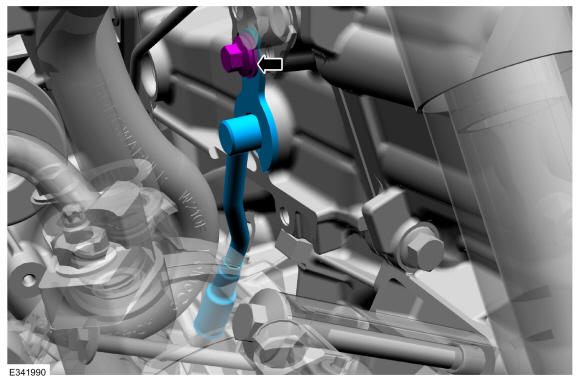

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

       Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

17. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.
    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

       Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

18. Install a new outer turbocharger coolant supply tube O-ring seal. Lubricate the O-ring seal and the rubber gasket with clean engine coolant. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

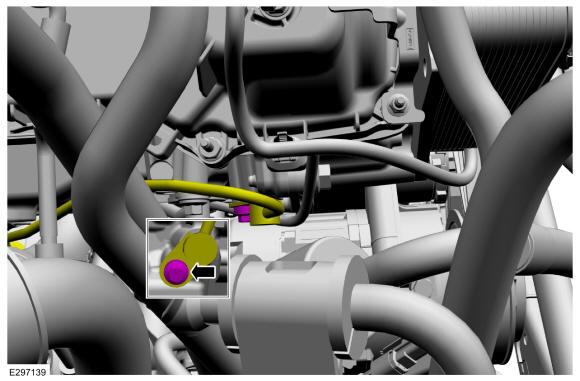

19. Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

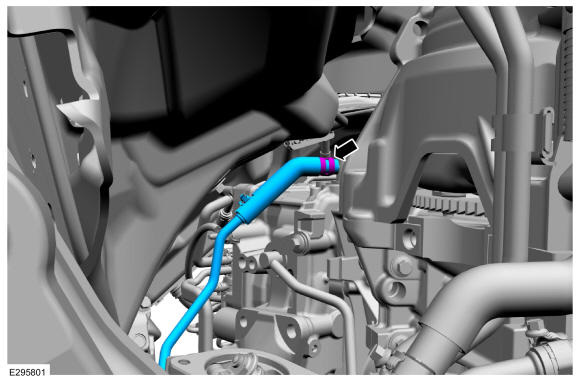

20. Connect the turbocharger wastegate control hose and clamp.

    Courtesy of FORD MOTOR COMPANY

21. Install a new turbocharger coolant return tube O-ring seal and lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

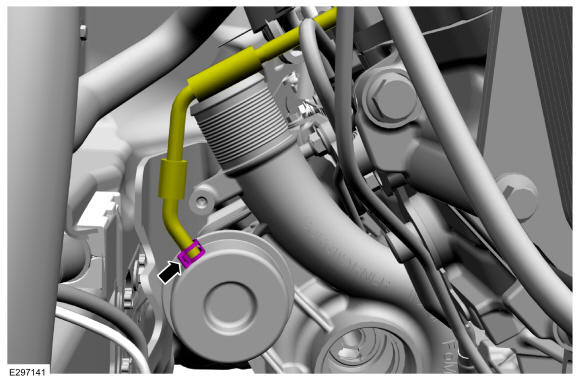

22. Install and connect the turbocharger coolant return tube and clamp.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.

       Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.

    Install the turbocharger oil supply tube to the engine, then install and tighten the turbocharger oil supply tube bolt.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

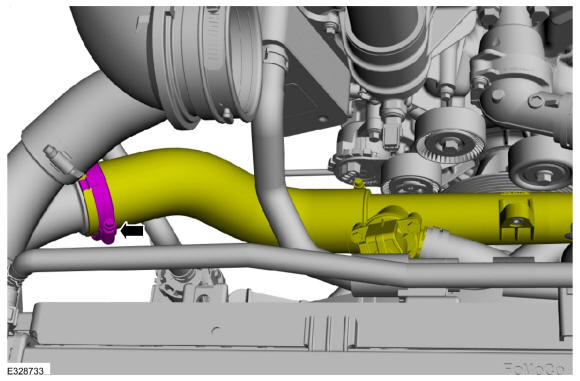

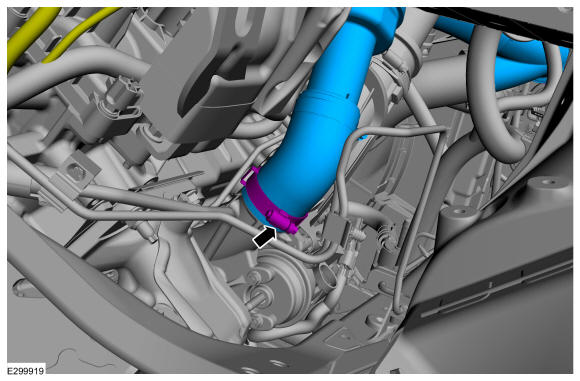

25. Install the RH CAC intake pipe, then tighten the clamp.

    Torque: 44 lb.in (5.0 Nm)

    Courtesy of FORD MOTOR COMPANY

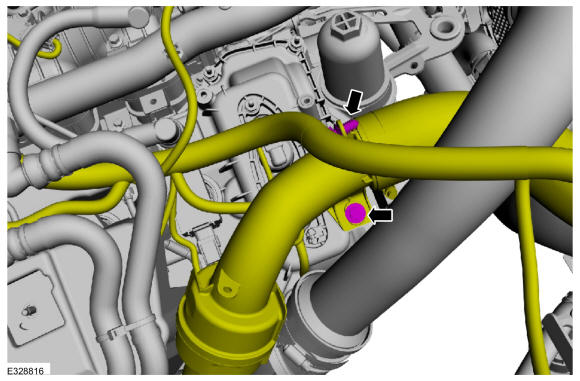

26. Install and tighten the bolt, then attach the wiring harness retainer.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

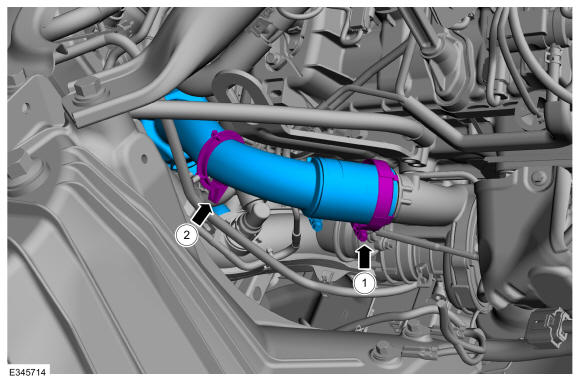

27. 1. Install the left charge air cooler intake pipe to the turbocharger, then tighten the clamp.

       Torque: 44 lb.in (5.0 Nm)

    2. Attach the hose retainer.

    Courtesy of FORD MOTOR COMPANY

28. Install the LH CAC intake pipe, then tighten the clamp.

    Torque: 44 lb.in (5.0 Nm)

    Courtesy of FORD MOTOR COMPANY

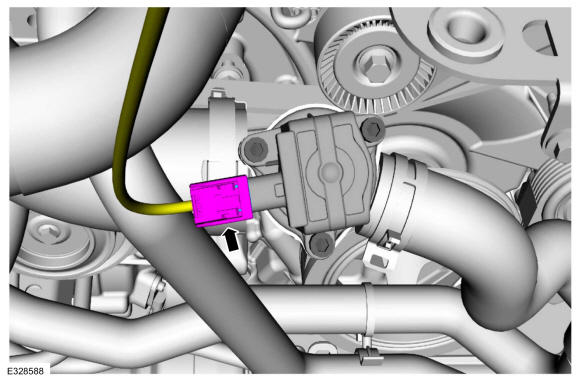

29. Connect the turbocharger bypass valve electrical connector.

    Courtesy of FORD MOTOR COMPANY

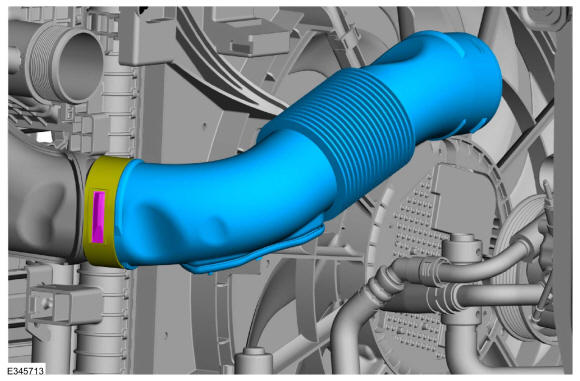

30. Install the air cleaner inlet pipe.

    Courtesy of FORD MOTOR COMPANY

31. Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
32. Position an adjustable jack stand under the transmission crossmember.

    Courtesy of FORD MOTOR COMPANY

33. Remove and discard the transmission crossmember bolts.

    Courtesy of FORD MOTOR COMPANY

34. Lower the jack stand 32 mm (1.25 in).

    Courtesy of FORD MOTOR COMPANY

35. Support the front and rear of the subframe with adjustable jack stands.

    Courtesy of FORD MOTOR COMPANY

36. • Remove the rear subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

37. • Remove the middle subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

38. • Remove the front subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

39. With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

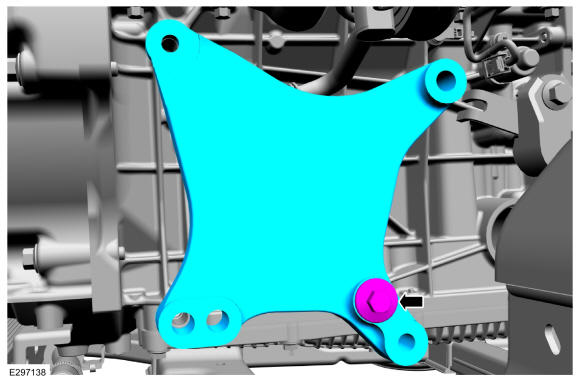

40. Install the right engine mount spacer, then install and tighten the bolts.

    Torque:Stage 1: Tighten to: : 66 lb.ft (90 Nm)Stage 2: Tighten an additional: : 90deg.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

41. Install the right engine mount. Refer to: Engine Mount RH - 3.0L EcoBoost, .
42. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding - 3.0L EcoBoost, . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding - 3.0L EcoBoost - Hybrid (BQ), .
43. Check and top off the engine oil level as needed. Refer to: Specifications .
44. If a new turbocharger was installed, road test the vehicle.
