Turbocharger - Component Location

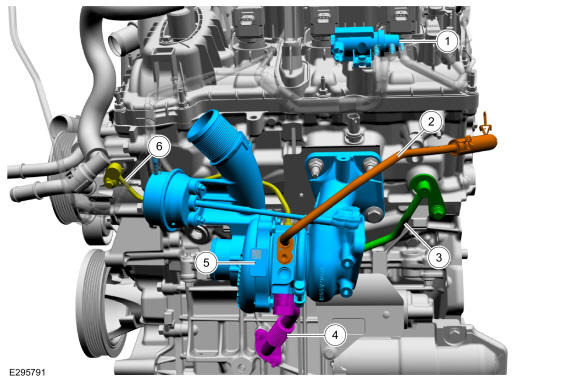

Turbocharger 3.0L EcoBoost LH
| Item | Description |
|---|---|
| 1 | Wastegate control valve solenoid |
| 2 | Turbocharger coolant return tube LH |
| 3 | Turbocharger coolant supply tube LH |
| 4 | Turbocharger oil return tube LH |
| 5 | Turbocharger LH |
| 6 | Turbocharger oil supply tube LH |

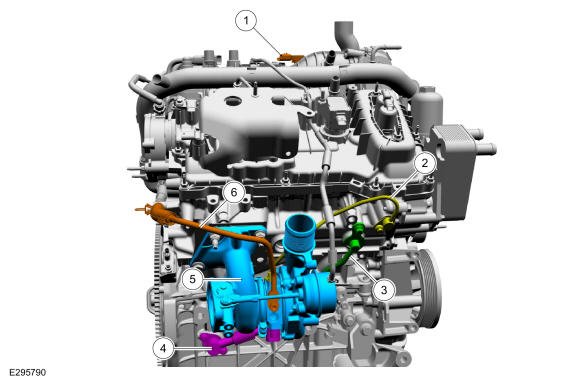

Turbocharger 3.0L EcoBoost RH
| Item | Description |
|---|---|
| 1 | Wastegate vacuum sensor |
| 2 | Turbocharger oil supply tube RH |
| 3 | Turbocharger coolant supply tube RH |
| 4 | Turbocharger oil return tube RH |
| 5 | Turbocharger RH |
| 6 | Turbocharger coolant return tube RH |

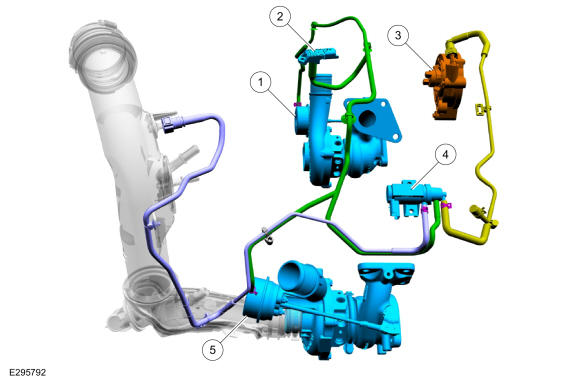

3.0L EcoBoost Turbocharger Controls
| Item | Description |
|---|---|
| 1 | Turbocharger RH |
| 2 | Wastegate vacuum sensor |
| 3 | Vacuum pump |
| 4 | Wastegate control valve solenoid |
| 5 | Turbocharger LH |
