Cluster and Panel Illumination

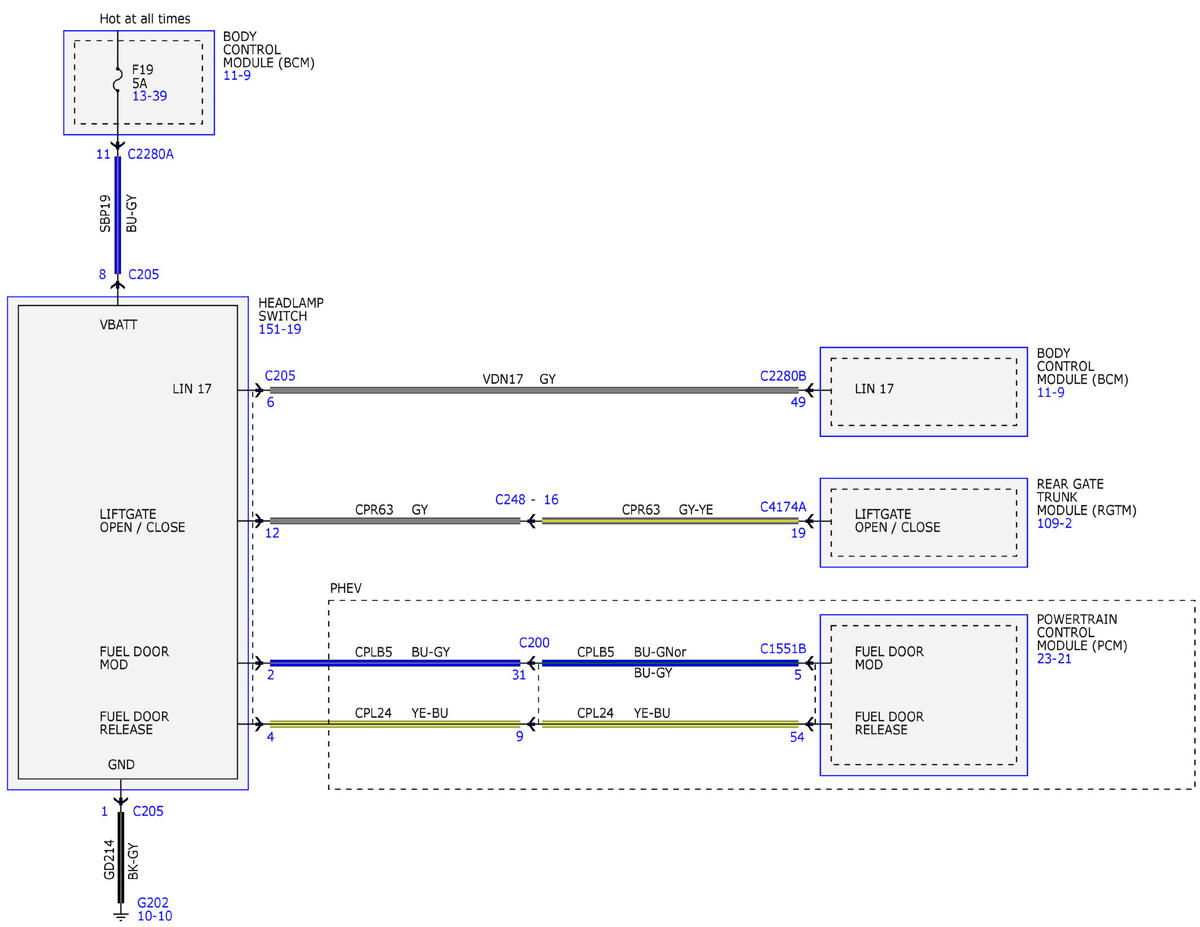

Fig 1: Cluster and Panel Illumination - Wiring Diagrams (1 Of 11)
GFDWR218598Courtesy of FORD MOTOR COMPANY

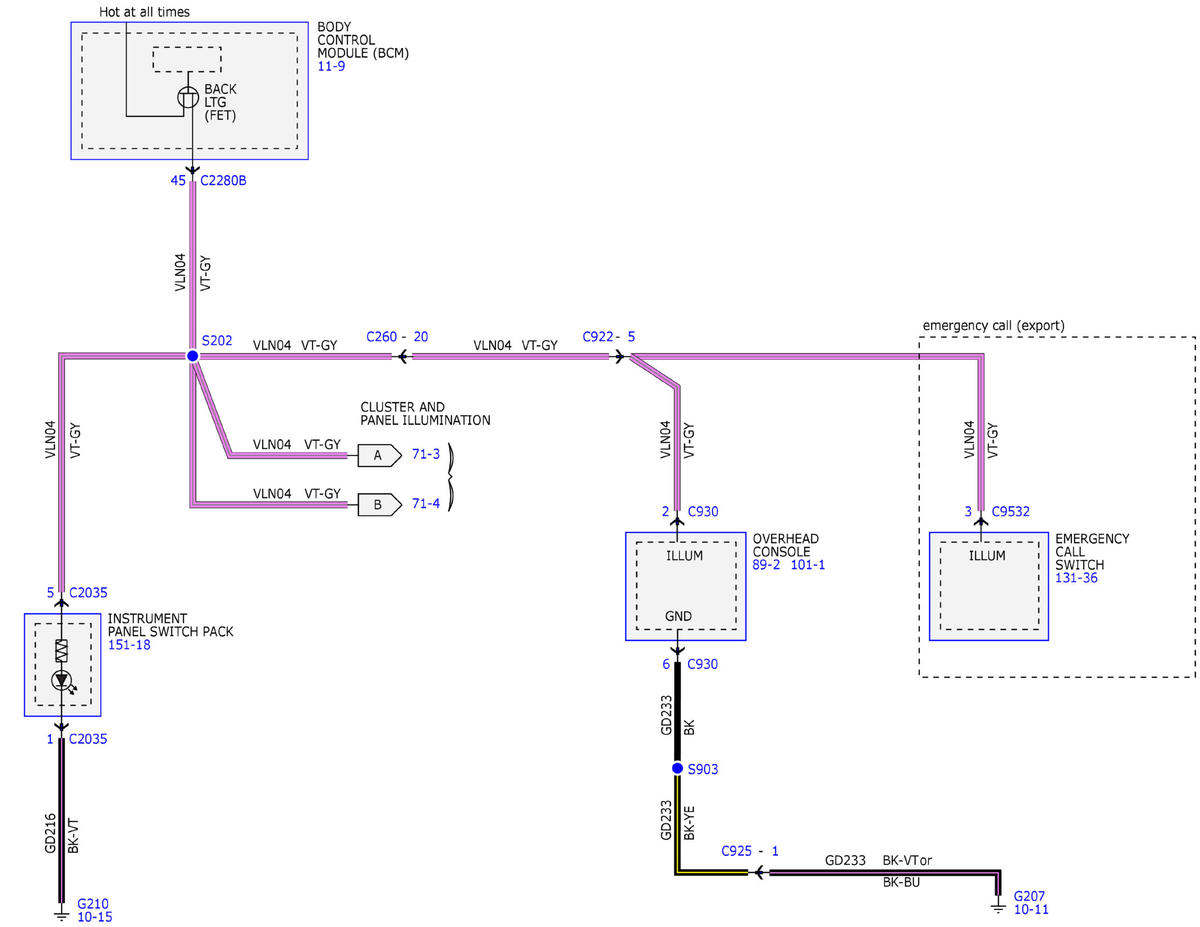

Fig 2: Cluster and Panel Illumination - Wiring Diagrams (2 Of 11)
GFDWR218601Courtesy of FORD MOTOR COMPANY

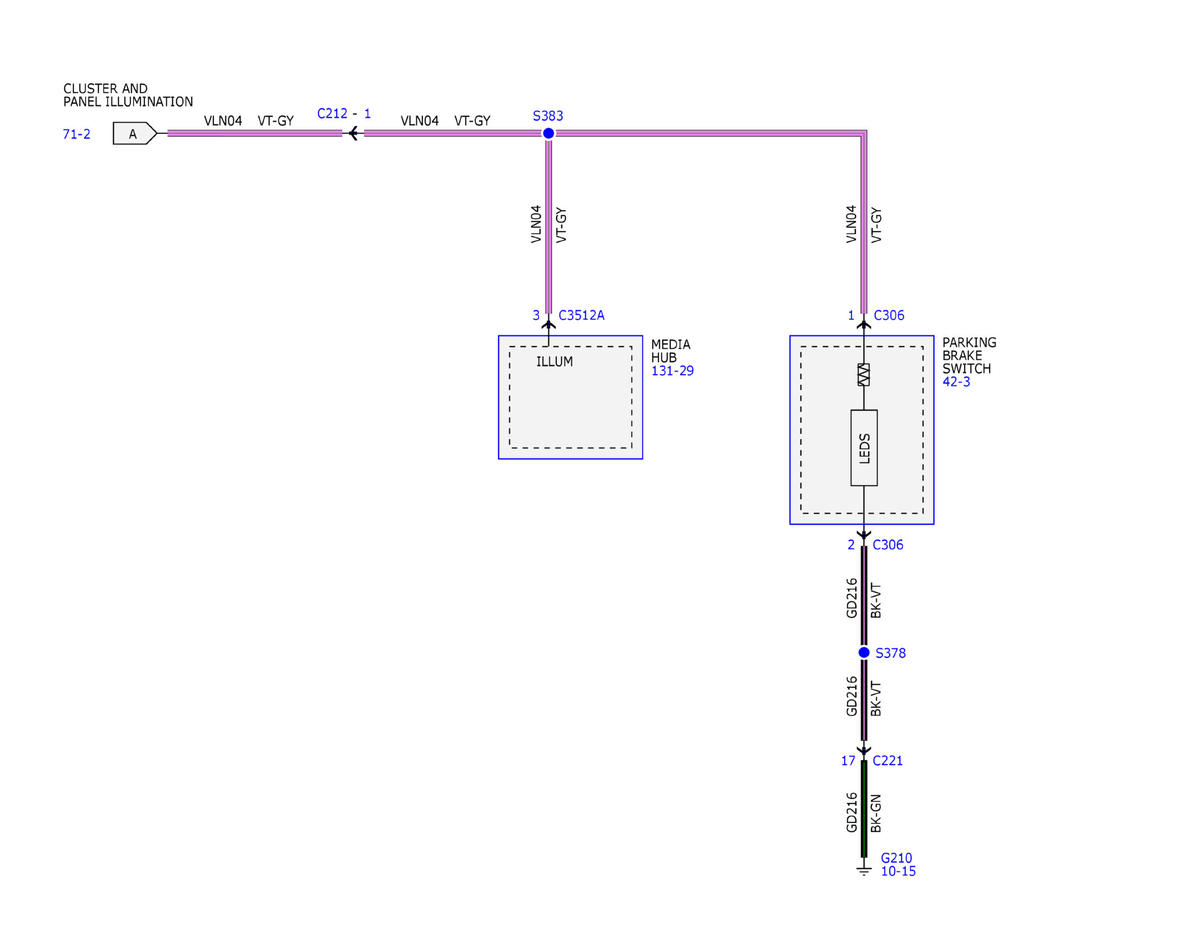

Fig 3: Cluster and Panel Illumination - Wiring Diagrams (3 Of 11)
GFDWR218602Courtesy of FORD MOTOR COMPANY

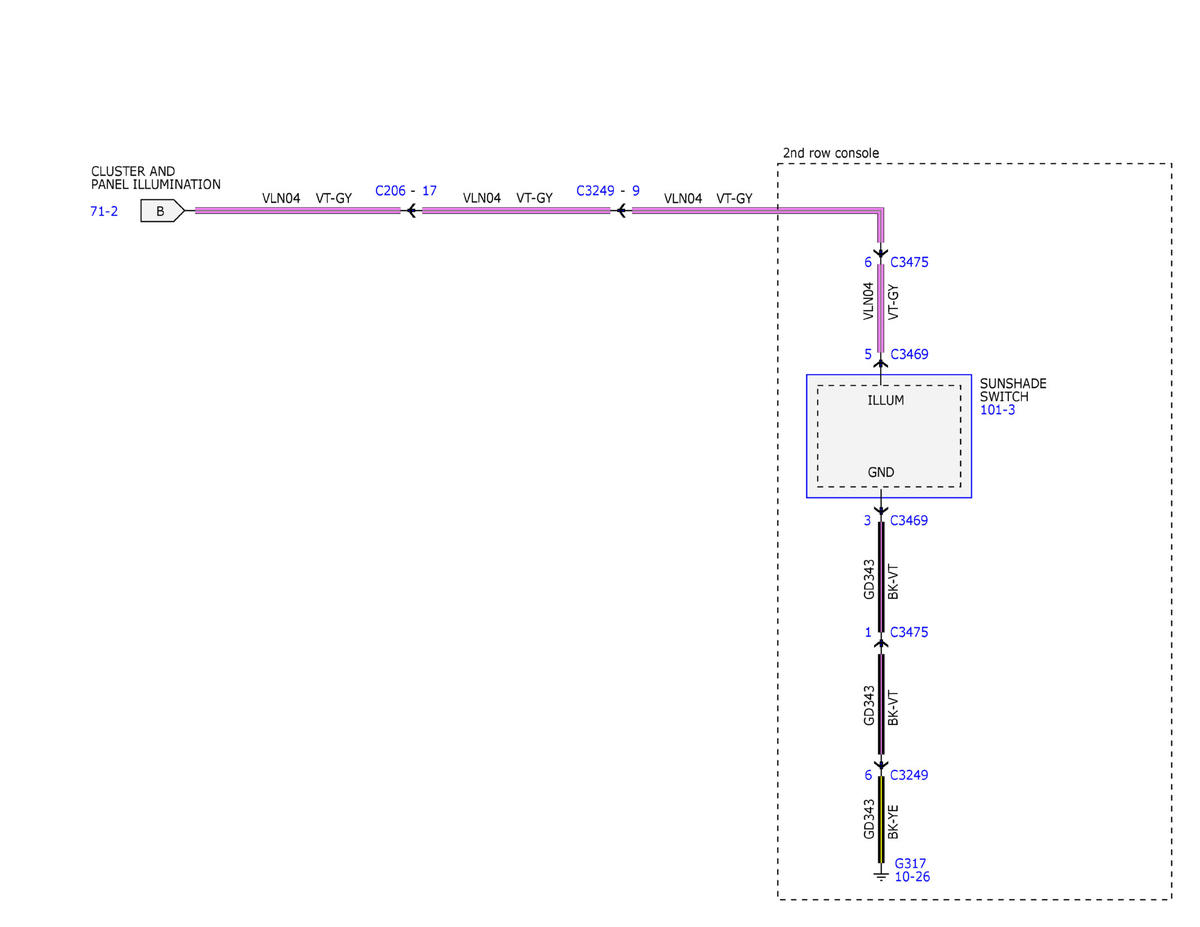

Fig 4: Cluster and Panel Illumination - Wiring Diagrams (4 Of 11)
GFDWR218603Courtesy of FORD MOTOR COMPANY

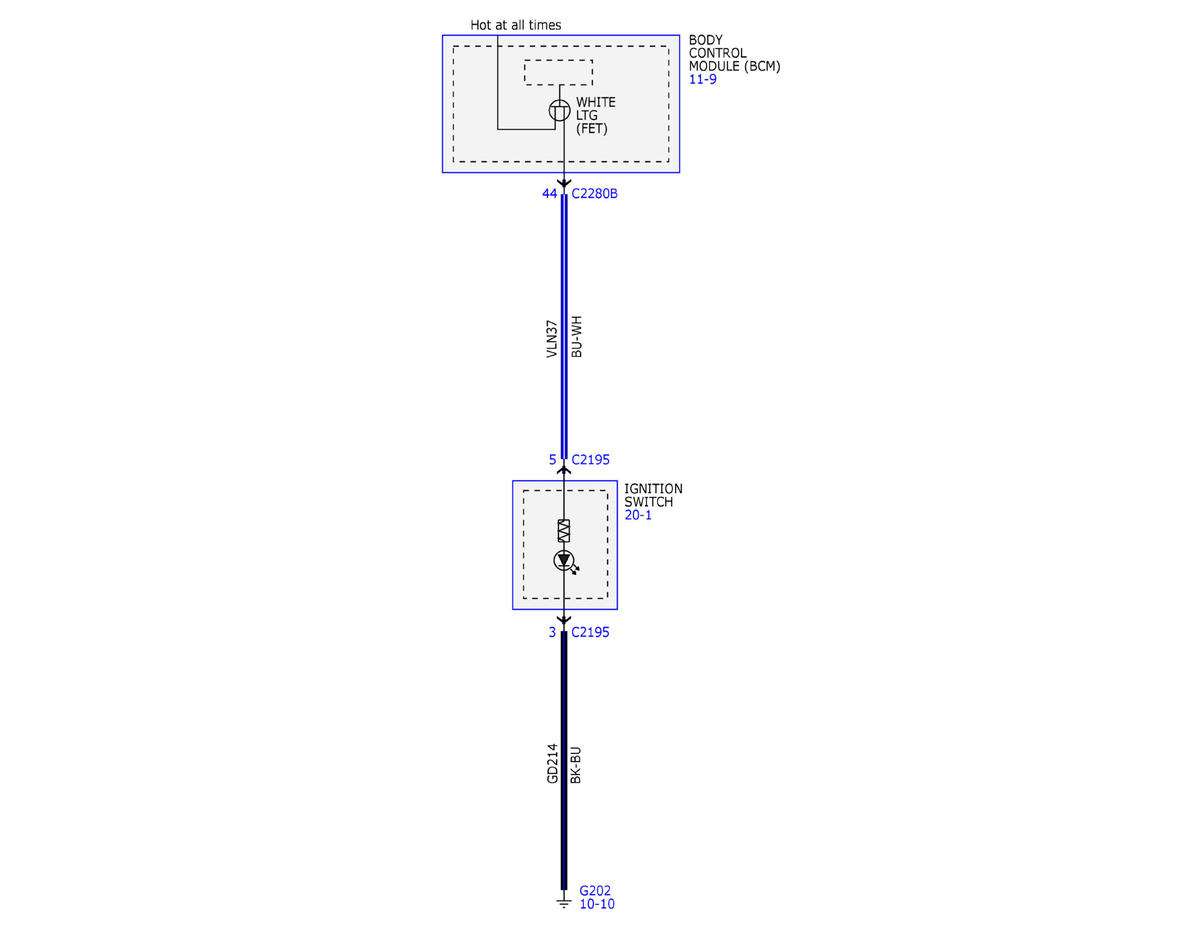

Fig 5: Cluster and Panel Illumination - Wiring Diagrams (5 Of 11)
GFDWR218604Courtesy of FORD MOTOR COMPANY

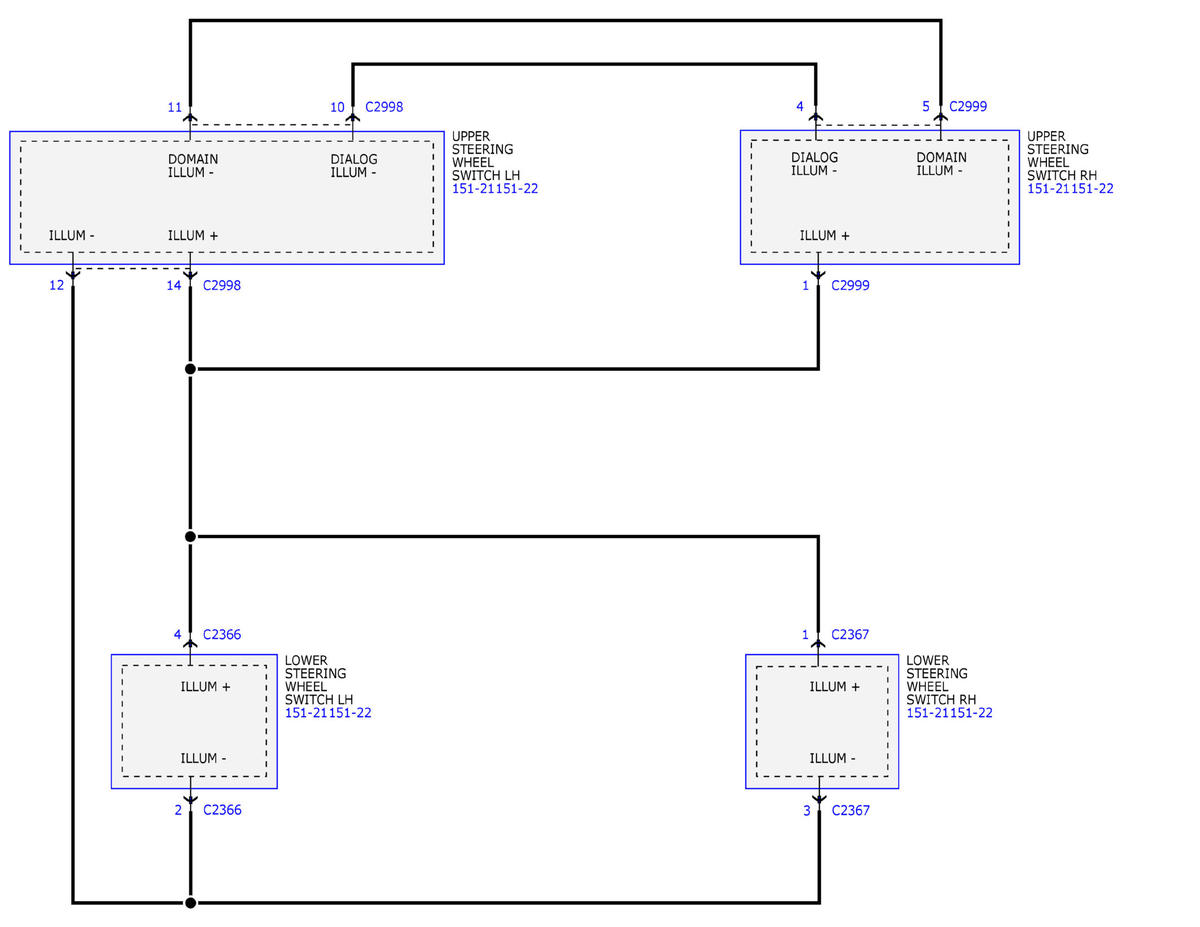

Fig 6: Cluster and Panel Illumination - Wiring Diagrams (6 Of 11)
GFDWR218605Courtesy of FORD MOTOR COMPANY

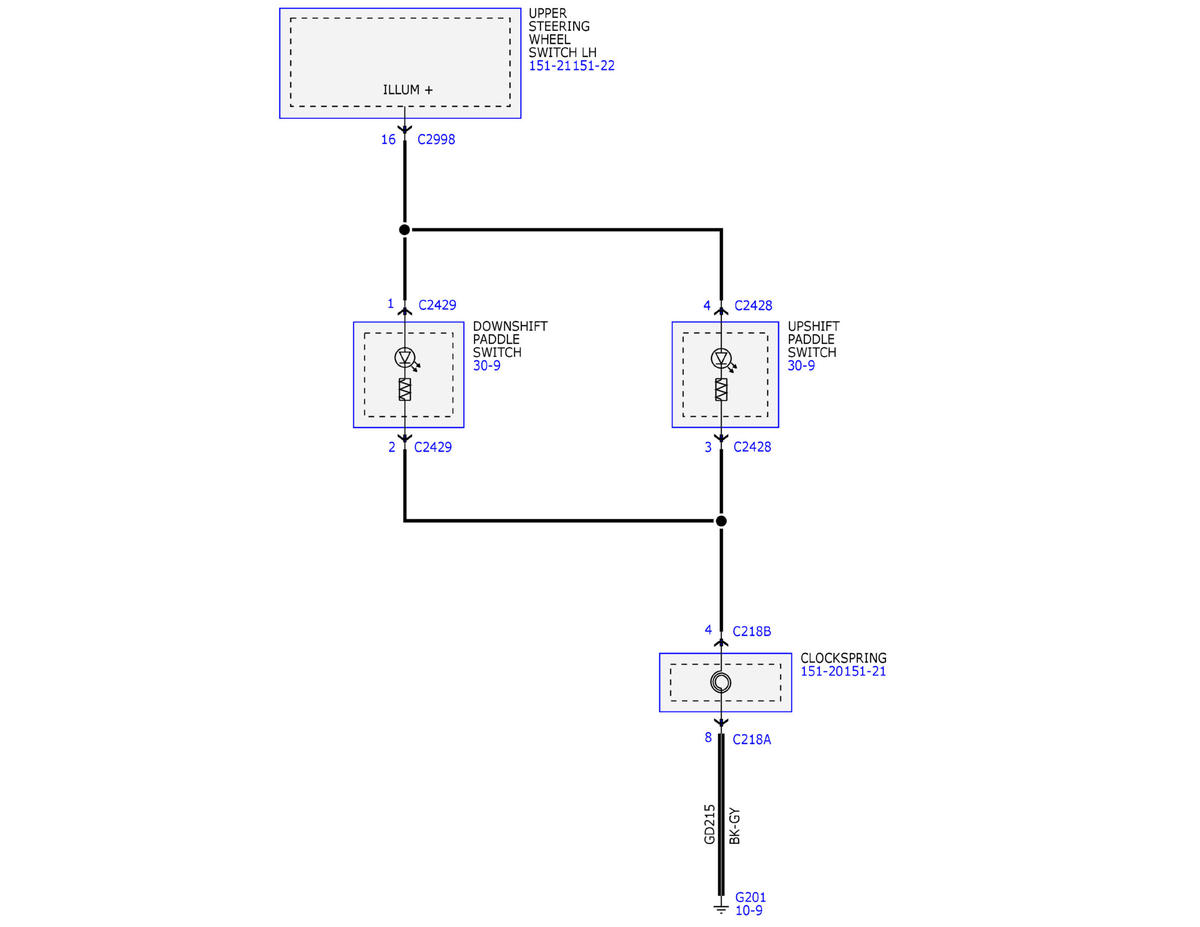

Fig 7: Cluster and Panel Illumination - Wiring Diagrams (7 Of 11)
GFDWR218606Courtesy of FORD MOTOR COMPANY

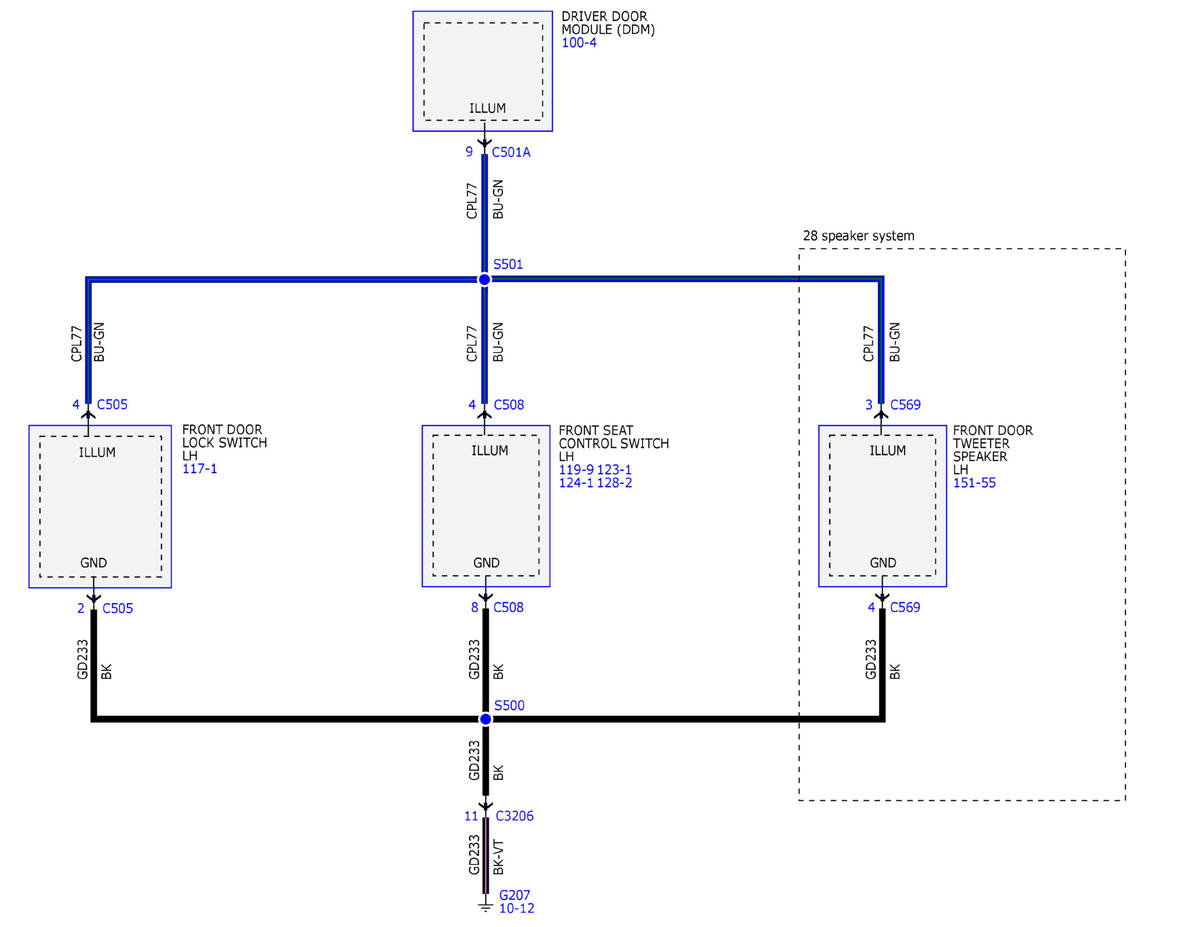

Fig 8: Cluster and Panel Illumination - Wiring Diagrams (8 Of 11)
GFDWR218607Courtesy of FORD MOTOR COMPANY

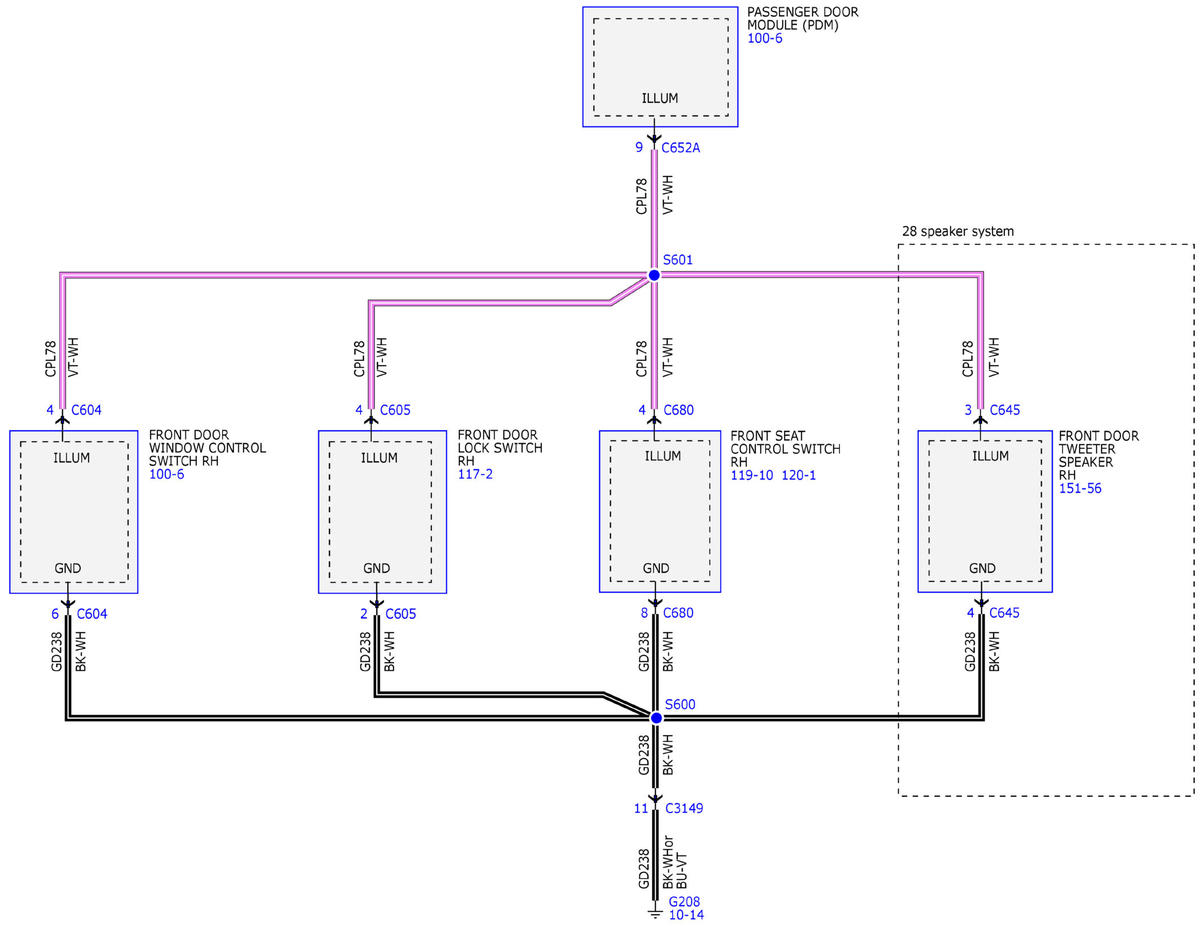

Fig 9: Cluster and Panel Illumination - Wiring Diagrams (9 Of 11)
GFDWR218608Courtesy of FORD MOTOR COMPANY

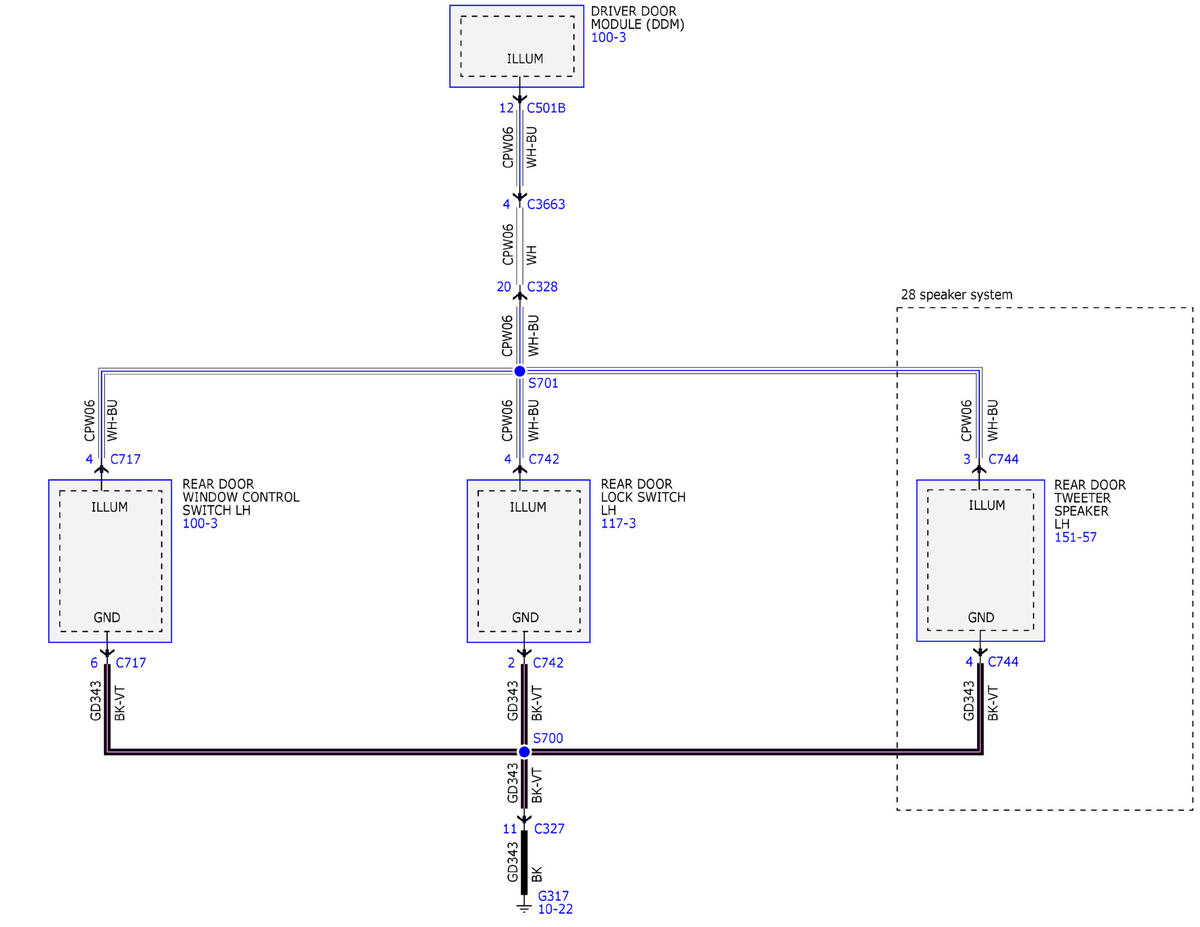

Fig 10: Cluster and Panel Illumination - Wiring Diagrams (10 Of 11)
GFDWR218599Courtesy of FORD MOTOR COMPANY
Fig 11: Cluster and Panel Illumination - Wiring Diagrams (11 Of 11)
GFDWR218600Courtesy of FORD MOTOR COMPANY
