Audio System/Navigation - SYNC

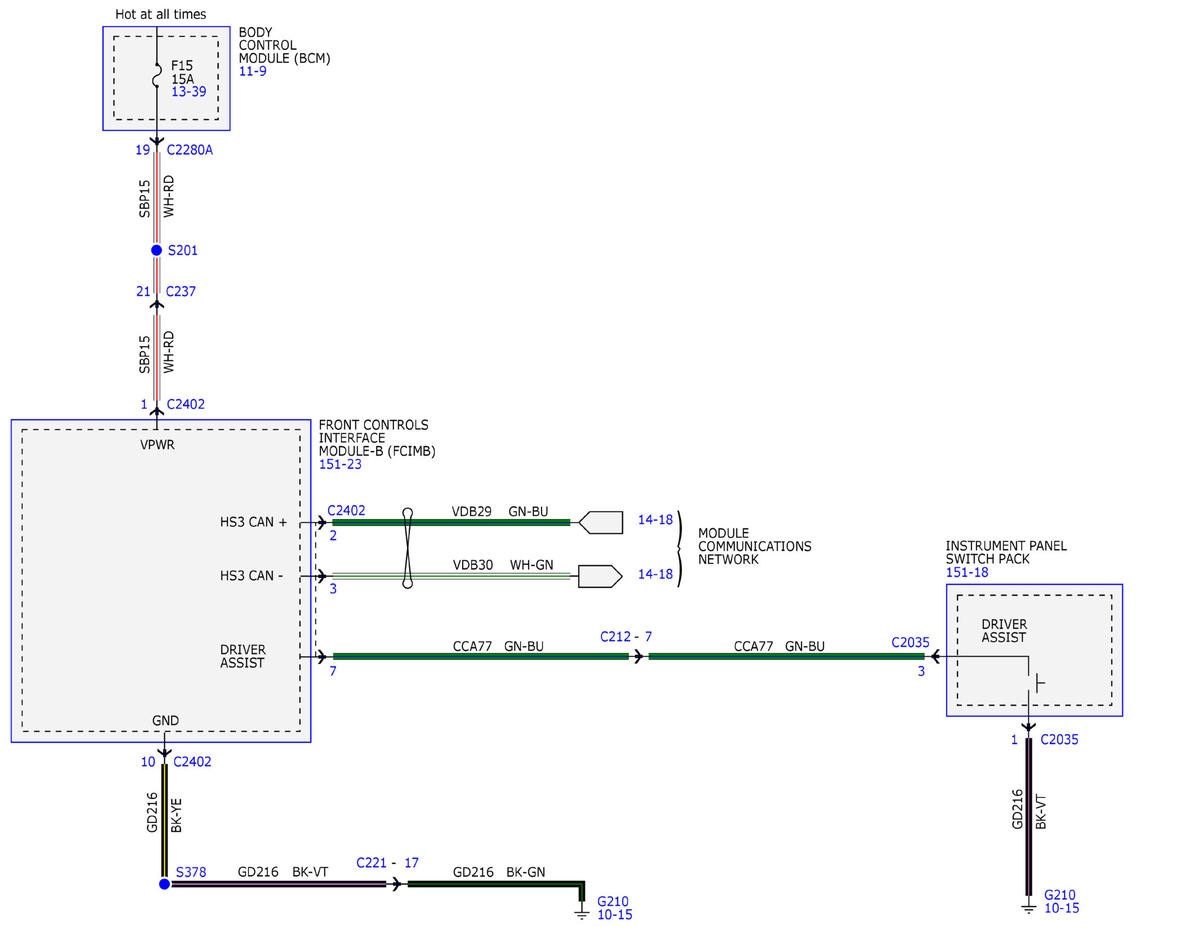

Fig 1: Audio System / Navigation - Sync Wiring Diagram (1 Of 37)

GFDWR218509

Courtesy of FORD MOTOR COMPANY

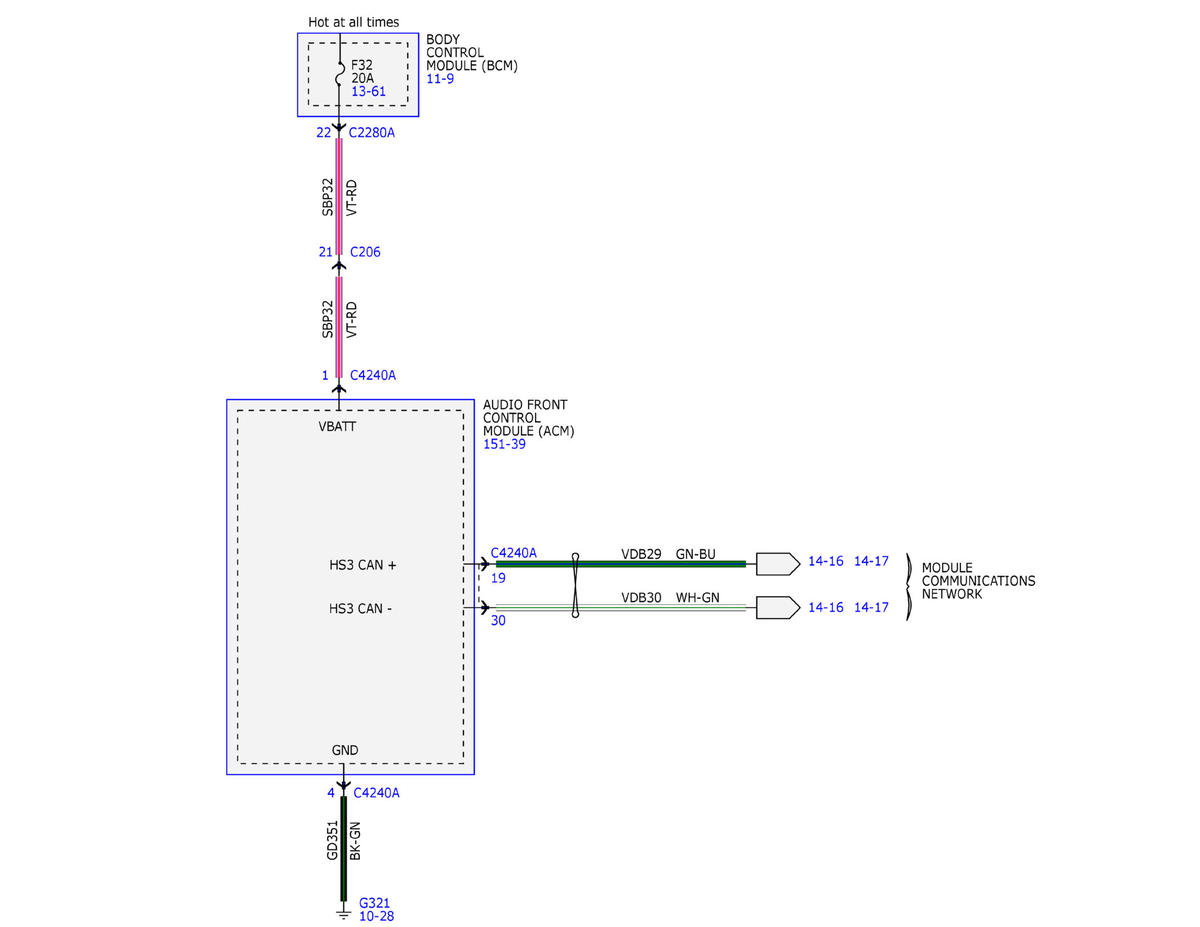

Fig 2: Audio System / Navigation - Sync Wiring Diagram (2 Of 37)

GFDWR218520

Courtesy of FORD MOTOR COMPANY

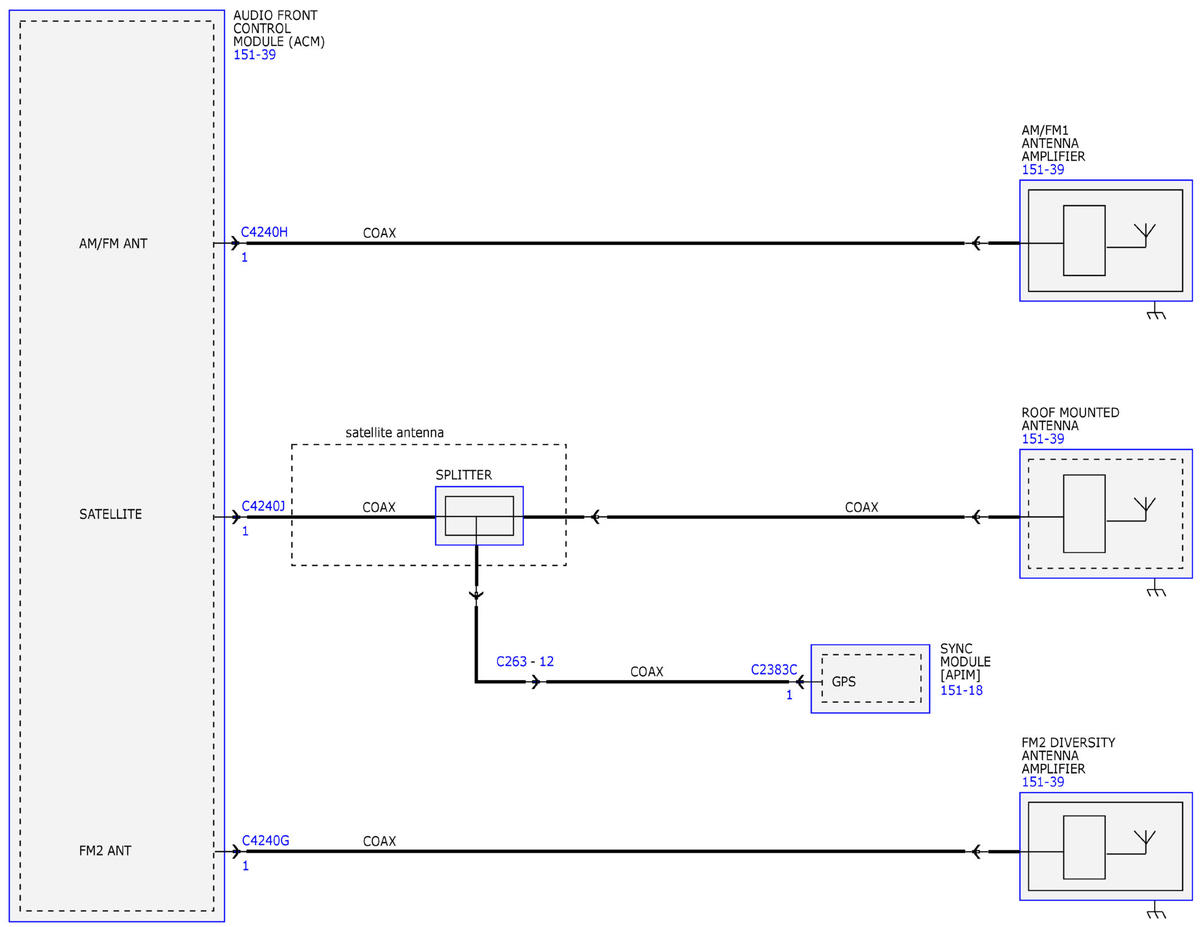

Fig 3: Audio System / Navigation - Sync Wiring Diagram (3 Of 37)

GFDWR218531

Courtesy of FORD MOTOR COMPANY

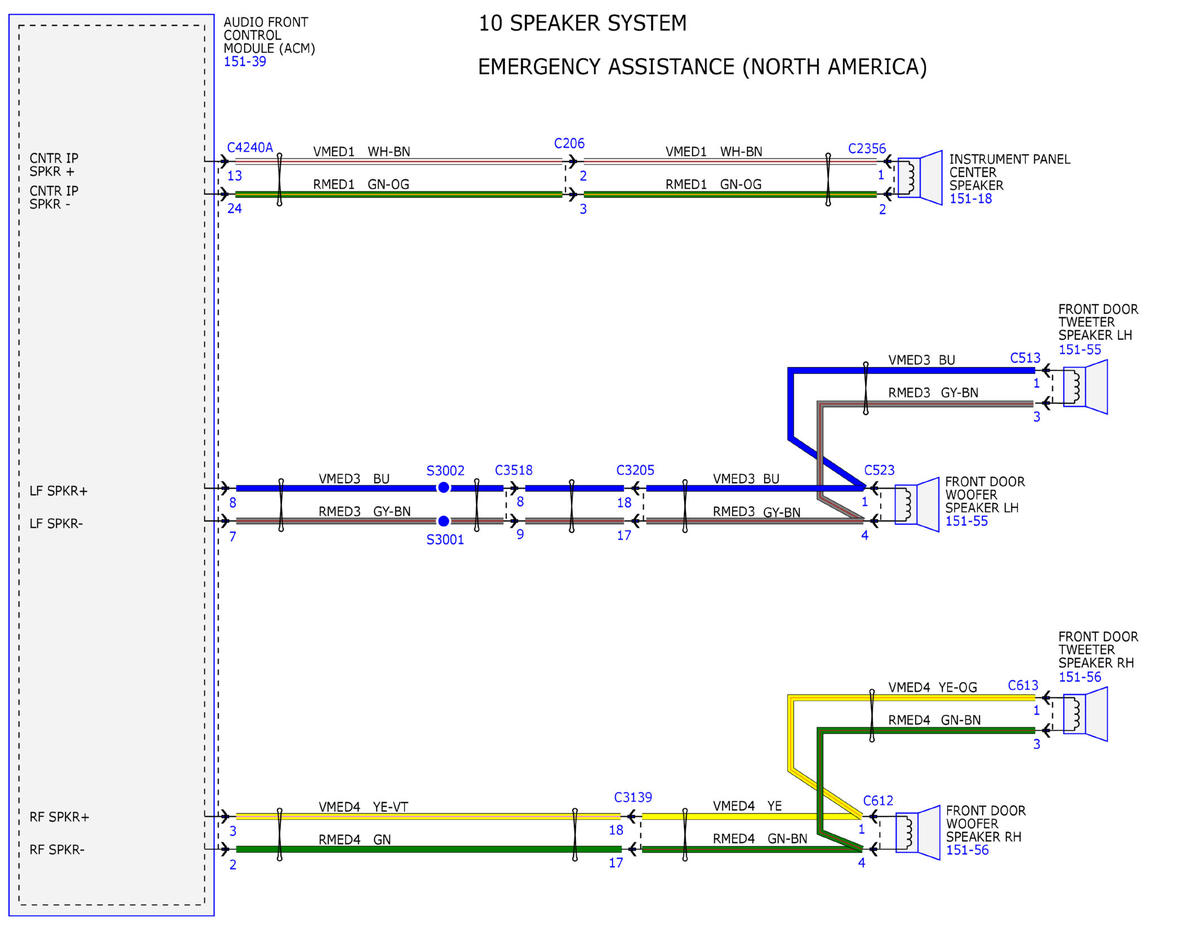

Fig 4: Audio System / Navigation - Sync Wiring Diagram (4 Of 37)

GFDWR218540

Courtesy of FORD MOTOR COMPANY

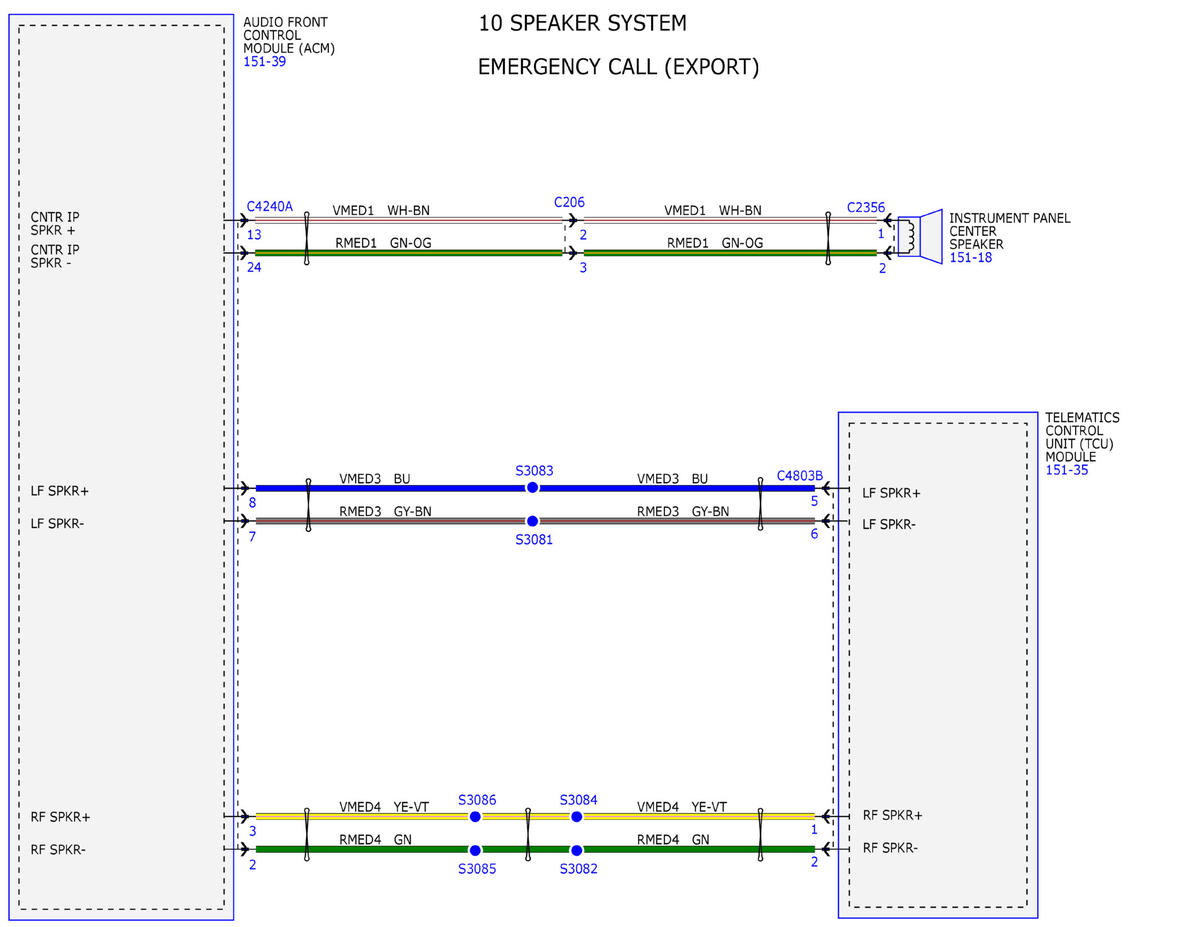

Fig 5: Audio System / Navigation - Sync Wiring Diagram (5 Of 37)

GFDWR218541

Courtesy of FORD MOTOR COMPANY

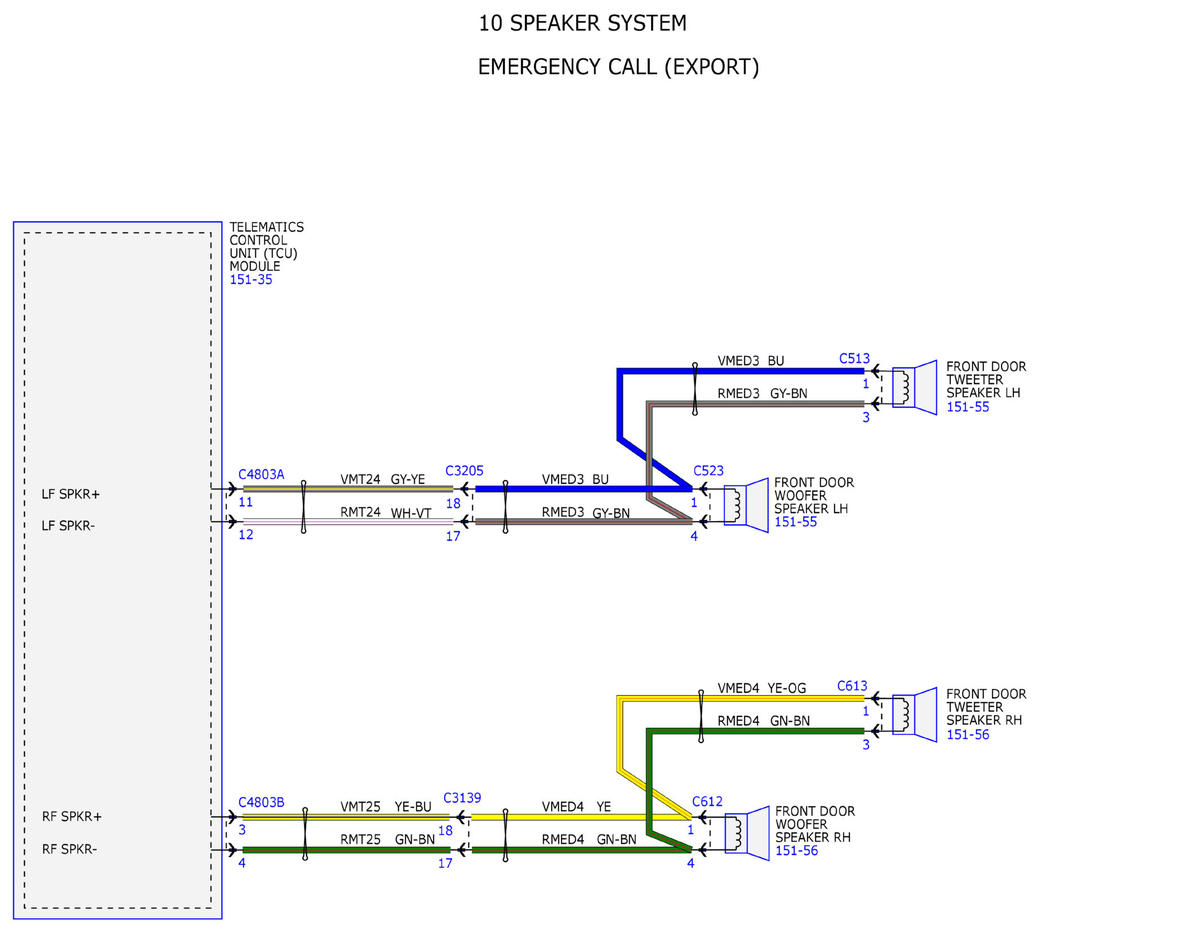

Fig 6: Audio System / Navigation - Sync Wiring Diagram (6 Of 37)

GFDWR218542

Courtesy of FORD MOTOR COMPANY

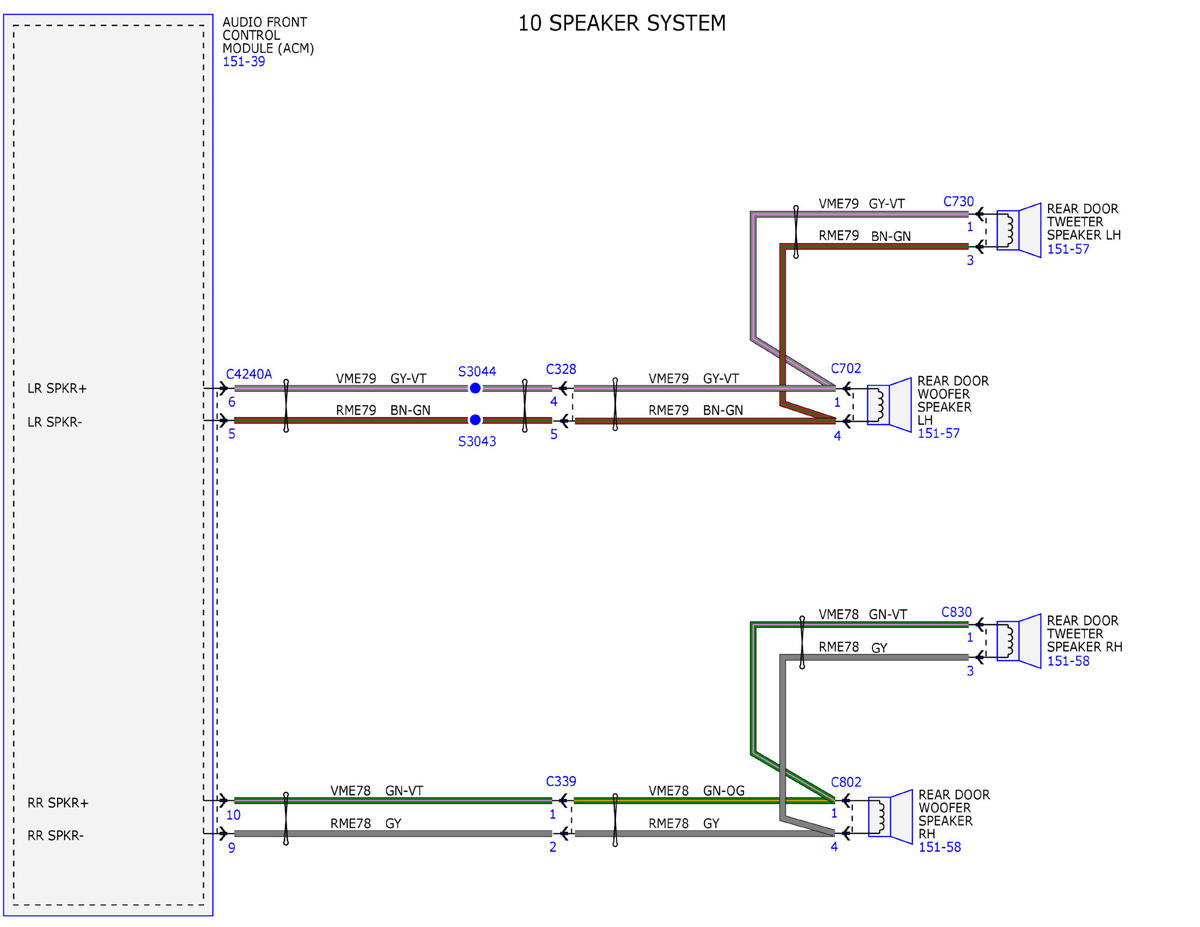

Fig 7: Audio System / Navigation - Sync Wiring Diagram (7 Of 37)

GFDWR218543

Courtesy of FORD MOTOR COMPANY

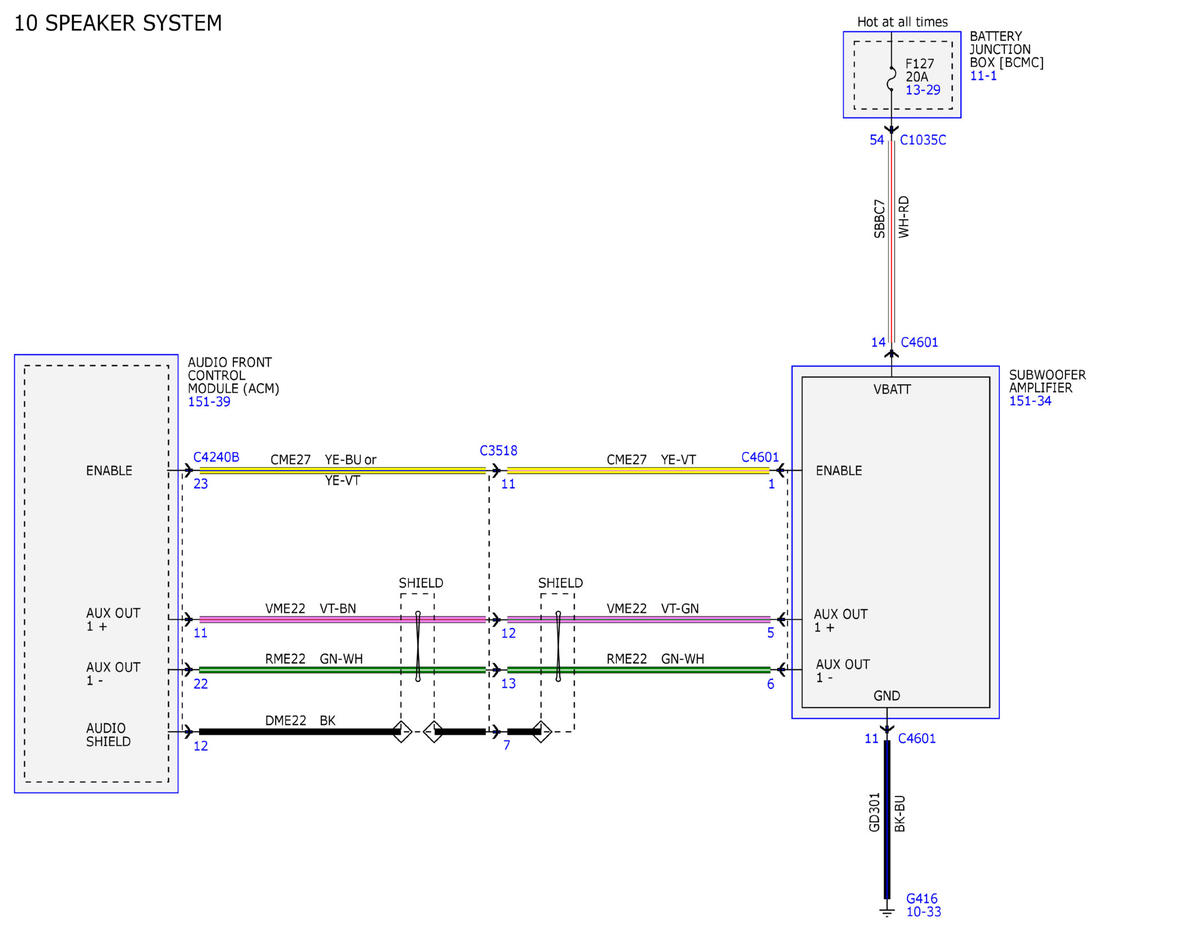

Fig 8: Audio System / Navigation - Sync Wiring Diagram (8 Of 37)

GFDWR218544

Courtesy of FORD MOTOR COMPANY

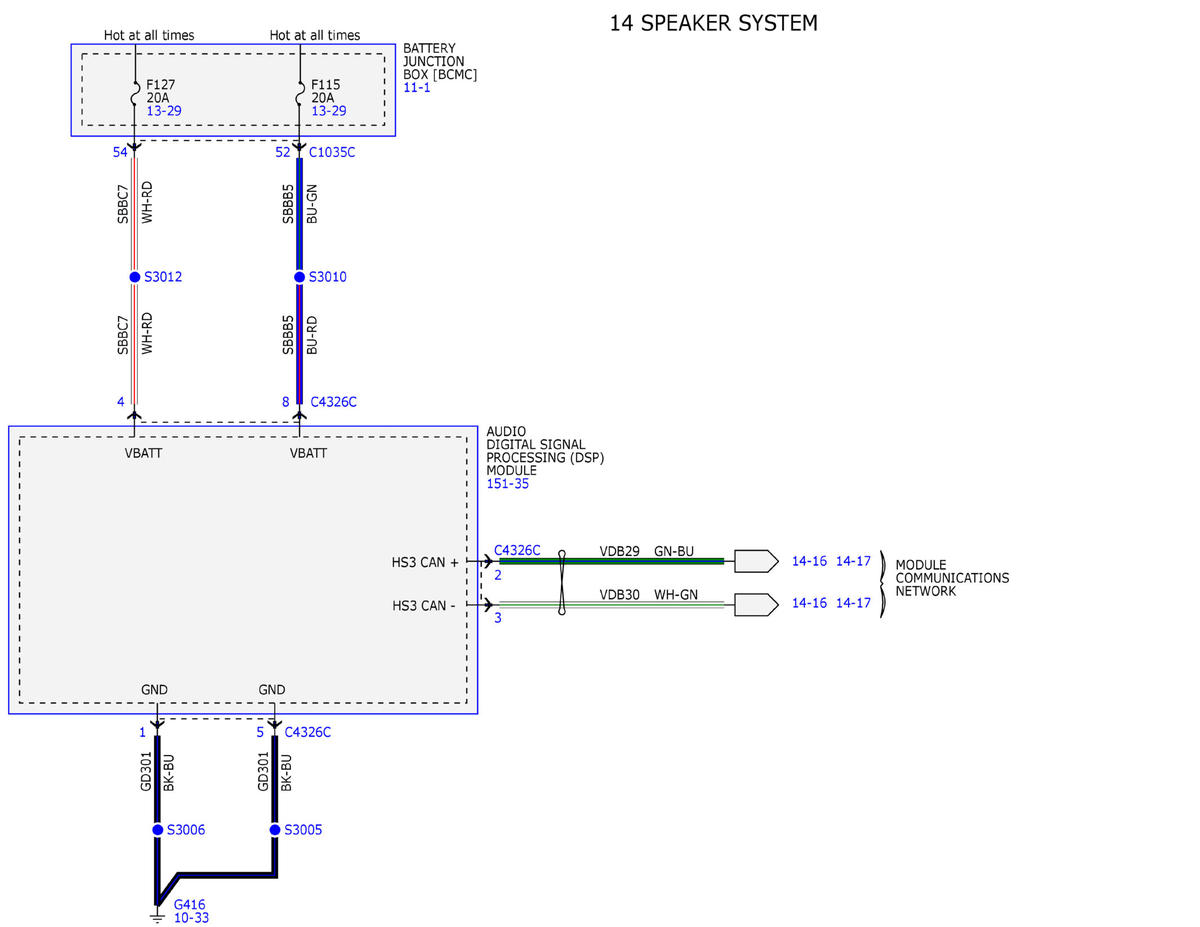

Fig 9: Audio System / Navigation - Sync Wiring Diagram (9 Of 37)

GFDWR218545

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System / Navigation - Sync Wiring Diagram (10 Of 37)

GFDWR218510

Courtesy of FORD MOTOR COMPANY

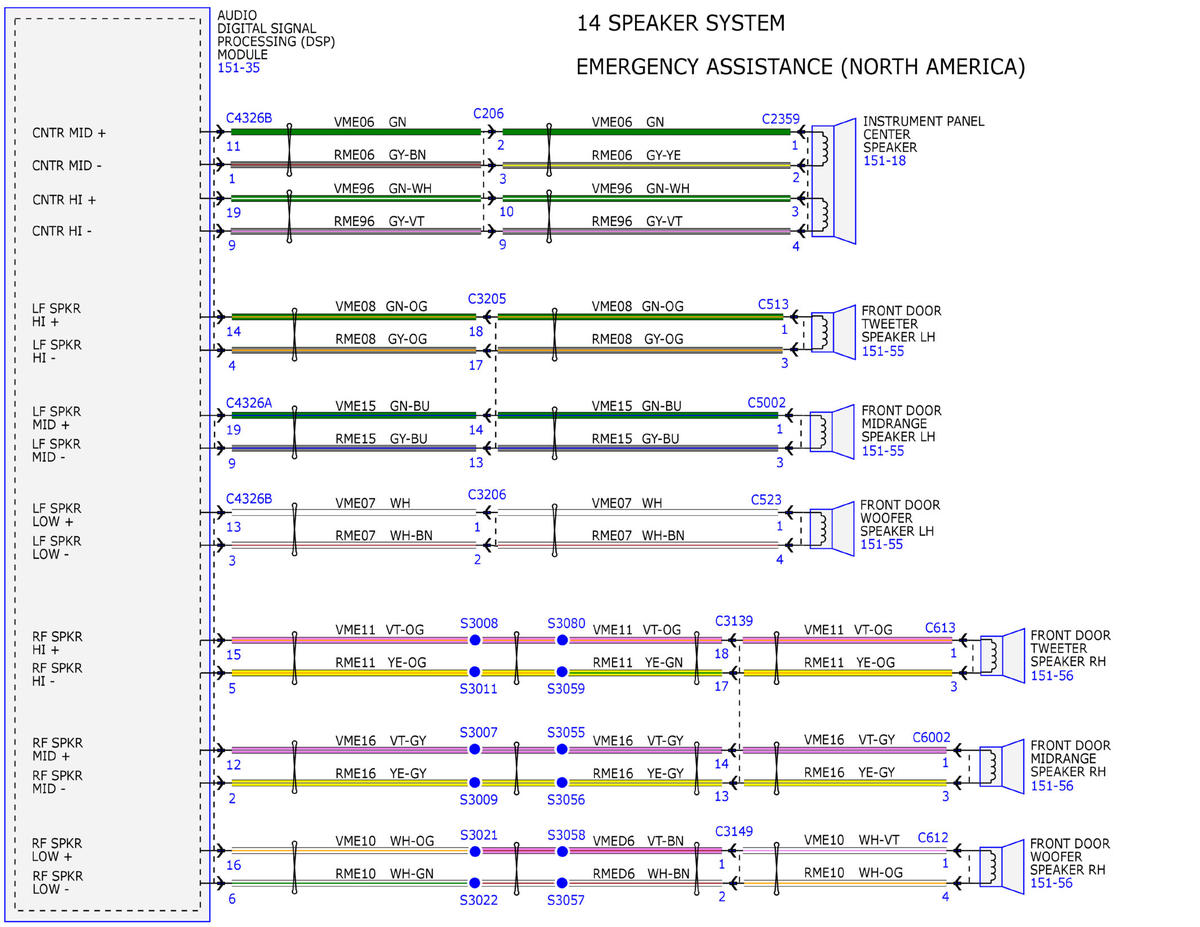

Fig 11: Audio System / Navigation - Sync Wiring Diagram (11 Of 37)

GFDWR218511

Courtesy of FORD MOTOR COMPANY

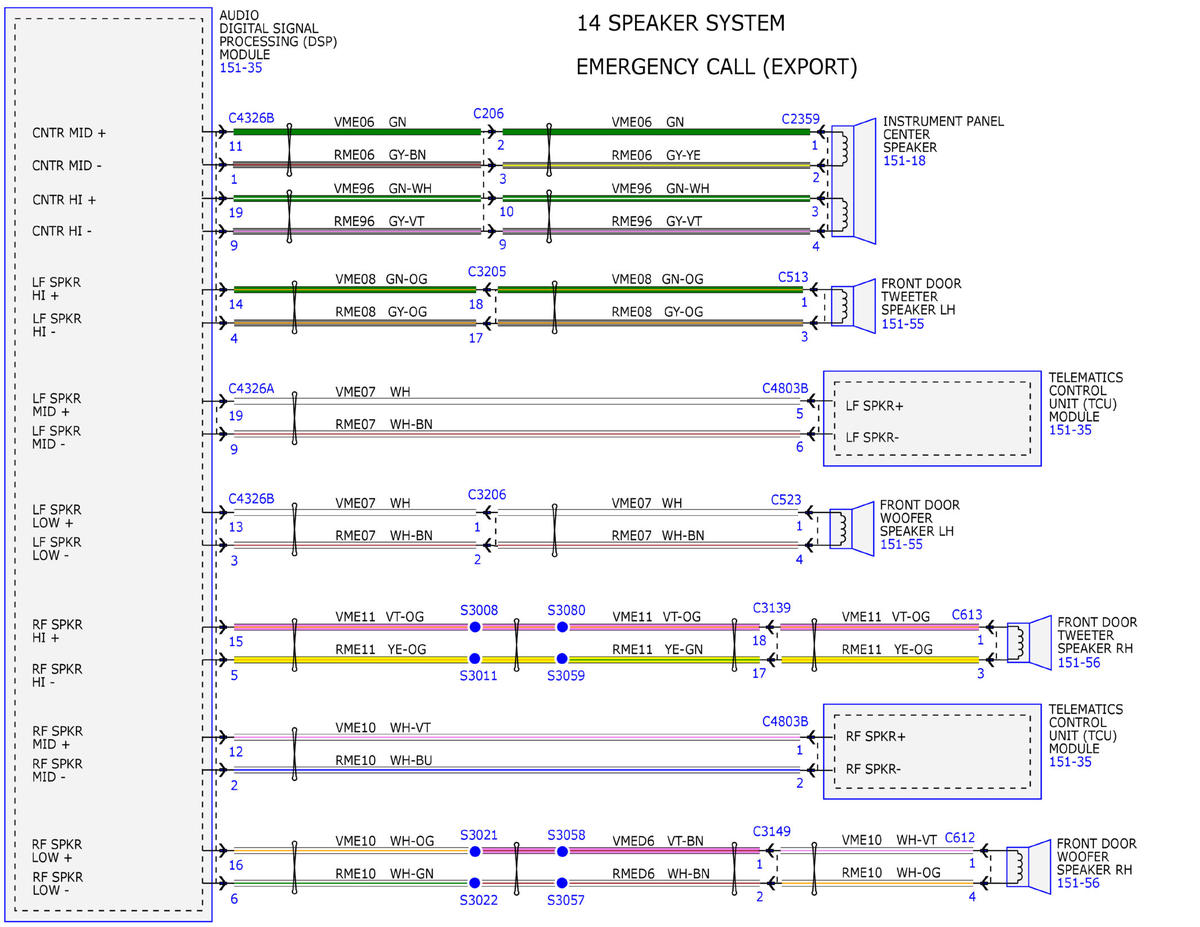

Fig 12: Audio System / Navigation - Sync Wiring Diagram (12 Of 37)

GFDWR218512

Courtesy of FORD MOTOR COMPANY

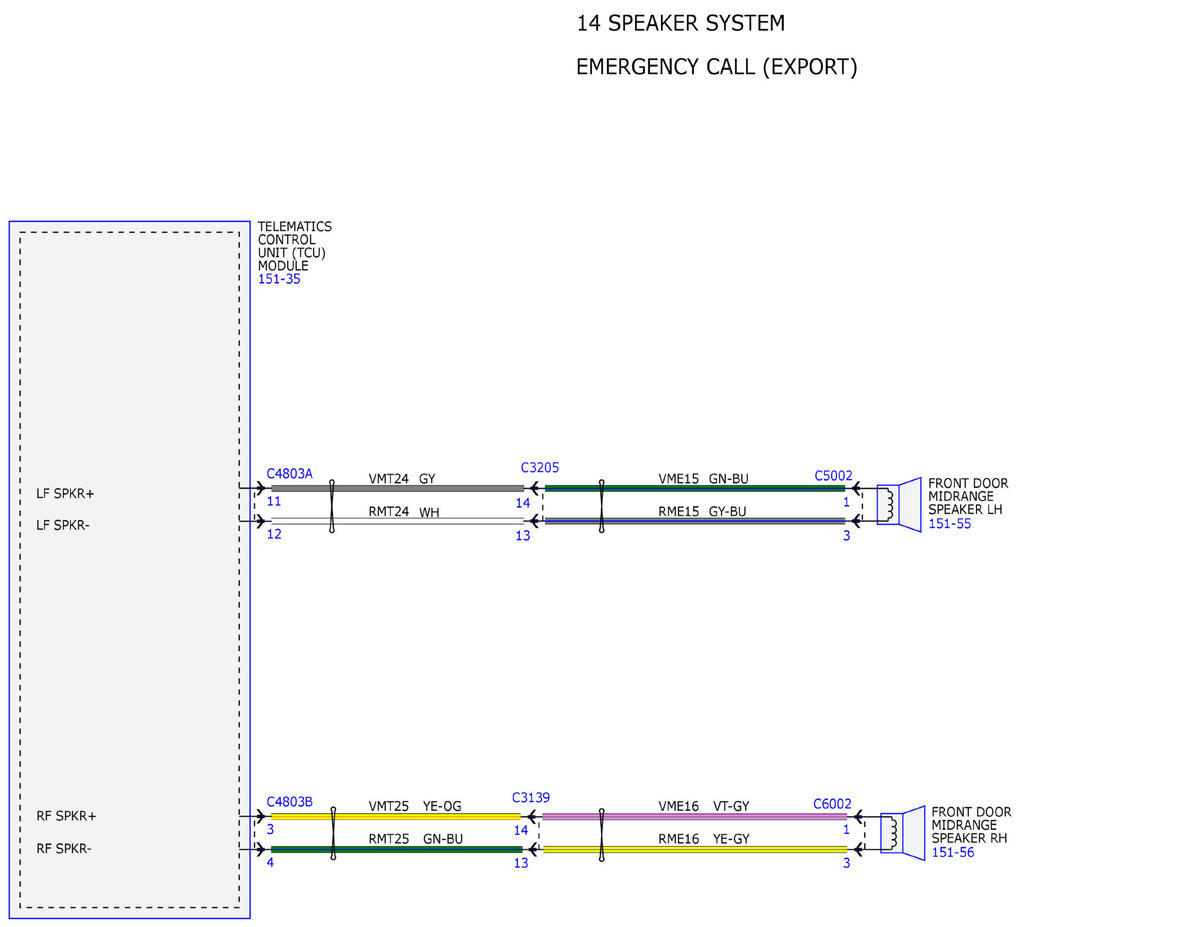

Fig 13: Audio System / Navigation - Sync Wiring Diagram (13 Of 37)

GFDWR218513

Courtesy of FORD MOTOR COMPANY

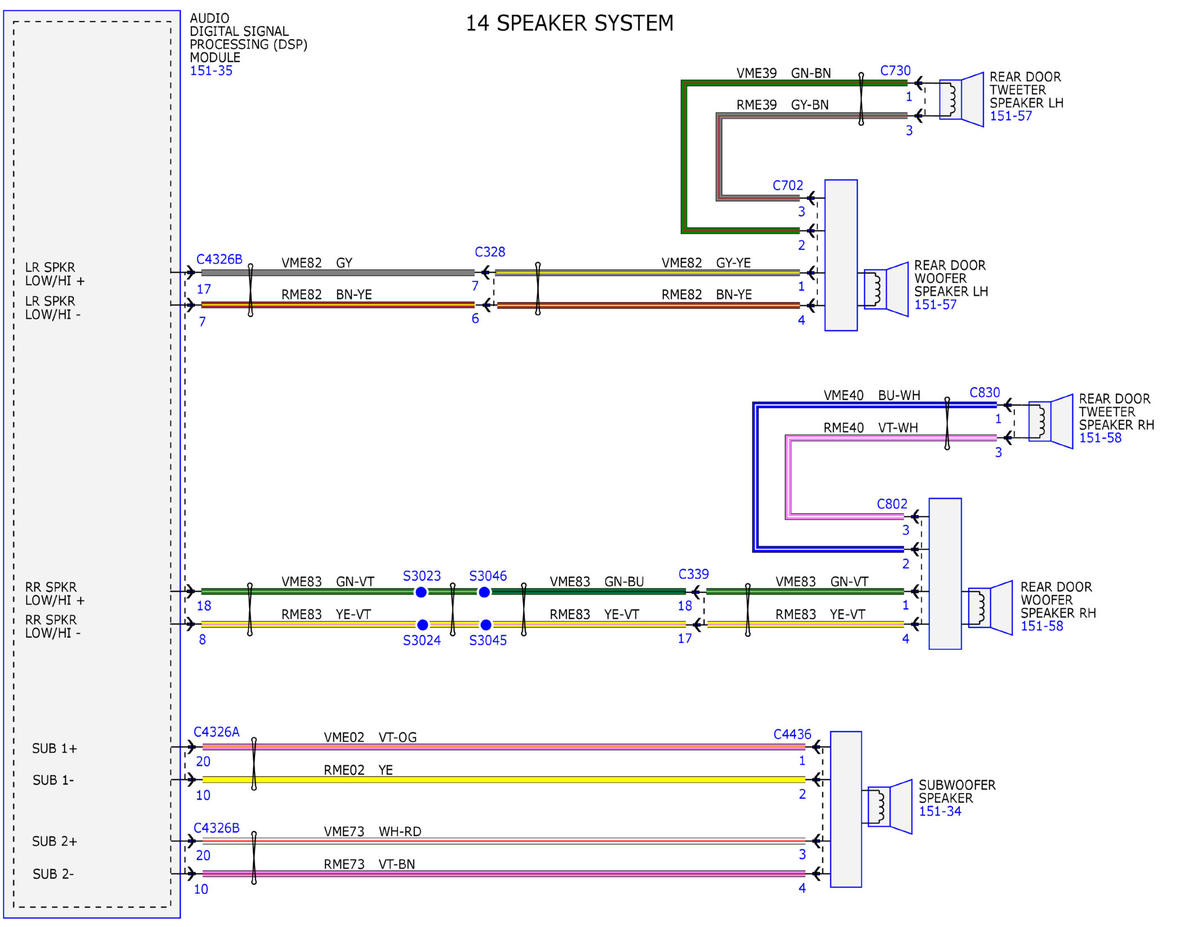

Fig 14: Audio System / Navigation - Sync Wiring Diagram (14 Of 37)

GFDWR218514

Courtesy of FORD MOTOR COMPANY

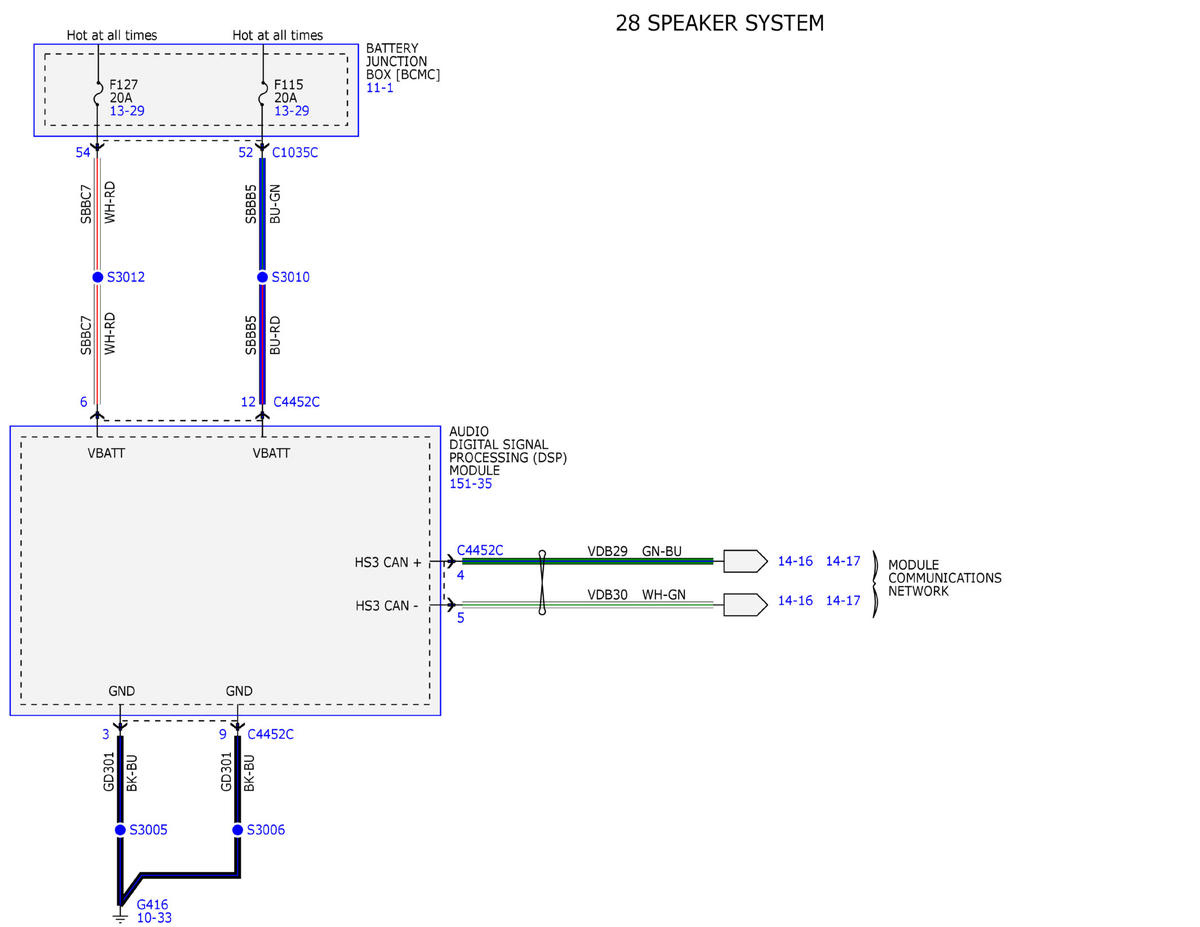

Fig 15: Audio System / Navigation - Sync Wiring Diagram (15 Of 37)

GFDWR218515

Courtesy of FORD MOTOR COMPANY

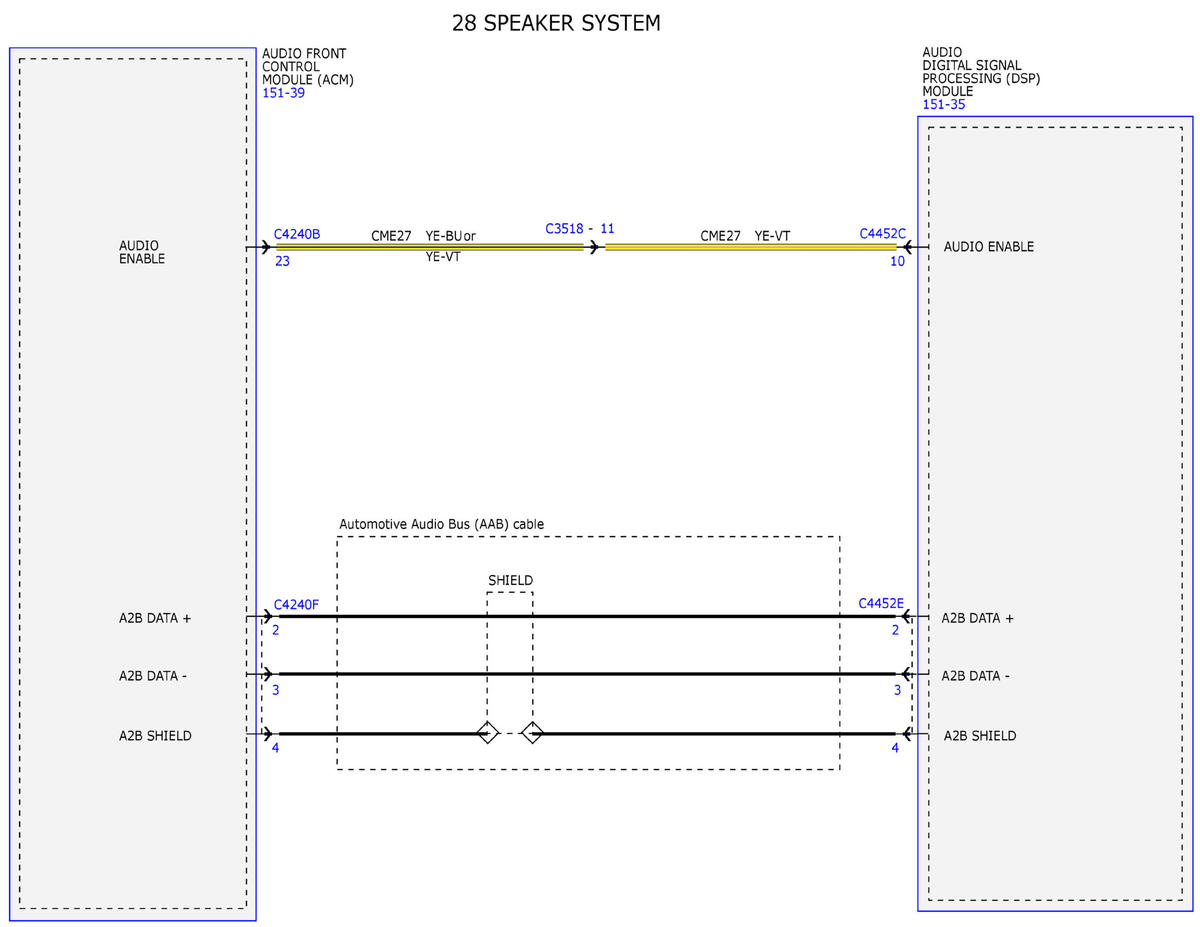

Fig 16: Audio System / Navigation - Sync Wiring Diagram (16 Of 37)

GFDWR218516

Courtesy of FORD MOTOR COMPANY

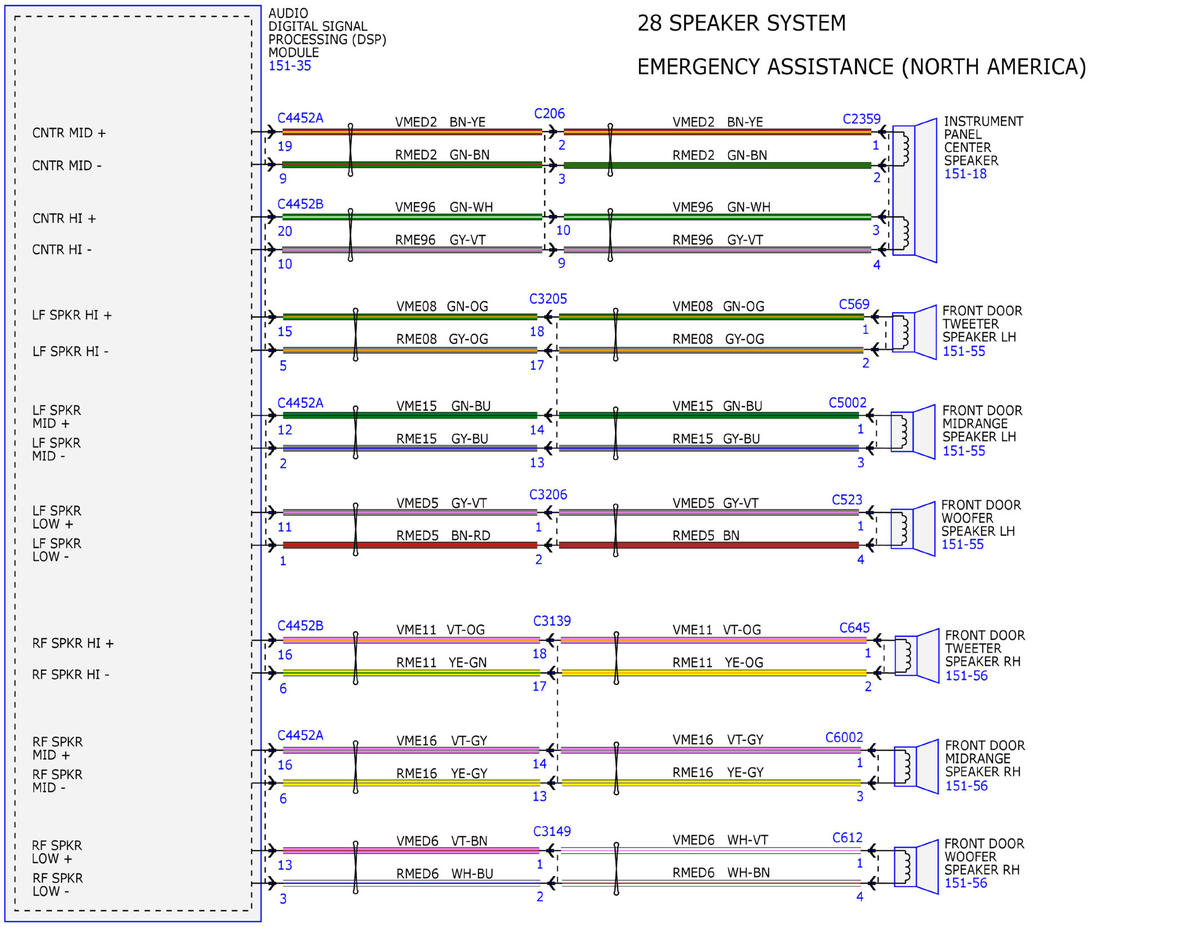

Fig 17: Audio System / Navigation - Sync Wiring Diagram (17 Of 37)

GFDWR218517

Courtesy of FORD MOTOR COMPANY

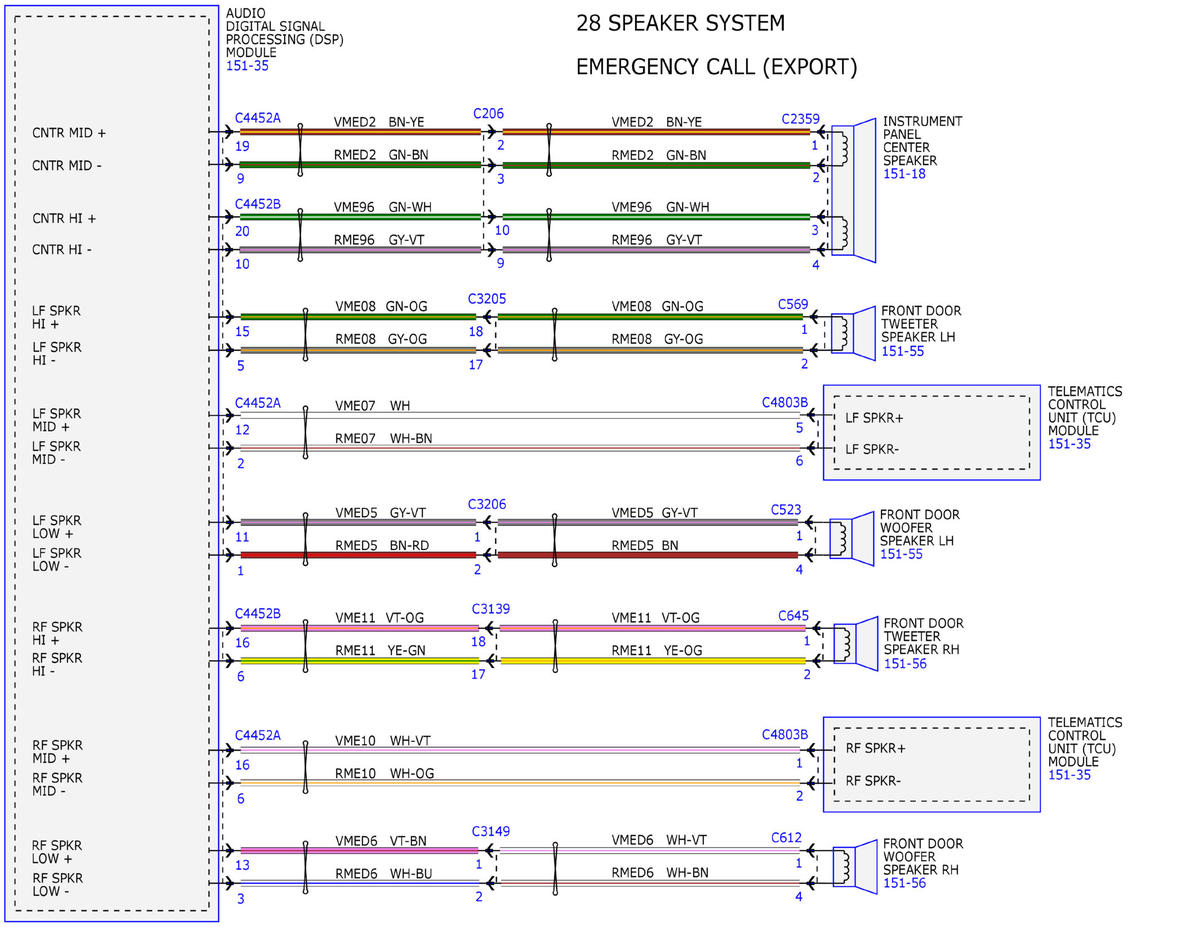

Fig 18: Audio System / Navigation - Sync Wiring Diagram (18 Of 37)

GFDWR218518

Courtesy of FORD MOTOR COMPANY

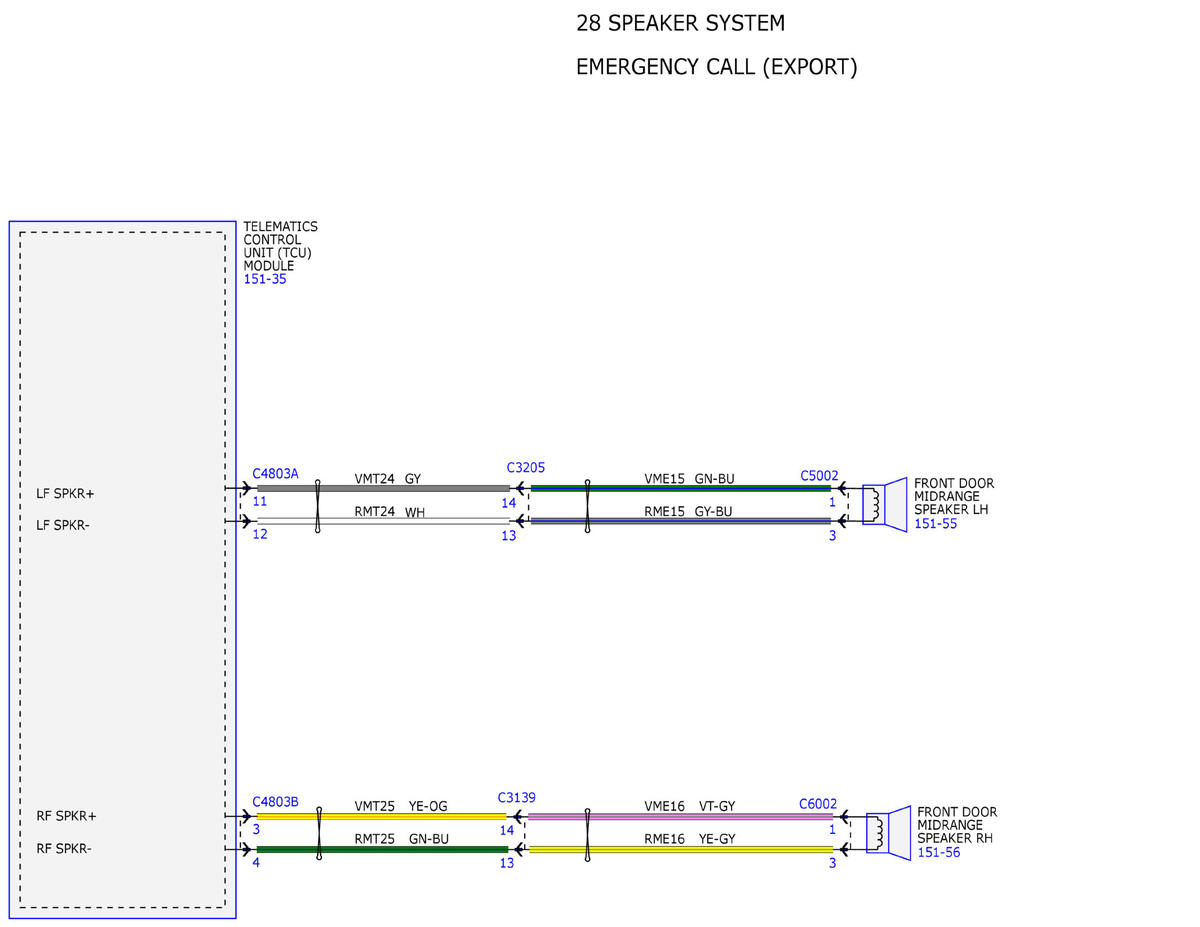

Fig 19: Audio System / Navigation - Sync Wiring Diagram (19 Of 37)

GFDWR218519

Courtesy of FORD MOTOR COMPANY

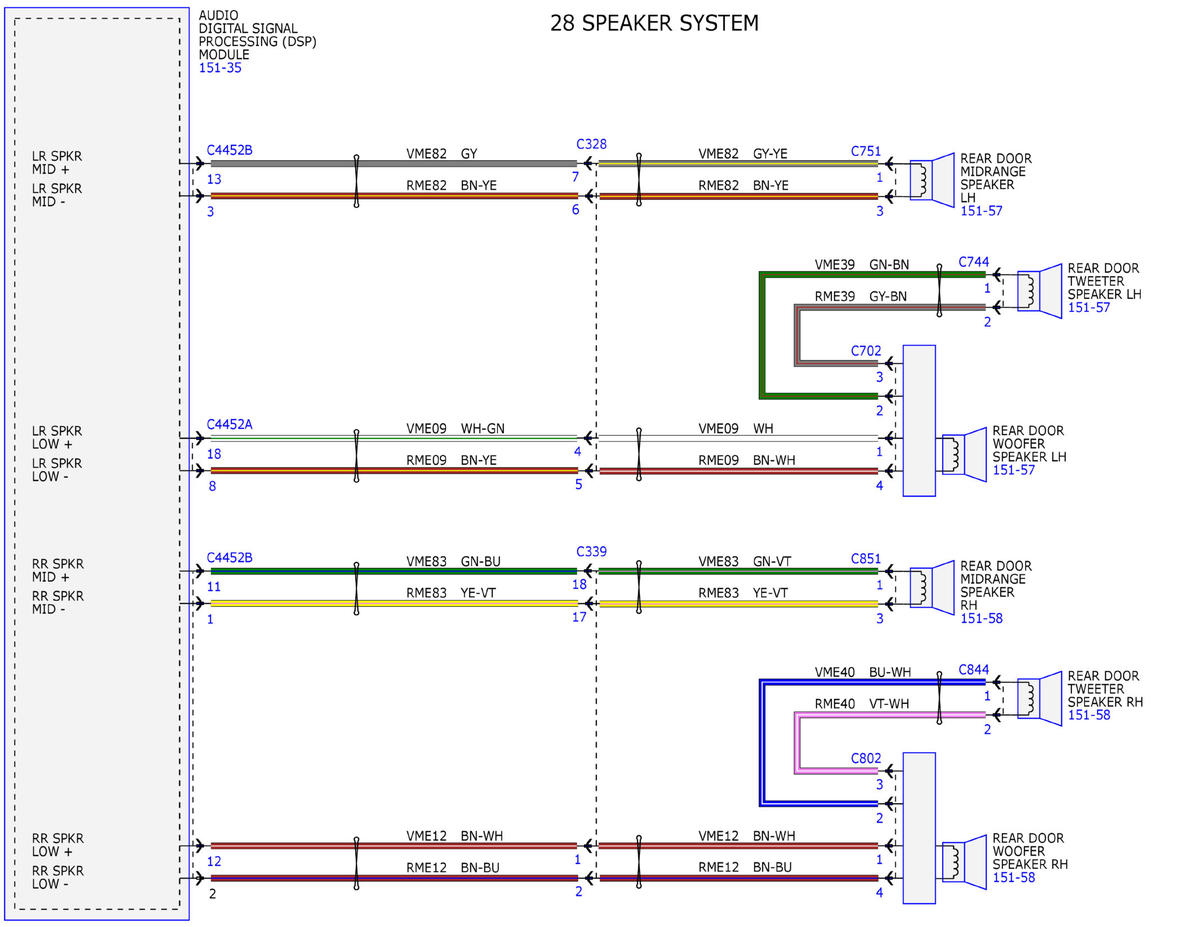

Fig 20: Audio System / Navigation - Sync Wiring Diagram (20 Of 37)

GFDWR218521

Courtesy of FORD MOTOR COMPANY

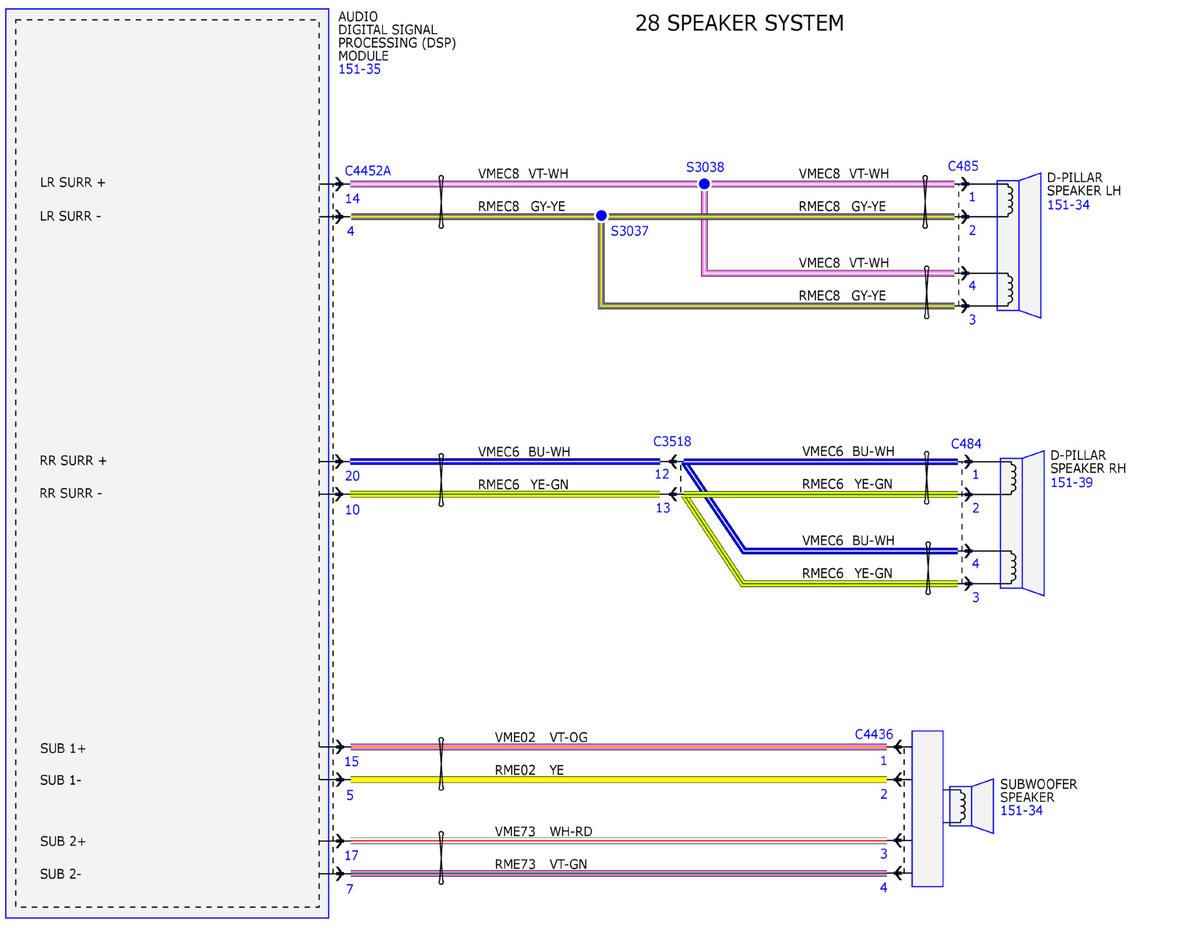

Fig 21: Audio System / Navigation - Sync Wiring Diagram (21 Of 37)

GFDWR218522

Courtesy of FORD MOTOR COMPANY

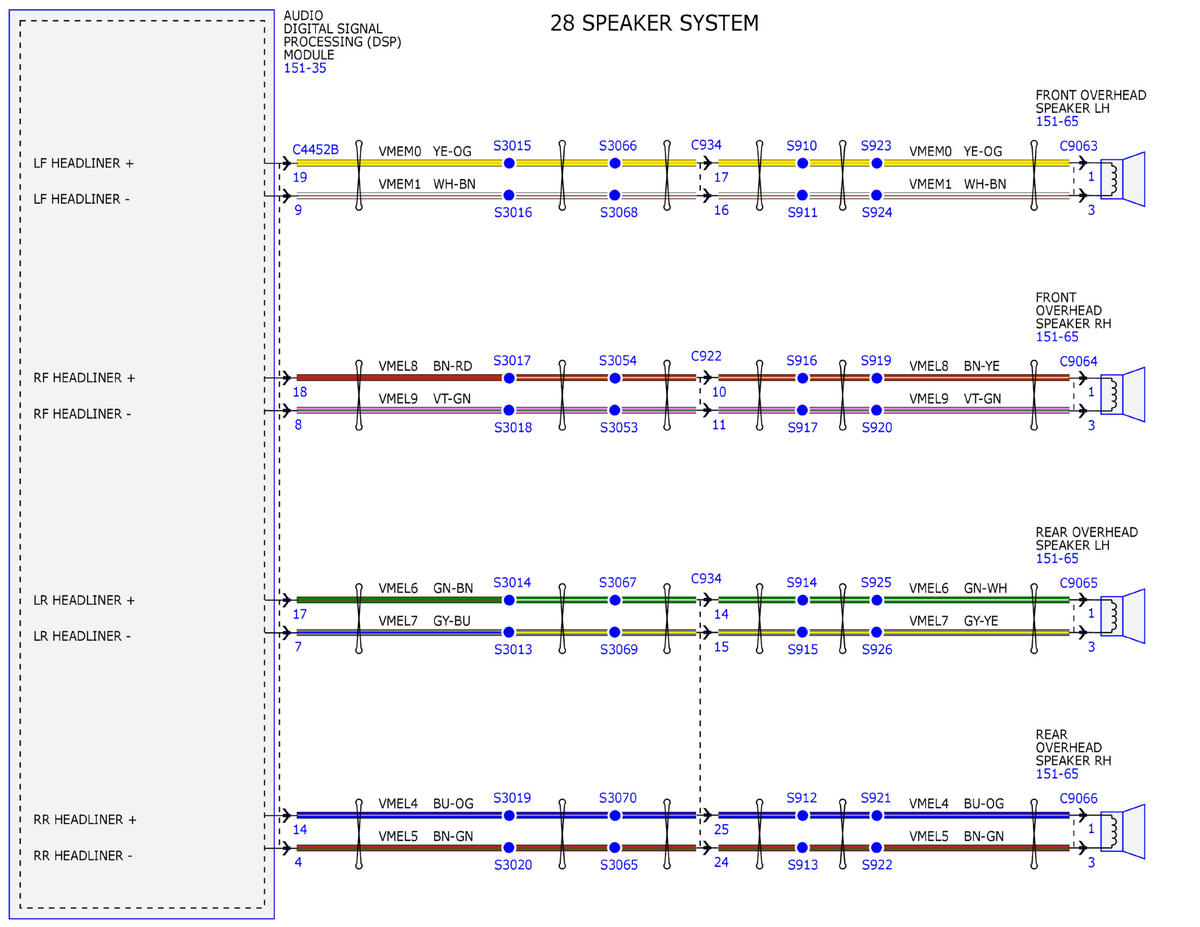

Fig 22: Audio System / Navigation - Sync Wiring Diagram (22 Of 37)

GFDWR218523

Courtesy of FORD MOTOR COMPANY

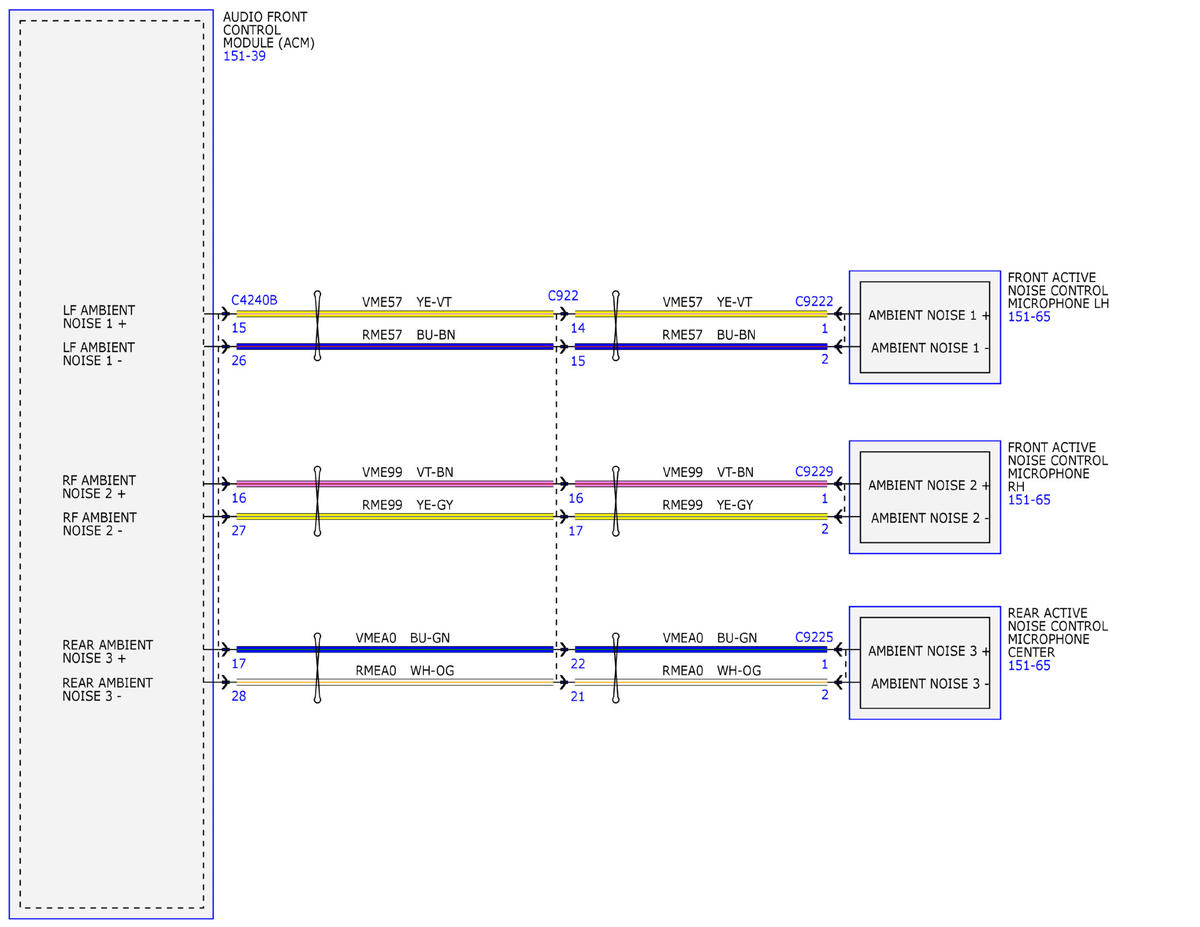

Fig 23: Audio System / Navigation - Sync Wiring Diagram (23 Of 37)

GFDWR218524

Courtesy of FORD MOTOR COMPANY

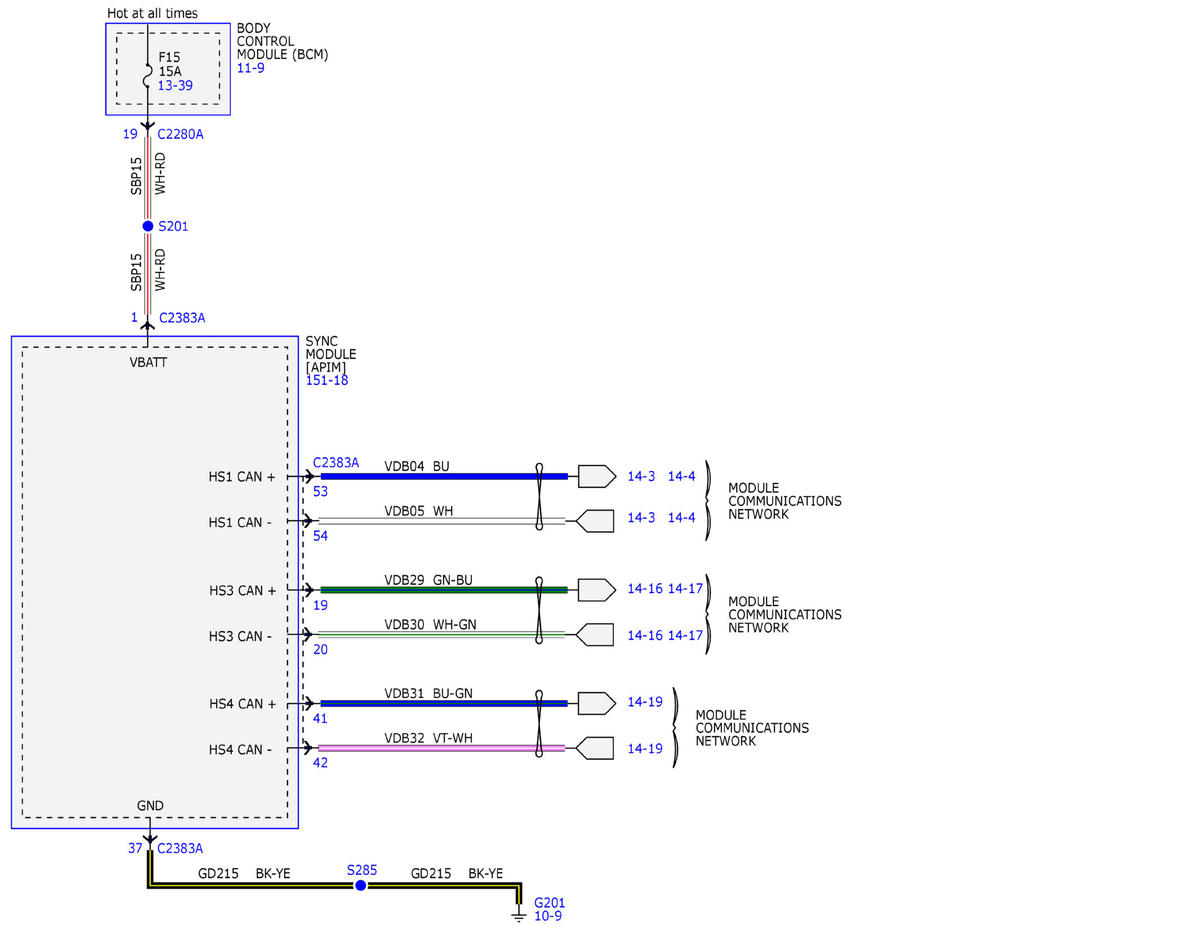

Fig 24: Audio System / Navigation - Sync Wiring Diagram (24 Of 37)

GFDWR218525

Courtesy of FORD MOTOR COMPANY

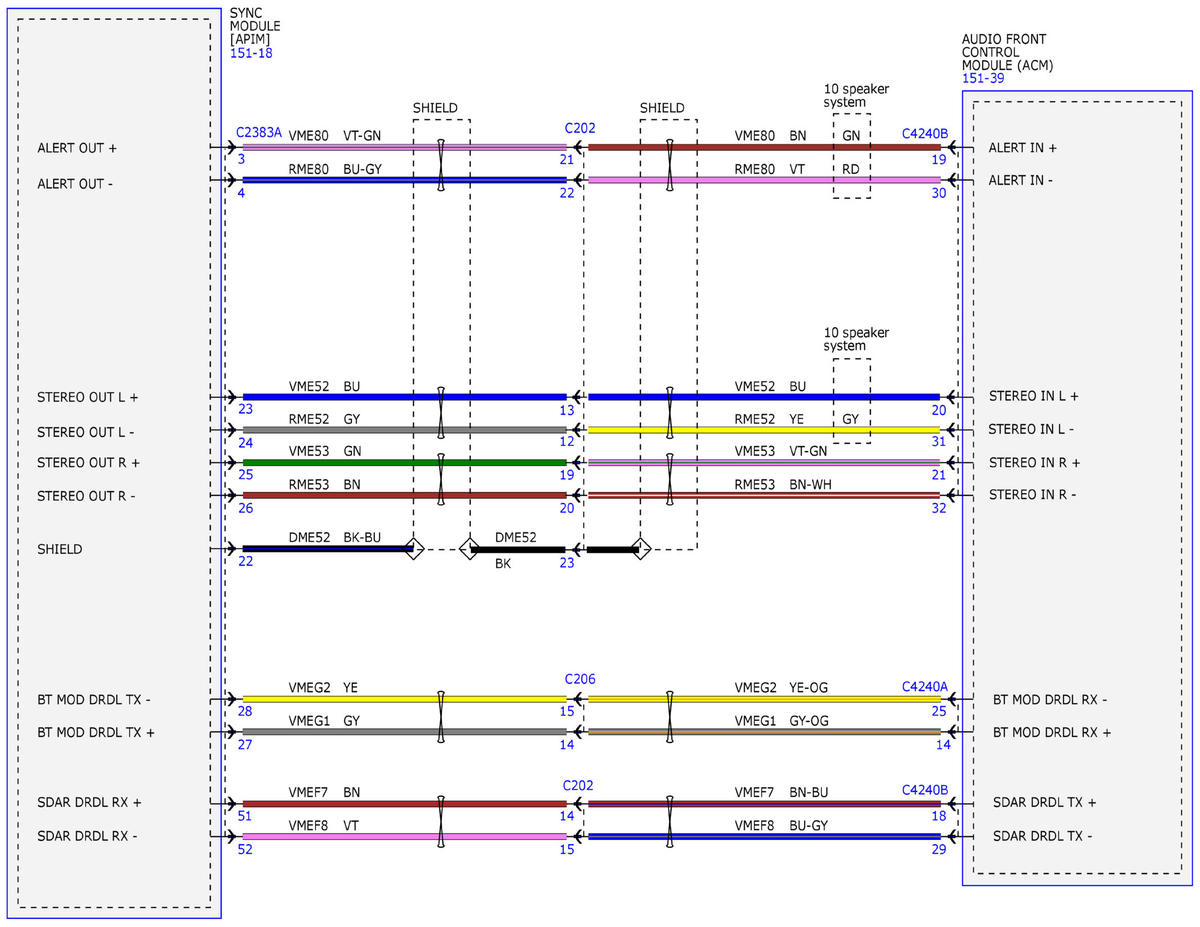

Fig 25: Audio System / Navigation - Sync Wiring Diagram (25 Of 37)

GFDWR218526

Courtesy of FORD MOTOR COMPANY

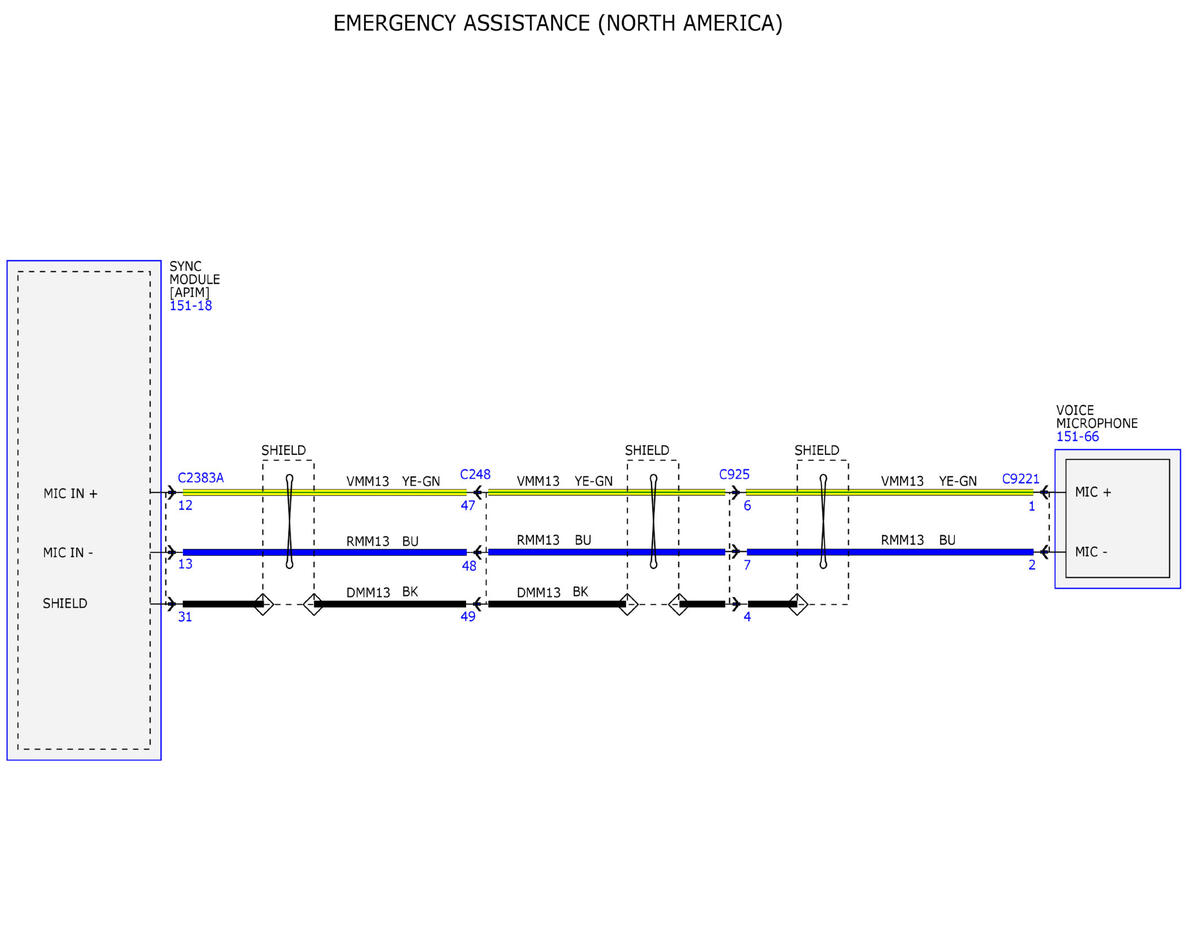

Fig 26: Audio System / Navigation - Sync Wiring Diagram (26 Of 37)

GFDWR218527

Courtesy of FORD MOTOR COMPANY

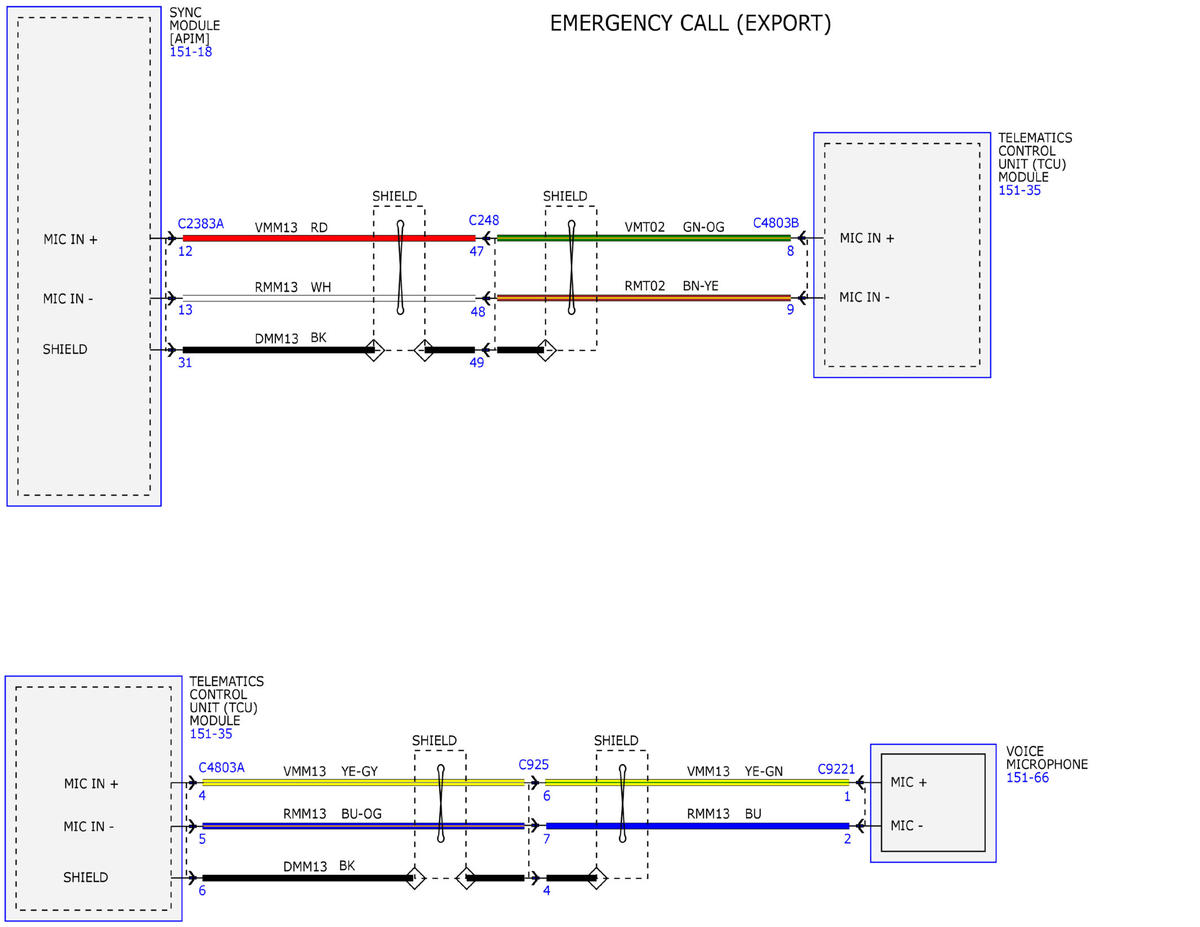

Fig 27: Audio System / Navigation - Sync Wiring Diagram (27 Of 37)

GFDWR218528

Courtesy of FORD MOTOR COMPANY

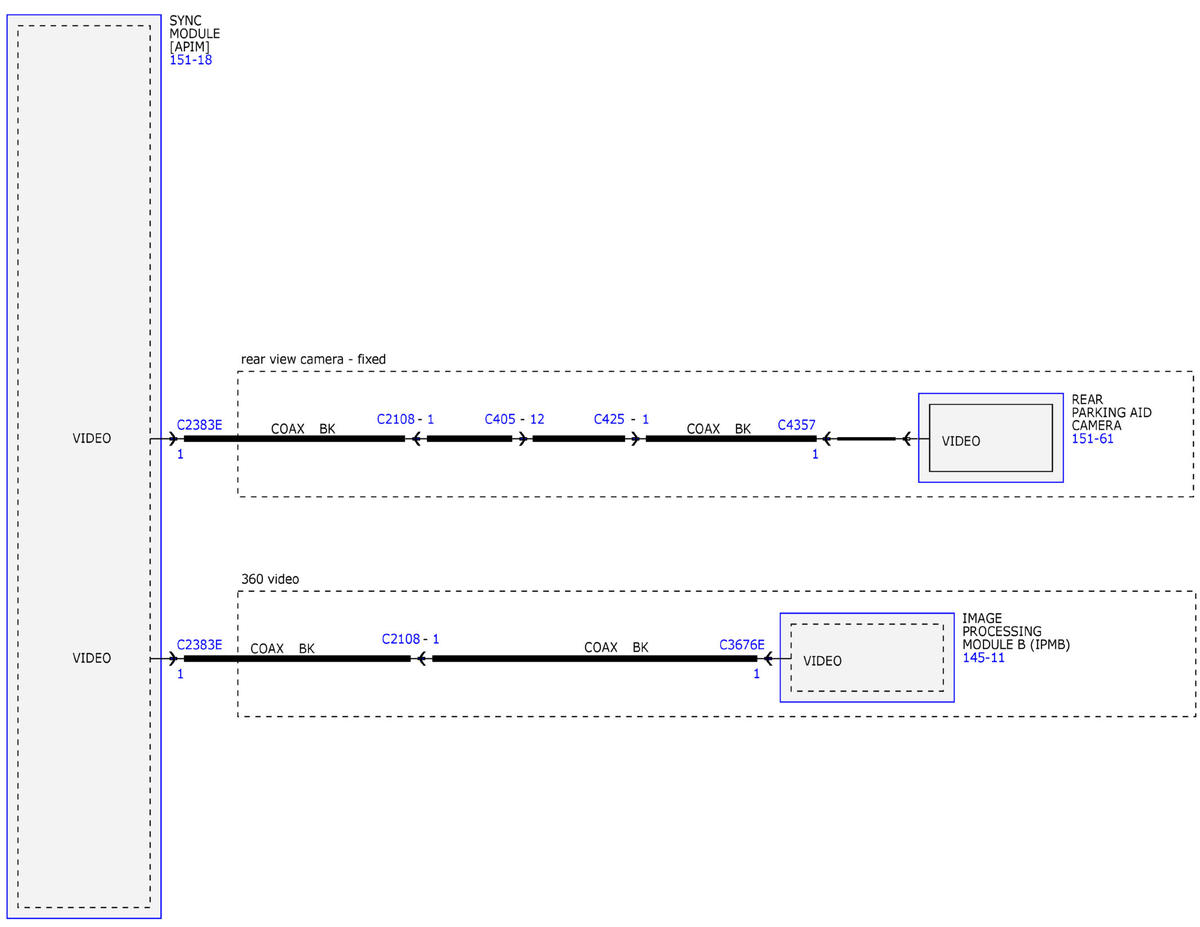

Fig 28: Audio System / Navigation - Sync Wiring Diagram (28 Of 37)

GFDWR218529

Courtesy of FORD MOTOR COMPANY

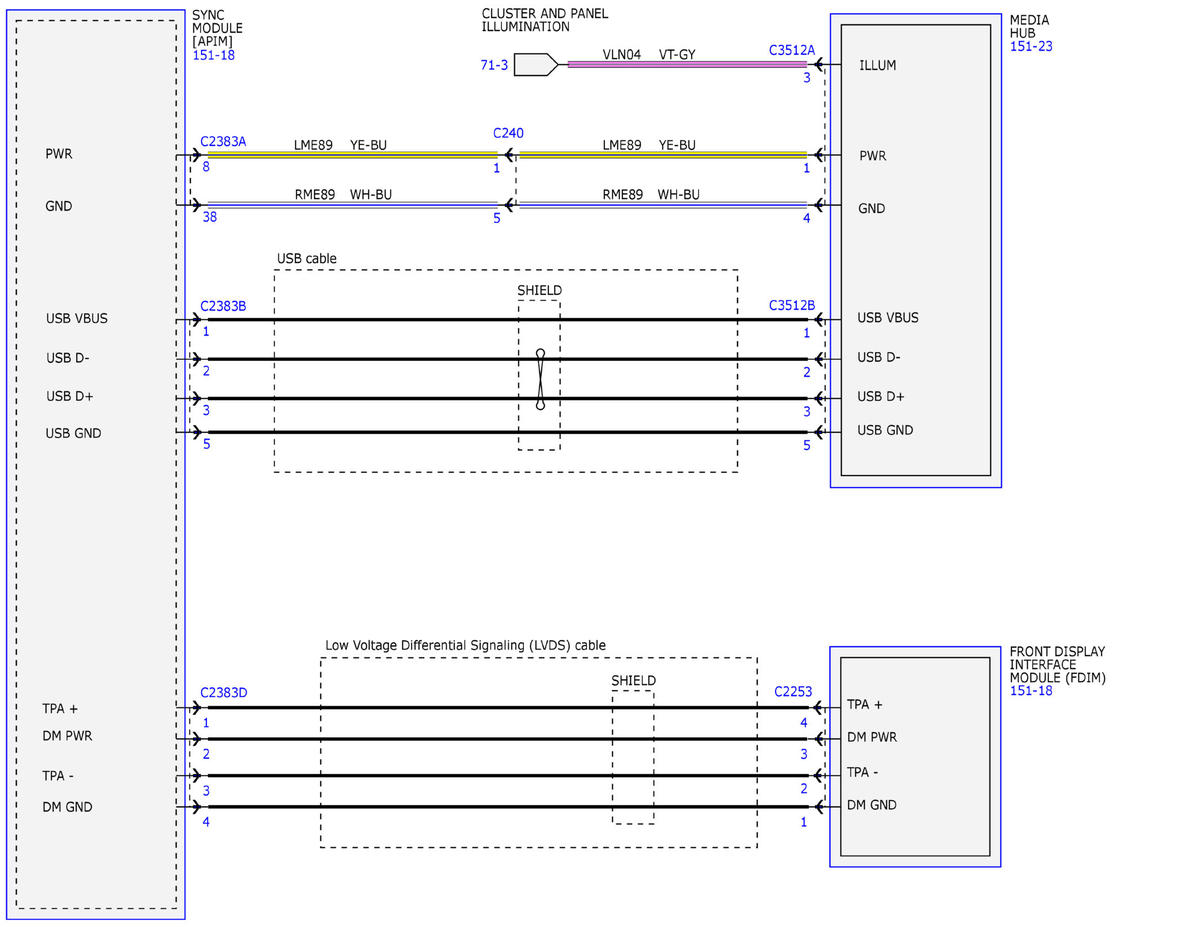

Fig 29: Audio System / Navigation - Sync Wiring Diagram (29 Of 37)

GFDWR218530

Courtesy of FORD MOTOR COMPANY

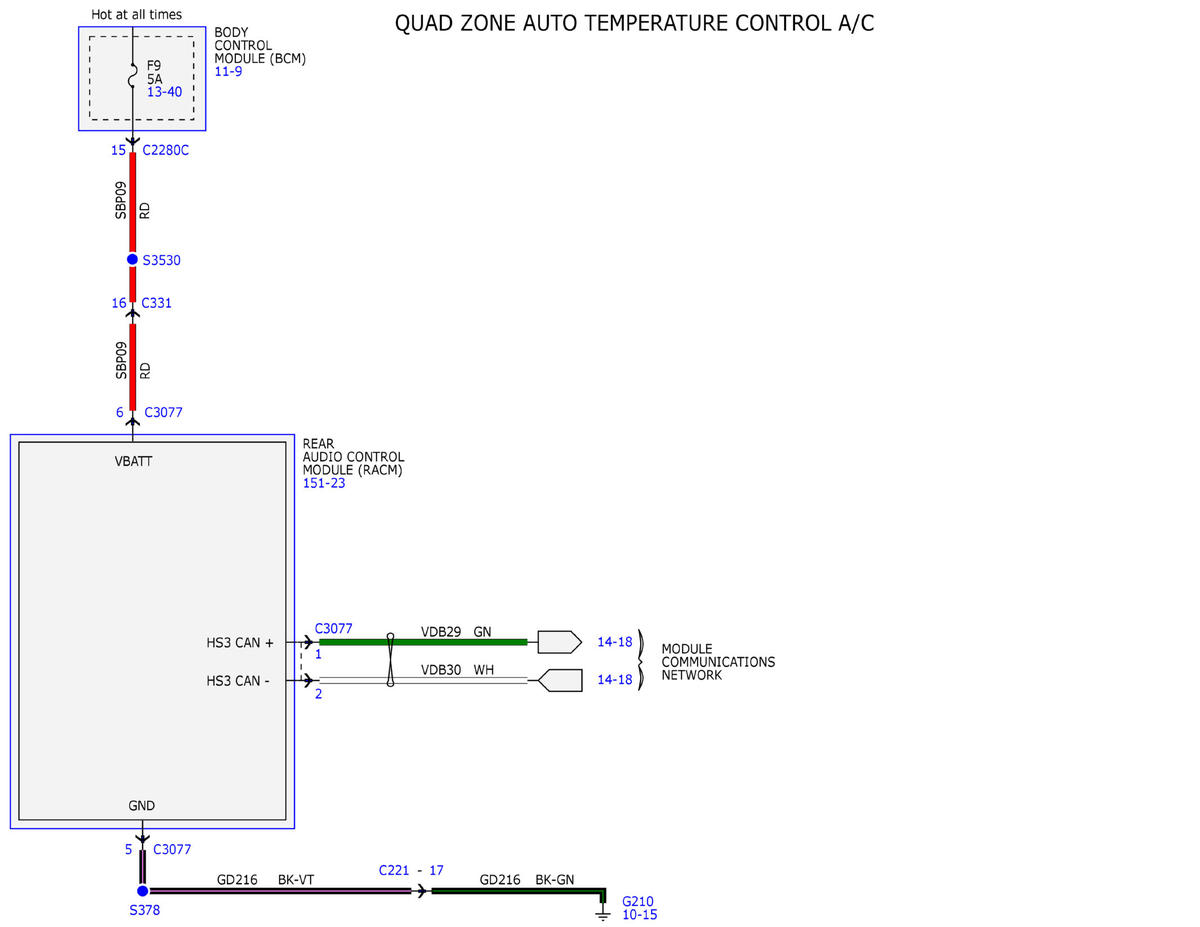

Fig 30: Audio System / Navigation - Sync Wiring Diagram (30 Of 37)

GFDWR218532

Courtesy of FORD MOTOR COMPANY

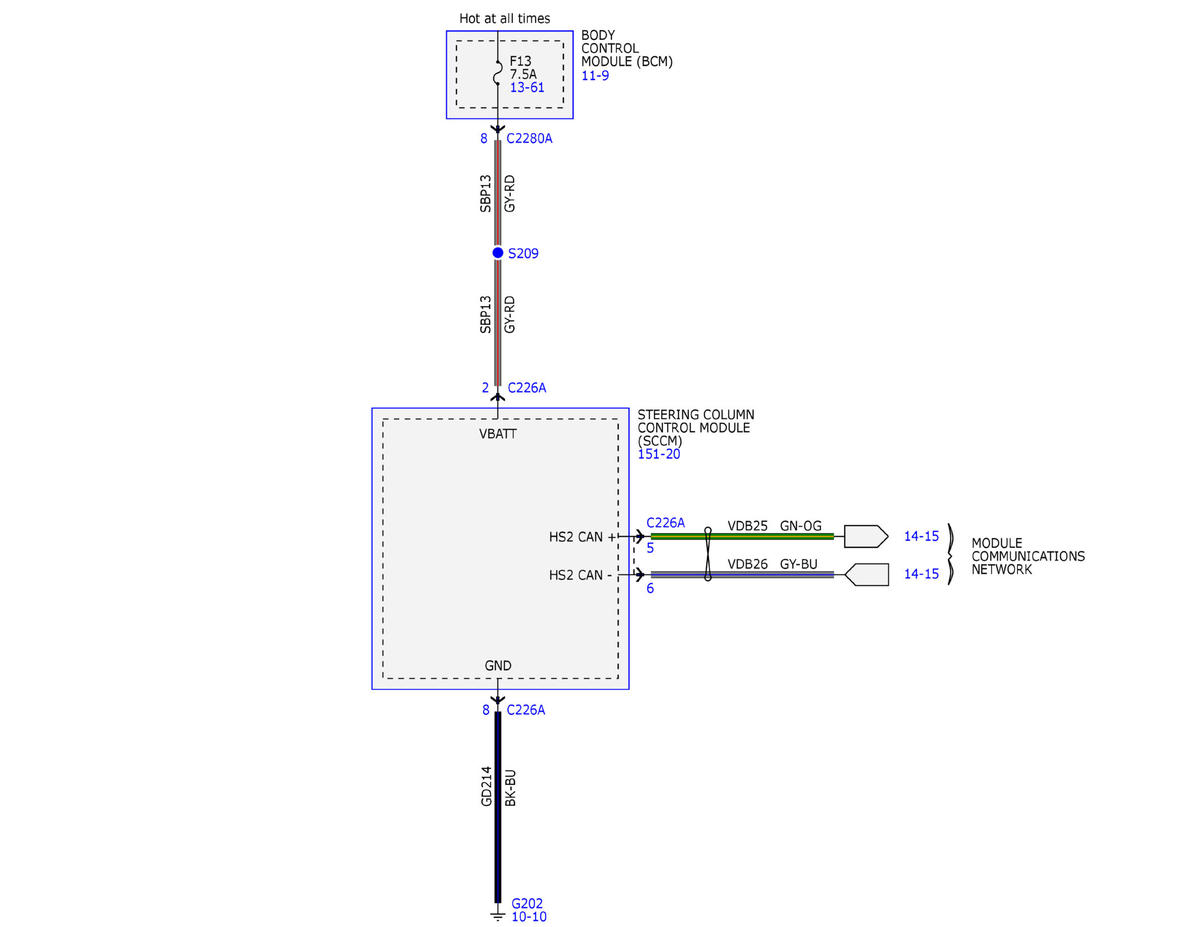

Fig 31: Audio System / Navigation - Sync Wiring Diagram (31 Of 37)

GFDWR218533

Courtesy of FORD MOTOR COMPANY

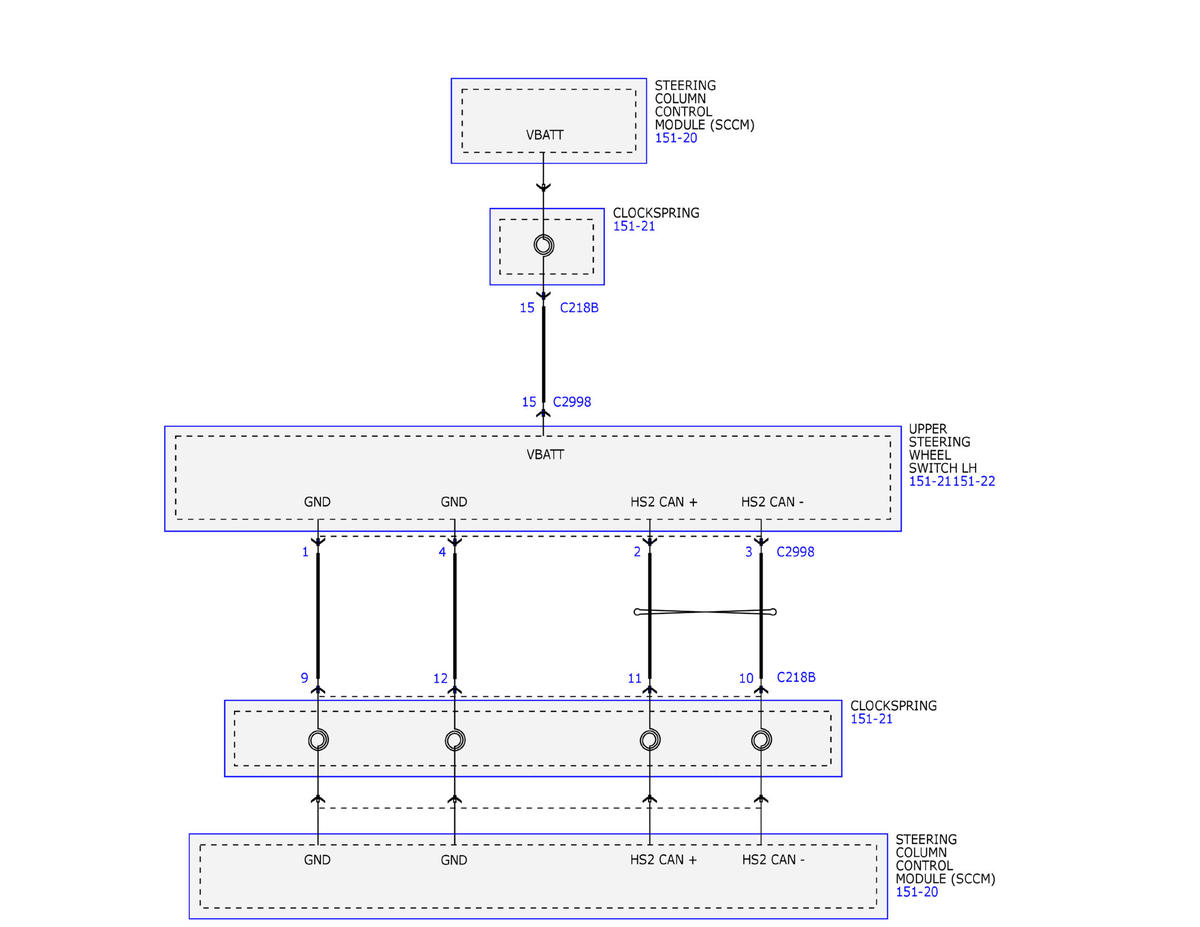

Fig 32: Audio System / Navigation - Sync Wiring Diagram (32 Of 37)

GFDWR218534

Courtesy of FORD MOTOR COMPANY

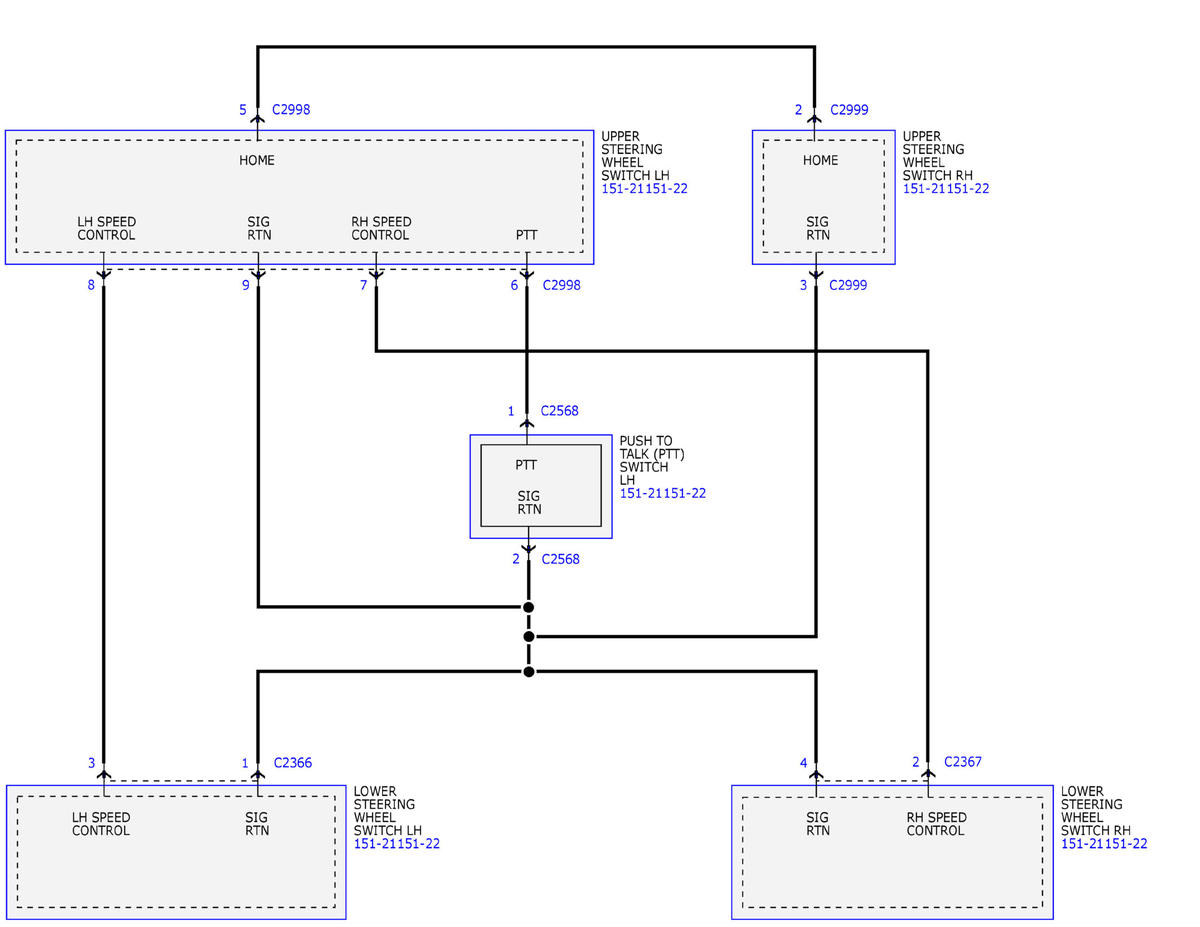

Fig 33: Audio System / Navigation - Sync Wiring Diagram (33 Of 37)

GFDWR218535

Courtesy of FORD MOTOR COMPANY

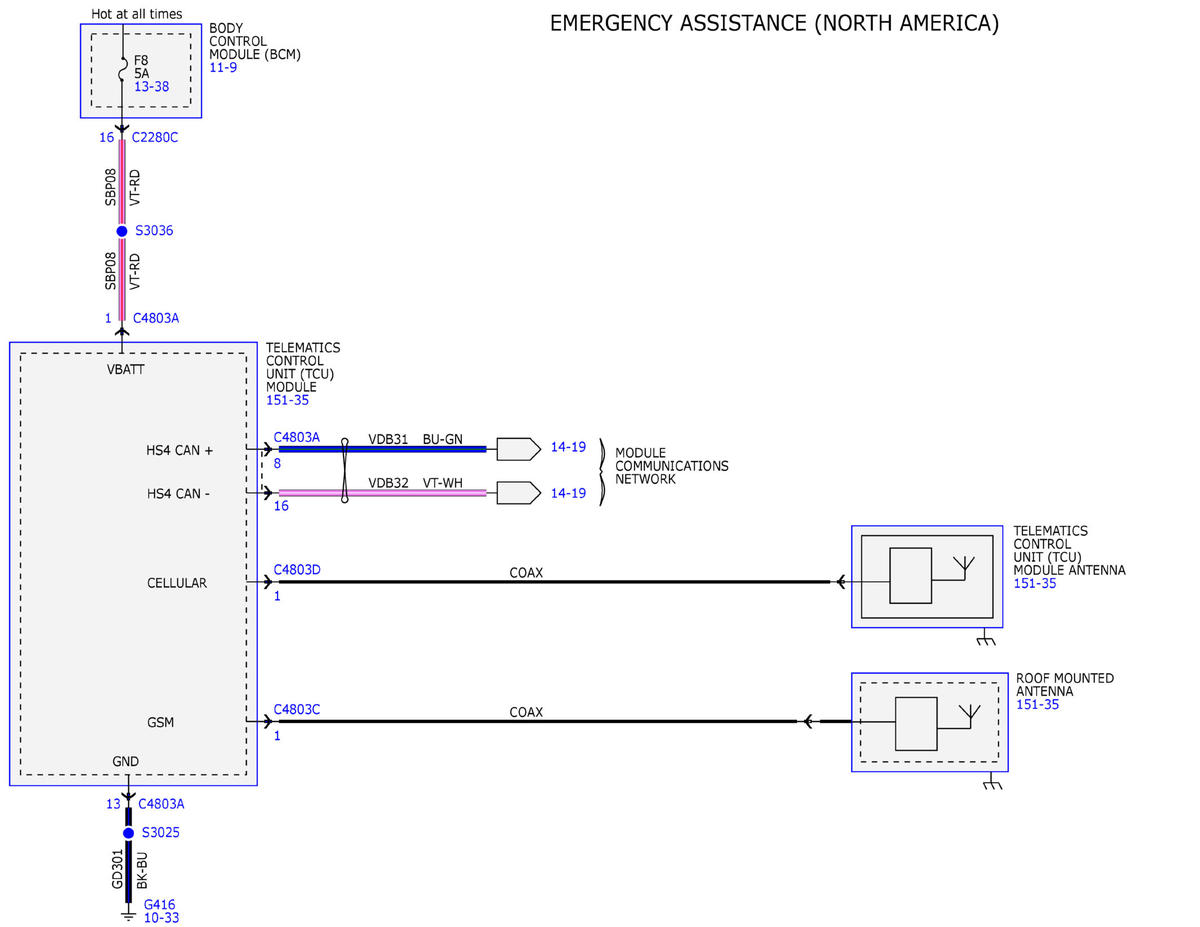

Fig 34: Audio System / Navigation - Sync Wiring Diagram (34 Of 37)

GFDWR218536

Courtesy of FORD MOTOR COMPANY

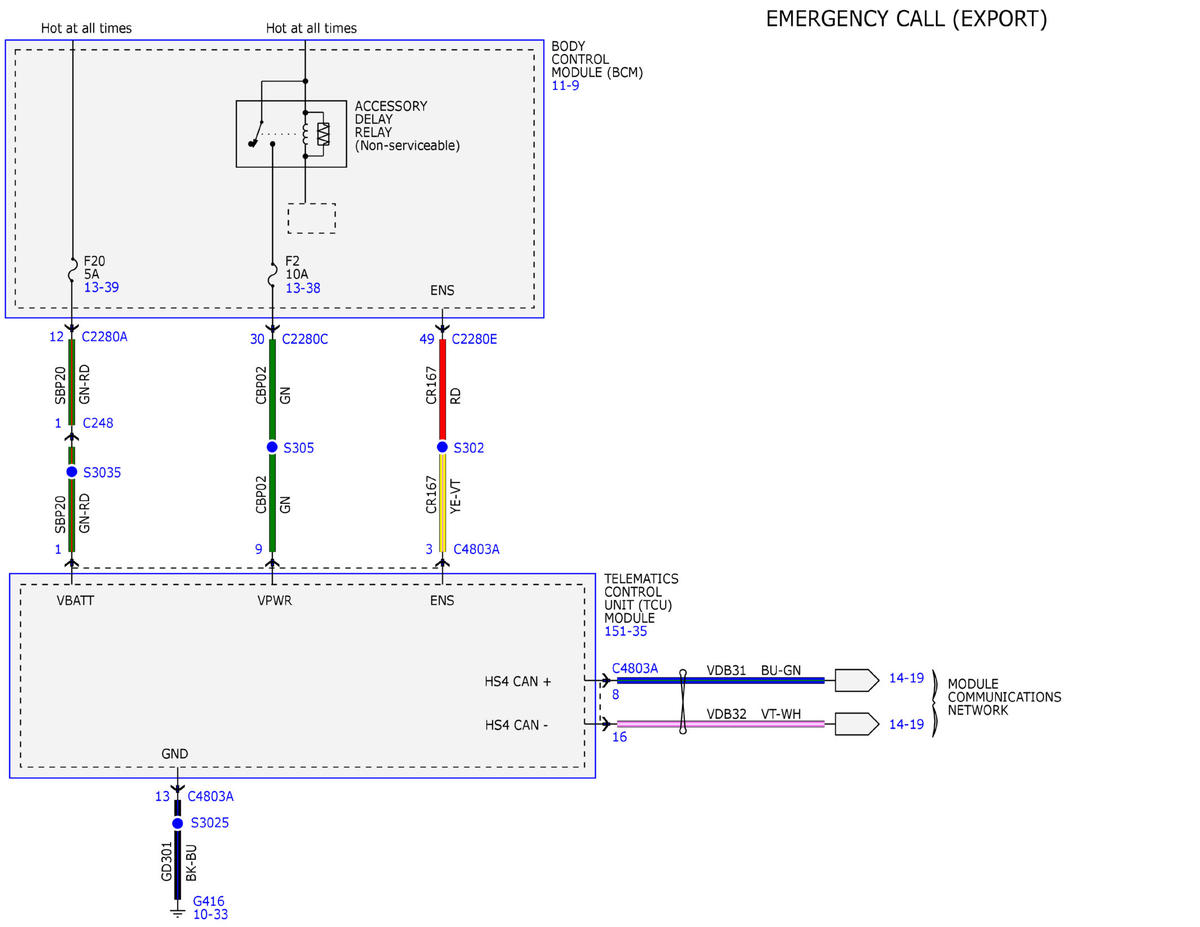

Fig 35: Audio System / Navigation - Sync Wiring Diagram (35 Of 37)

GFDWR218537

Courtesy of FORD MOTOR COMPANY

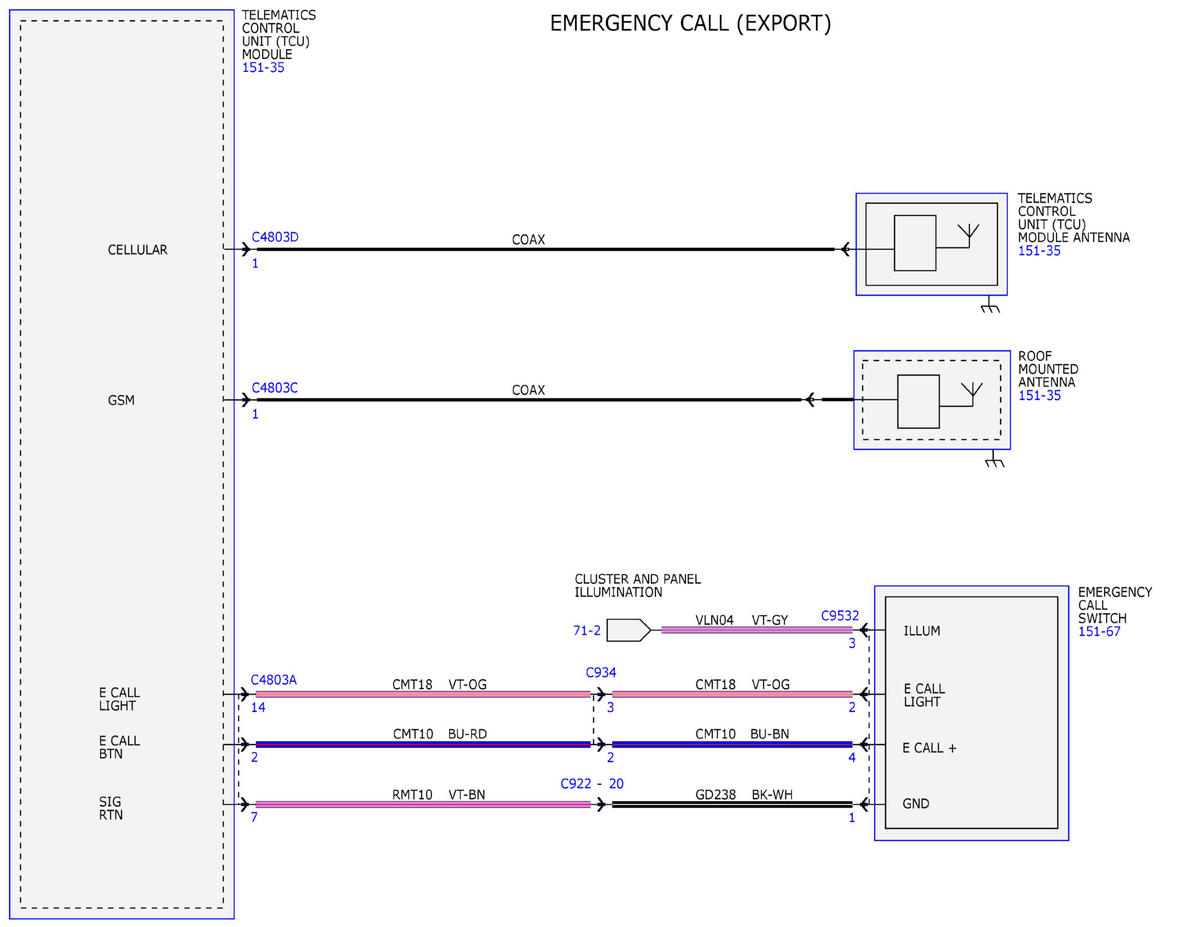

Fig 36: Audio System / Navigation - Sync Wiring Diagram (36 Of 37)

GFDWR218538

Courtesy of FORD MOTOR COMPANY

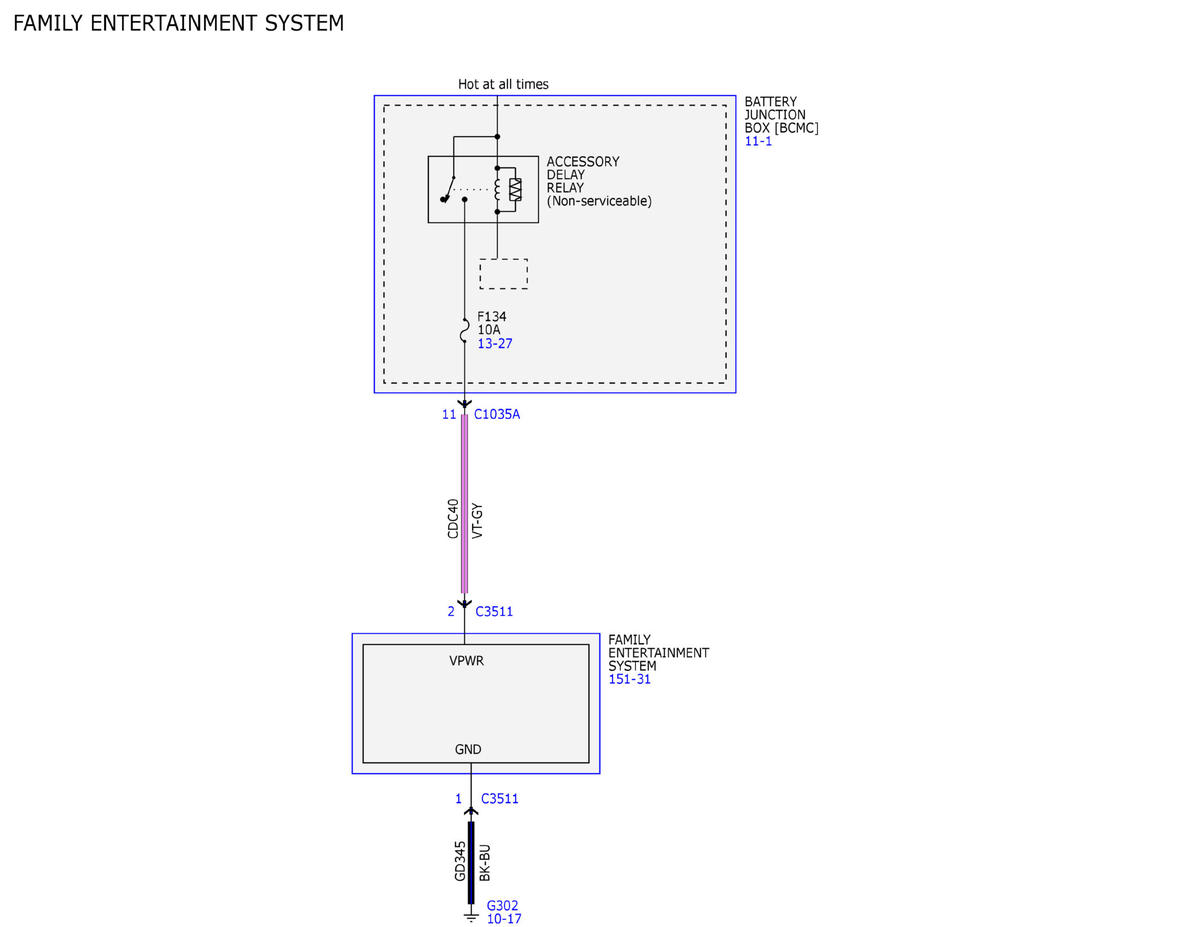

Fig 37: Audio System / Navigation - Sync Wiring Diagram (37 Of 37)

GFDWR218539

Courtesy of FORD MOTOR COMPANY
