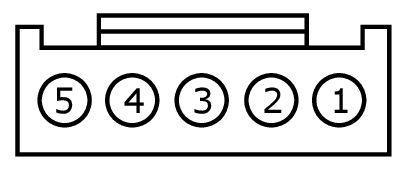

Connector End View C2999 - UPPER STEERING WHEEL SWITCH RH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2999 |
UPPER STEERING WHEEL SWITCH RH |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
ILLUMINATION + |
N/A |
| 2 |
* (*) |
* |
MULTIMEDIA AND INFO/HOME |
N/A |
| 3 |
* (*) |
* |
SIGNAL GROUND |
N/A |
| 4 |
* (*) |
* |
INFO FUNCTION ILLUMINATION - |
N/A |
| 5 |
* (*) |
* |
HOME FUNCTION ILLUMINATION - |
N/A |
