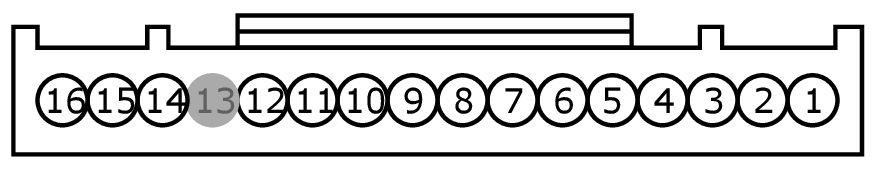

Connector End View C2998 - UPPER STEERING WHEEL SWITCH LH [SIMA]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2998	UPPER STEERING WHEEL SWITCH LH [SIMA]	PIA			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	GROUND	N/A
2	* (*)	*	HS CAN +	N/A
3	* (*)	*	HS CAN -	N/A
4	* (*)	*	GROUND	N/A
5	* (*)	*	MULTIMEDIA AND INFO/HOME	N/A
6	* (*)	*	LEFT PTT	N/A
7	* (*)	*	RH SPEED CONTROL	N/A
8	* (*)	*	LH SPEED CONTROL	N/A
9	* (*)	*	SIGNAL GROUND	N/A
10	* (*)	*	DIALOG MODE ILLUMINATION -	N/A
11	* (*)	*	DOMAIN MODE ILLUMINATION -	N/A
12	* (*)	*	SPEED CONTROL ILLUMINATION -	N/A
13	*	*	Not Used	N/A
14	* (*)	*	ILLUMINATION +	N/A
15	* (*)	*	VPWR	N/A
16	* (*)	*	PADDLE SWITCH ILLUMINATION	N/A
