Connector End View C2280B - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280B BODY CONTROL MODULE (BCM) BK/GY 14401 part# N/A Not Available

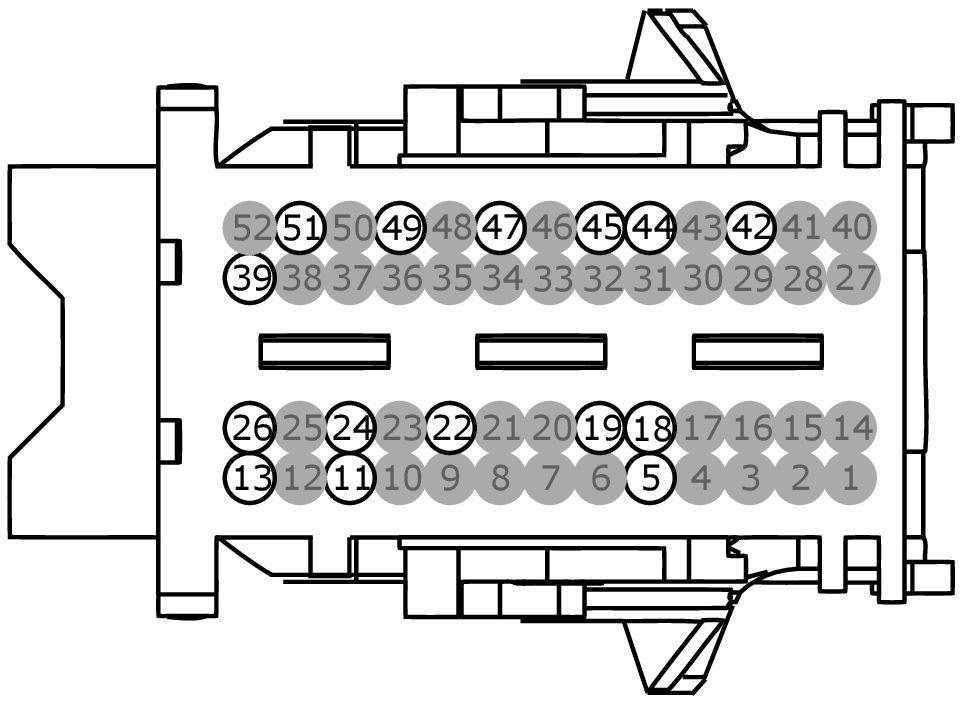

GFDWR218107Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
9U5T-14474-YB DU2Z-14474-AA 0.64
9U5T-14474-DB DU2Z-14474-AA 0.64
FU5T-14474-LB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 CPK35 (YE-OG) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + 9U5T-14474-DB
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 CRT36 (BU-GN) 22 CTRL MOD. - WIRELESS CHARGE ENABLE/DISABLE 9U5T-14474-DB
12 * * Not Used N/A
13 VDN15 (BU-GY) 22 CTRL MOD. - LIN BUS # 15 9U5T-14474-DB
14 * * Not Used N/A
15 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 RRH02 (GN-WH) 22 CTRL MOD. - SWITCH HORN 9U5T-14474-DB
18 RRH02 (GN-BN) 22 CTRL MOD. - SWITCH HORN 9U5T-14474-DB
19 CLS32 (RD) 26 SWITCH - HAZARD 9U5T-14474-YB
20 * * Not Used N/A
21 * * Not Used N/A
22 RLF14 (GY-BN) 22 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - 9U5T-14474-DB
23 * * Not Used N/A
24 VLF14 (BU-BN) 22 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + 9U5T-14474-DB
25 * * Not Used N/A
26 VPL56 (BU-OG) 22 RECEIVER - REMOTE RF 9U5T-14474-DB
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 CPK36 (VT-BN) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED 9U5T-14474-DB
40 * * Not Used N/A
41 * * Not Used N/A
42 CR194 (VT-WH) 22 POWER - RESTRAINTS CONTROL MODULE (RCM) 9U5T-14474-DB
43 * * Not Used N/A
44 VLN37 (BU-WH) 22 CTRL MOD. - IP/SWITCH ILLUMINATION #2 (WHITE) 9U5T-14474-DB
45 VLN04 (VT-GY) 22 CTRL MOD. - IP/SWITCH ILLUMINATION 9U5T-14474-DB
46 * * Not Used N/A
47 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM 9U5T-14474-DB
48 * * Not Used N/A
49 VDN17 (GY) 26 CTRL MOD. - LIN BUS # 17 9U5T-14474-YB
50 * * Not Used N/A
51 CPK34 (GN) 26 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + FU5T-14474-LB
52 * * Not Used N/A
