Wastegate Control Actuator RH: Installation

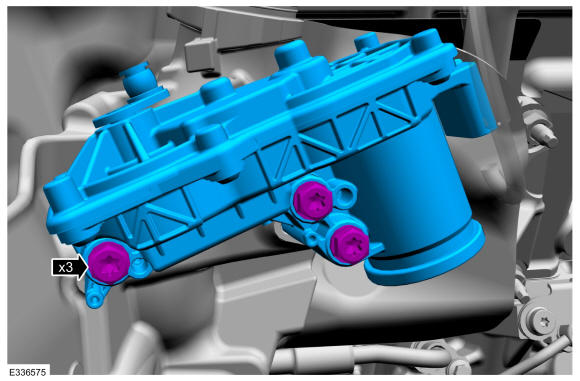

Install the wastegate control actuator, then install and tighten the new bolts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

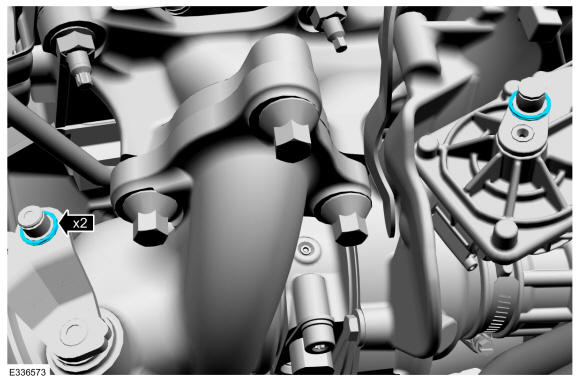

Install the new wastegate control actuator linkage wave washers.

Courtesy of FORD MOTOR COMPANY

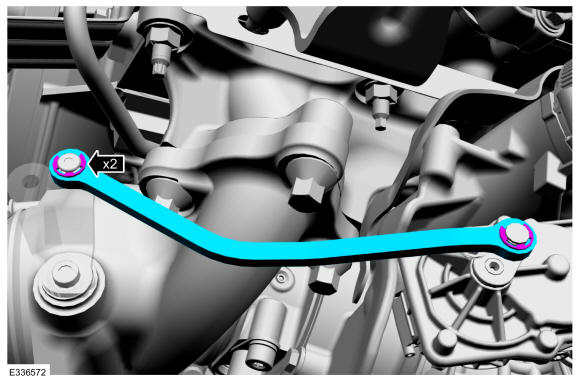

- The the wastegate control actuator linkage must be installed in the correct orientation with the long section of the linkage towards the actuator, and the curve to the outside away from the engine, as noted in the removal, or the linkage will bind.
- Install the new wastegate control actuator linkage, then install the new e-clips.
Courtesy of FORD MOTOR COMPANY

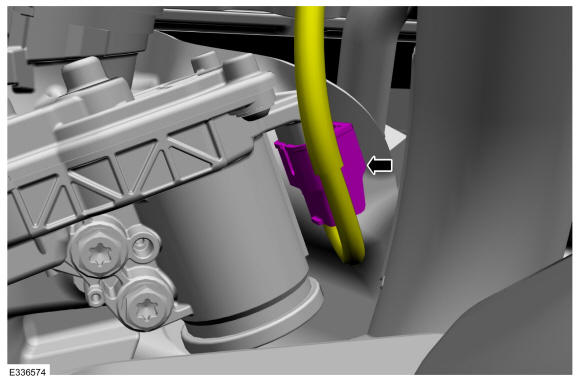

Connect the wastegate control actuator electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from wastegate mechanism when actuated. Failure to follow these instructions may result in personal injury.
- With the KOEO, using a diagnostic scan tool, clear the PCM DTC's and reset the KAM.
Install the right front fender splash shield. Refer to: Fender Splash Shield .
