Cluster And Panel Illumination

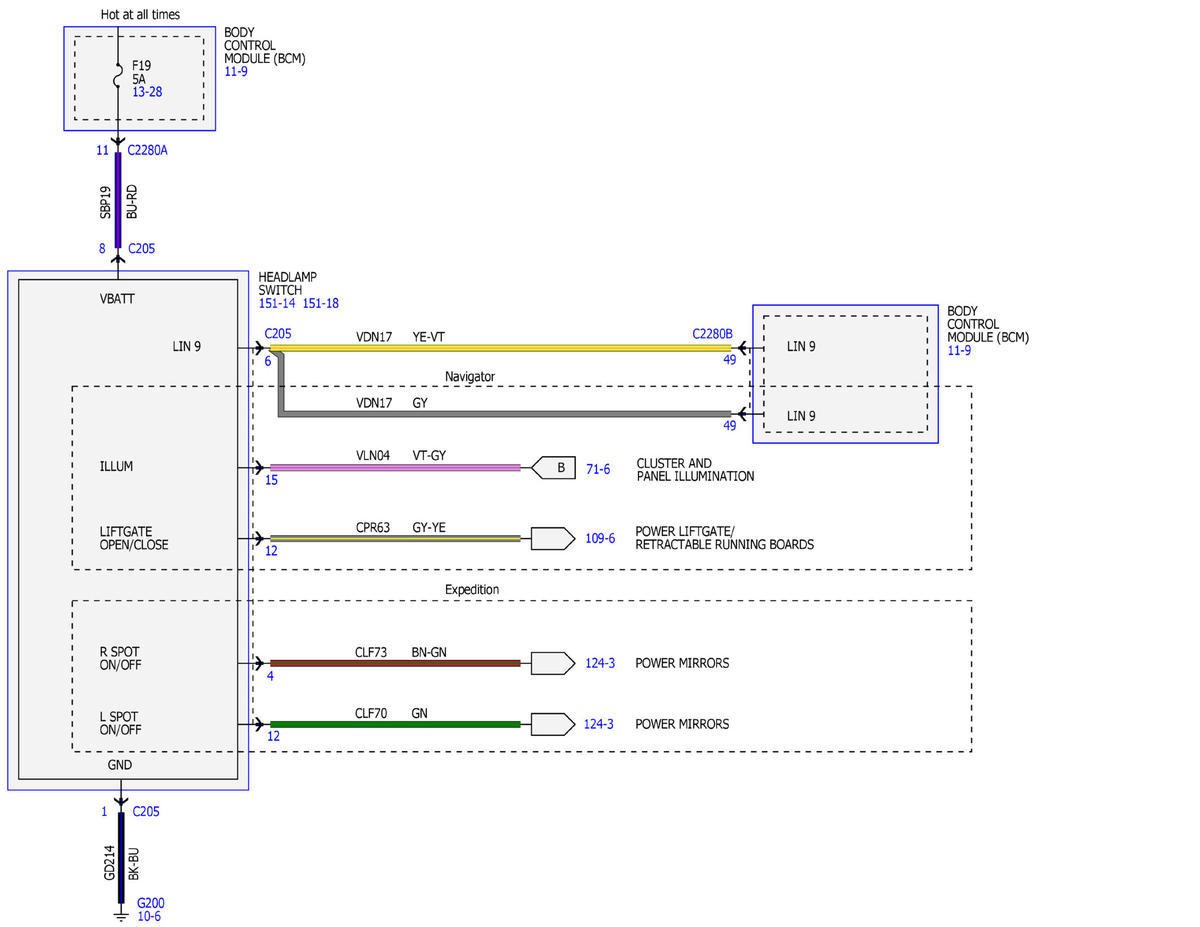

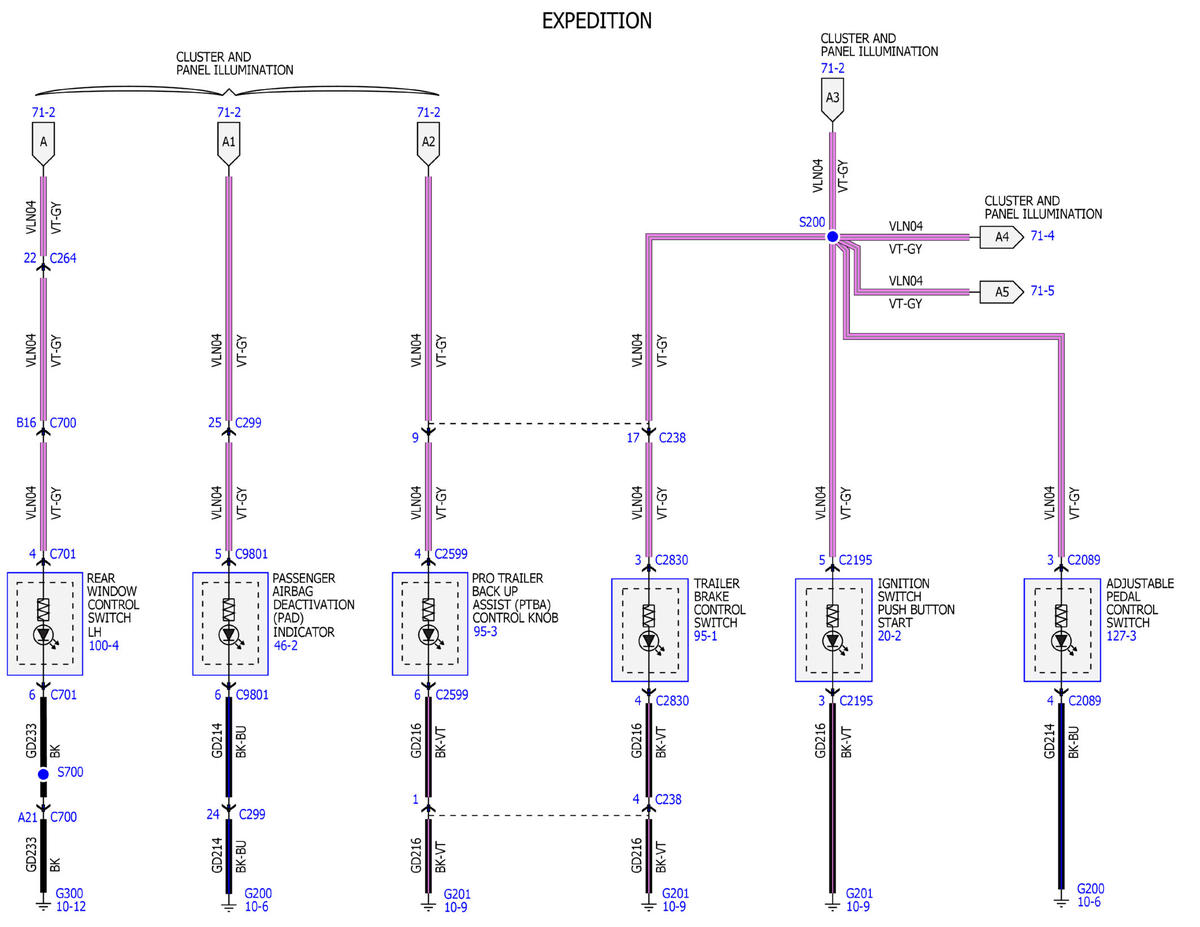

Fig 1: Cluster and Panel Illumination Wiring Diagrams (1 Of 10)
GFDWR184877Courtesy of FORD MOTOR COMPANY

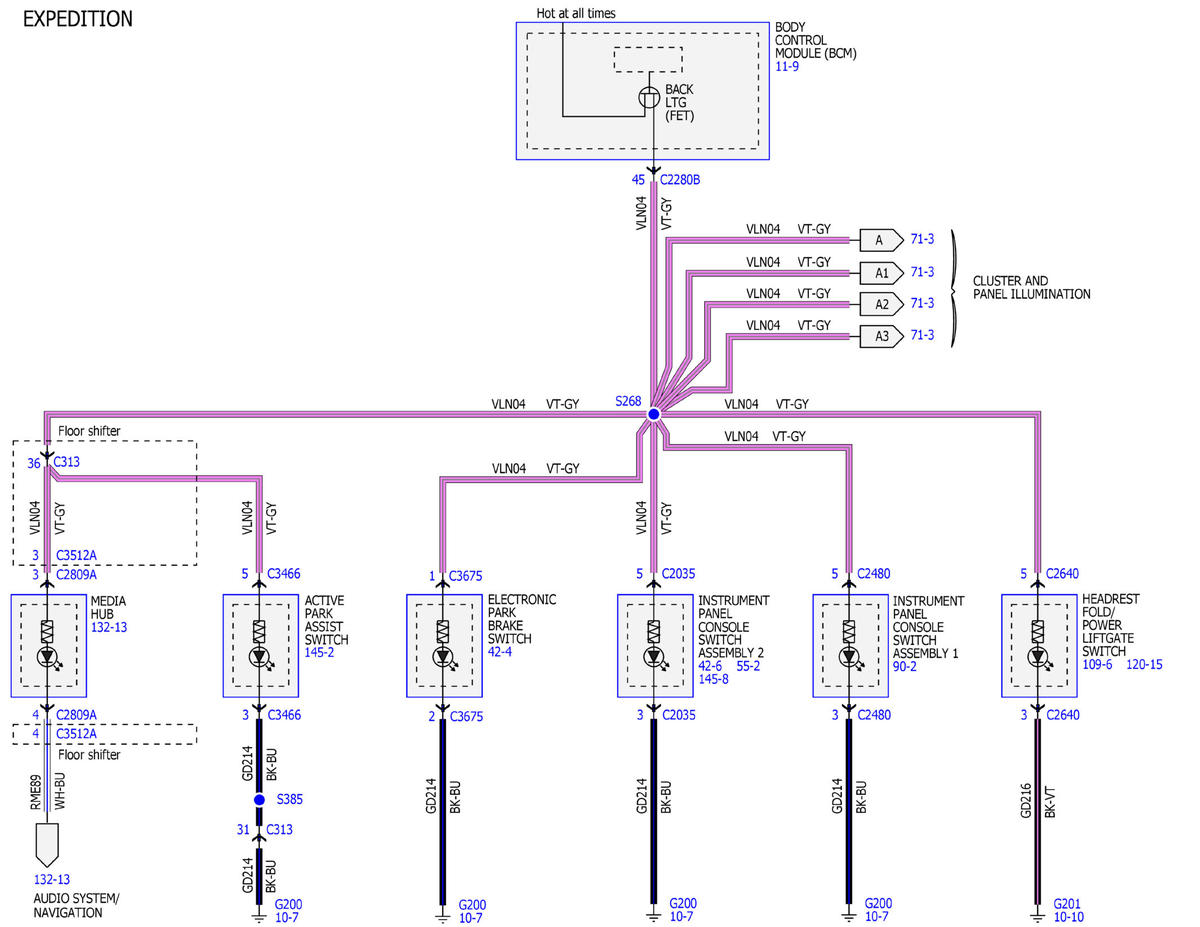

Fig 2: Cluster and Panel Illumination Wiring Diagrams (2 Of 10)
GFDWR184879Courtesy of FORD MOTOR COMPANY
Fig 3: Cluster and Panel Illumination Wiring Diagrams (3 Of 10)
GFDWR184880Courtesy of FORD MOTOR COMPANY

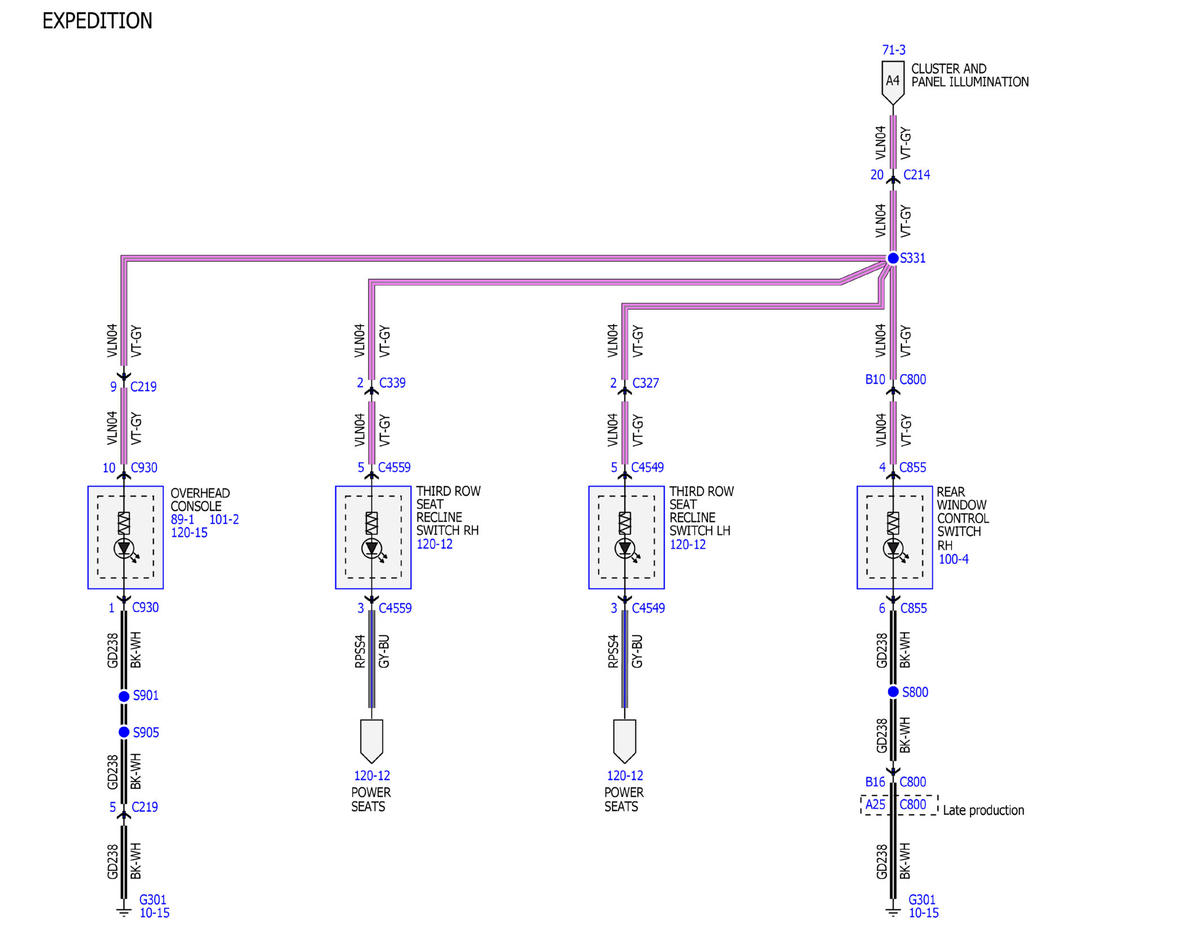

Fig 4: Cluster and Panel Illumination Wiring Diagrams (4 Of 10)
GFDWR184881Courtesy of FORD MOTOR COMPANY

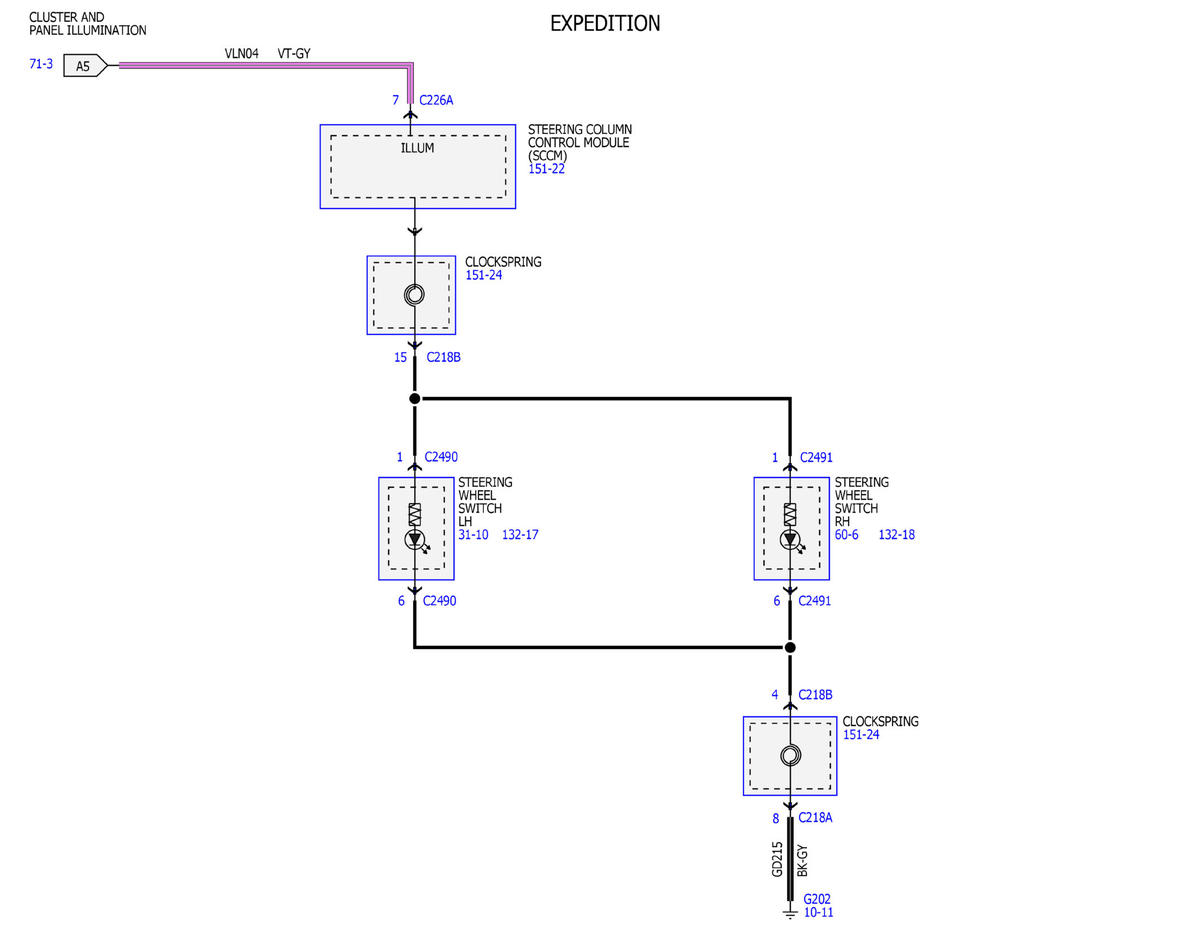

Fig 5: Cluster and Panel Illumination Wiring Diagrams (5 Of 10)
GFDWR184882Courtesy of FORD MOTOR COMPANY

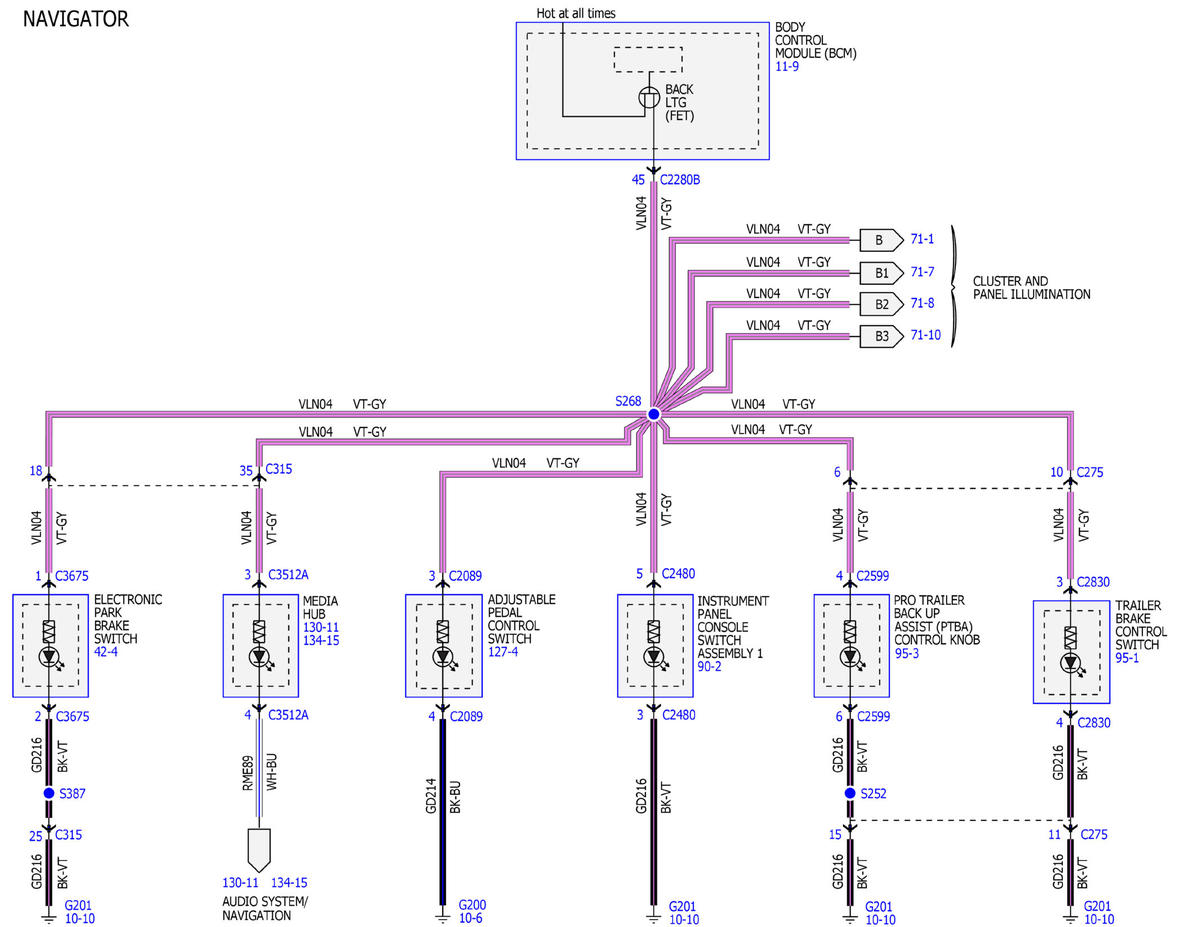

Fig 6: Cluster and Panel Illumination Wiring Diagrams (6 Of 10)
GFDWR184883Courtesy of FORD MOTOR COMPANY

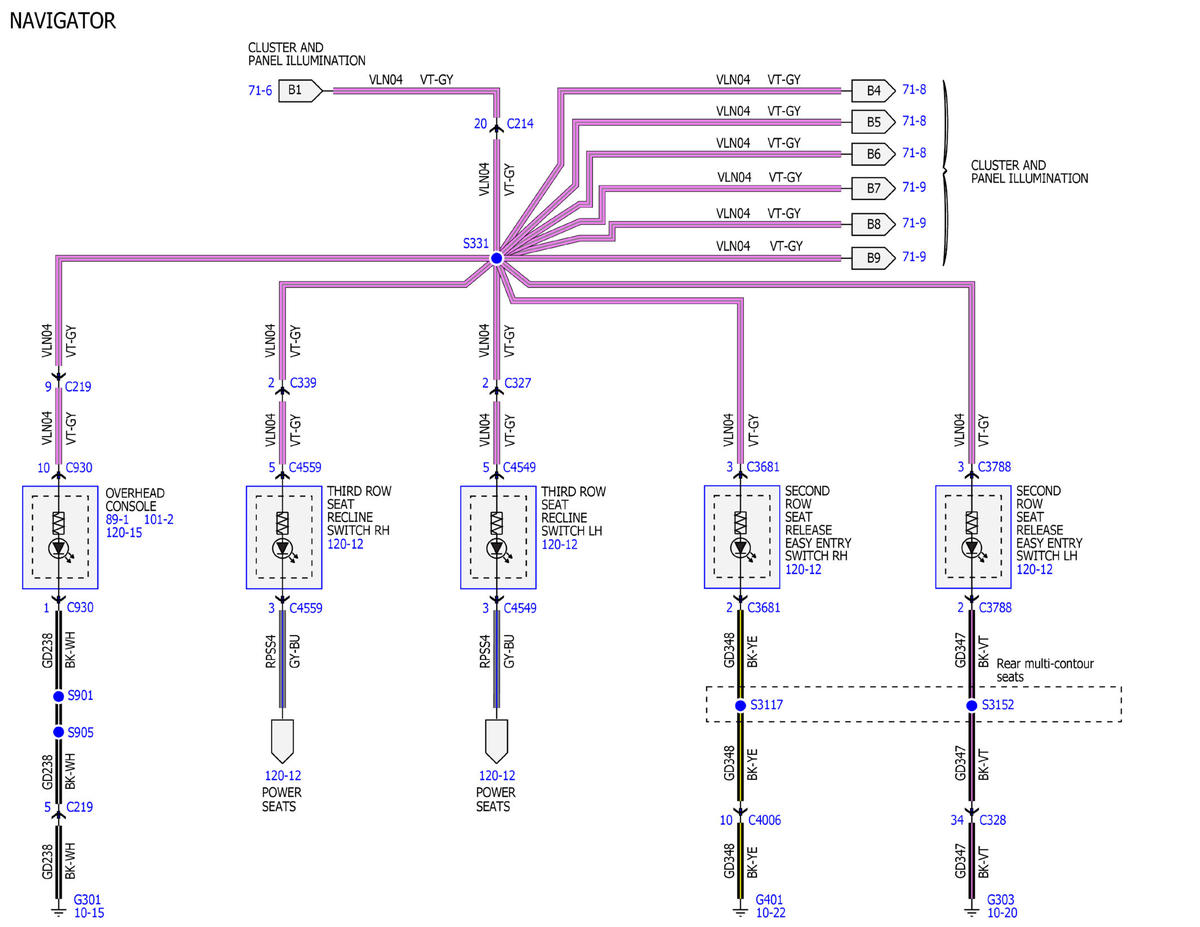

Fig 7: Cluster and Panel Illumination Wiring Diagrams (7 Of 10)
GFDWR184884Courtesy of FORD MOTOR COMPANY

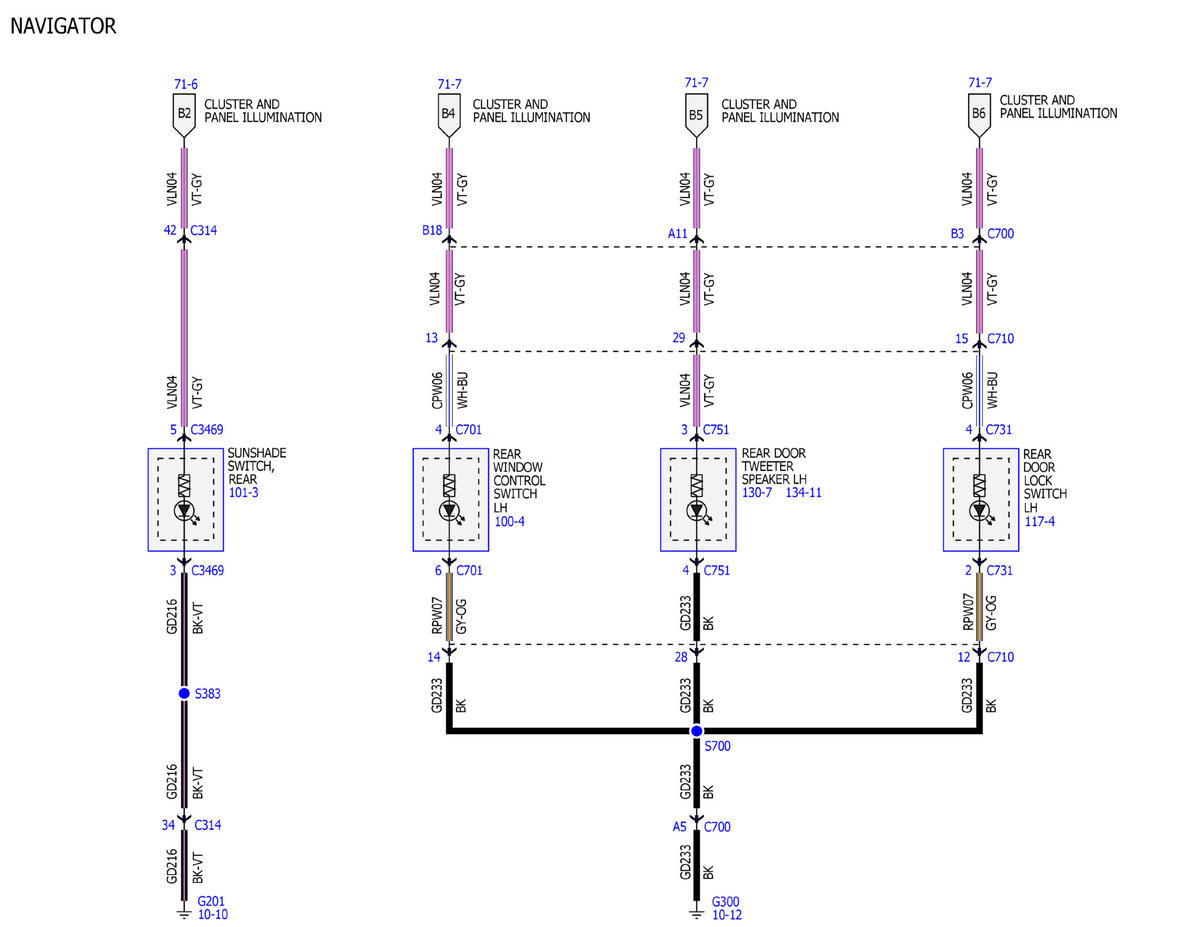

Fig 8: Cluster and Panel Illumination Wiring Diagrams (8 Of 10)
GFDWR184885Courtesy of FORD MOTOR COMPANY
Fig 9: Cluster and Panel Illumination Wiring Diagrams (9 Of 10)
GFDWR184886Courtesy of FORD MOTOR COMPANY

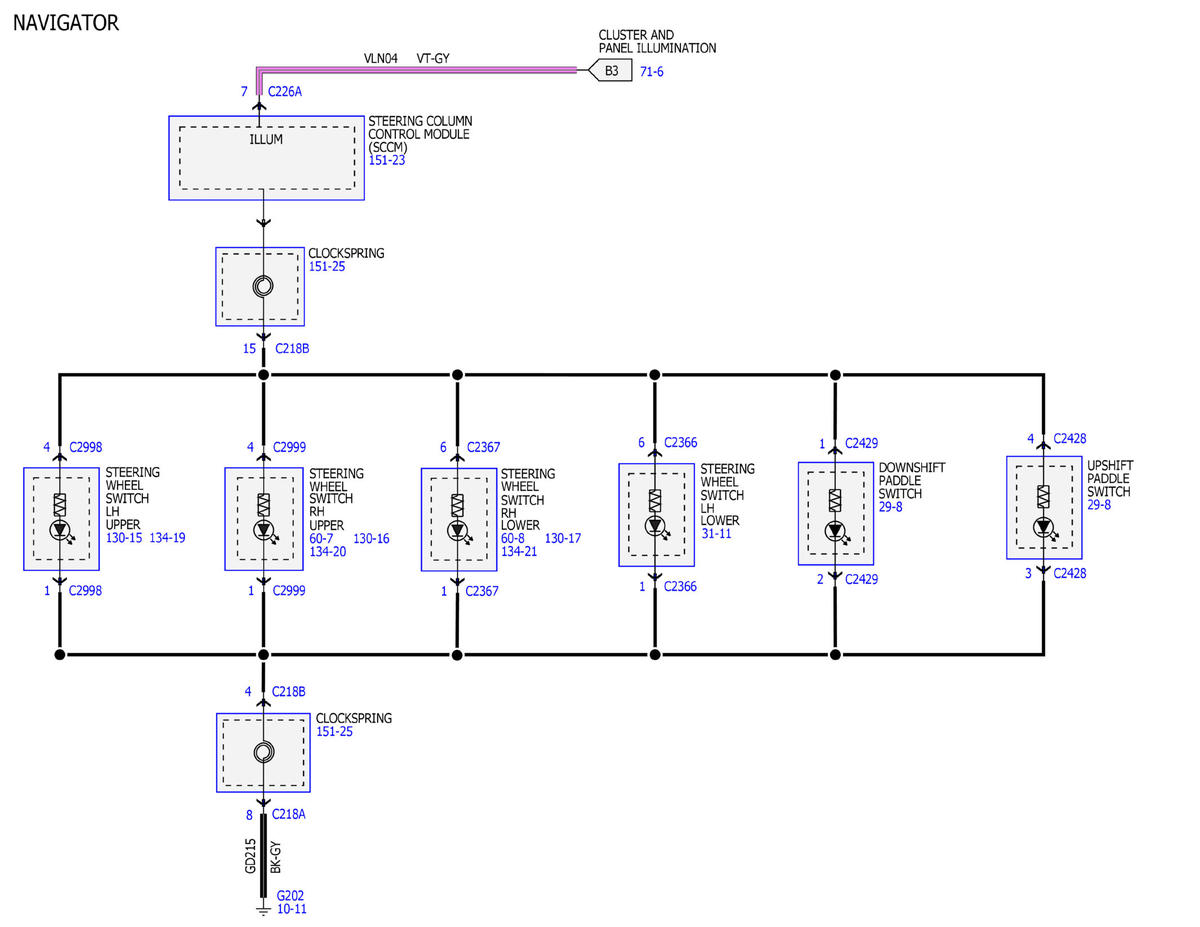

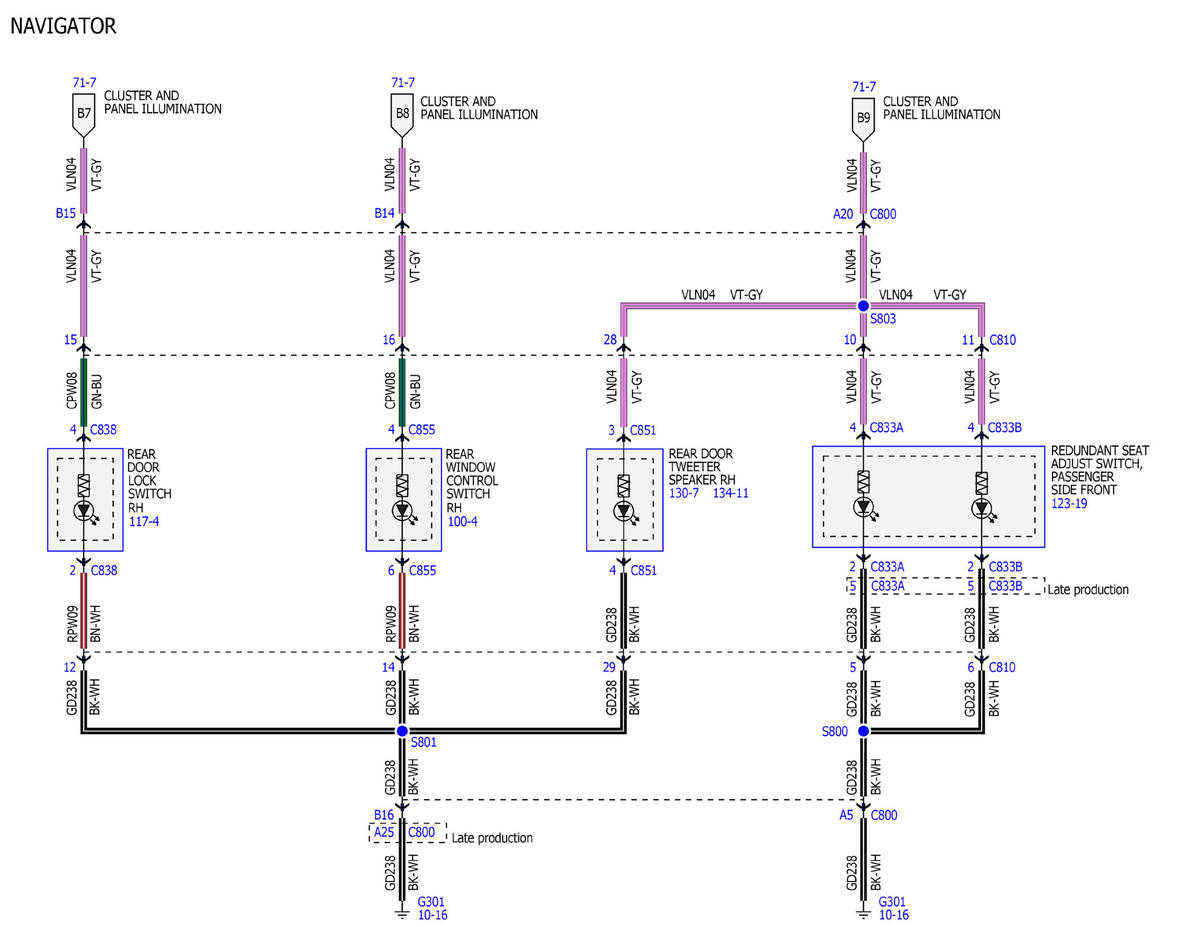

Fig 10: Cluster and Panel Illumination Wiring Diagrams (10 Of 10)
GFDWR184878Courtesy of FORD MOTOR COMPANY
