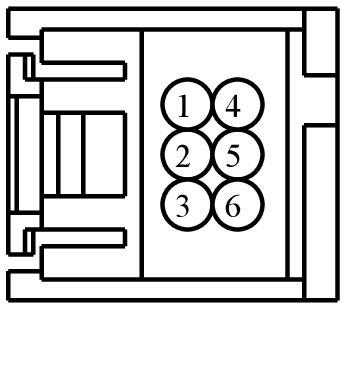

Connector End View C2195 - IGNITION SWITCH-PUSH BUTTON START

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2195	IGNITION SWITCH-PUSH BUTTON START	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	9U5T-14474-LA
2	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED	9U5T-14474-LA
3	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
4	SBP20 (GN-RD)	22	FUSE - 20 OR CIRCUIT BREAKER	9U5T-14474-LA
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
6	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-923

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-XA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Module - Adjustable Pedal Memory
• Module - Driver Door
• Radio
• Switch - Traction Control
