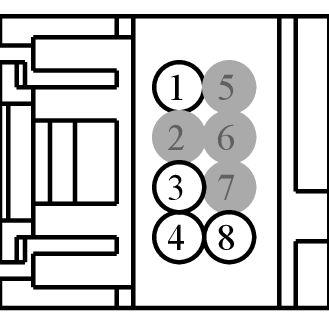

Connector End View C2877 - HEAD UP DISPLAY (HUD) MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2877	HEAD UP DISPLAY (HUD) MODULE	14N000			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP03 (BU-RD)	18	FUSE - 3 OR CIRCUIT BREAKER	3F2T-14474-RA
2	*	*	Not Used	N/A
3	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	3F2T-14474-SA
4	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	3F2T-14474-SA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	GD214 (BK-BU)	18	GROUND - INSTRUMENT PANEL STRUCTURE	3F2T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-945

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-RA

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Switch - Power Window - Driver
