Head Up Display (HUD) - Overview
Overview
The HUD serves as a supplemental display for driver information and advanced driver assistance features. All HUD information and warnings are displayed on the windshield and can be turned on, off and setup to display individual features using the RH steering wheel switches.
HUD

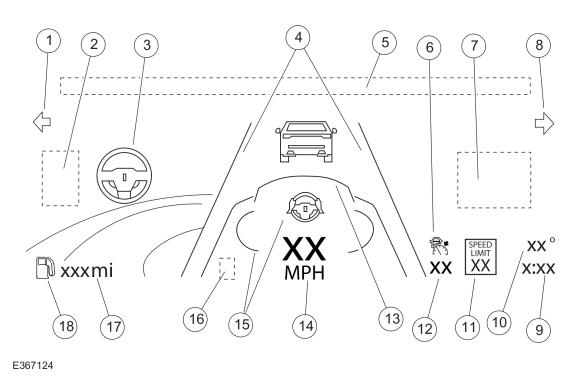

| Item | Description |
|---|---|
| 1 |
NOTE:
The BLIS indicator supersedes the LH turn indicator. LH turn signal/ BLIS indicator |
| 2 | Navigation display area |
| 3 | Highway assist display (part of advanced driver assist system) |
| 4 | Lane keeping assist display (part of advanced driver assist system) |
| 5 | Phone and audio information display area Warning information display area |
| 6 | ACC indicator (shown) Cruise control indicator |
| 7 | Driver information message display area ACC stop and go display area HUD adjustment control display area |
| 8 |
NOTE:
The BLIS indicator supersedes the RH turn indicator. RH turn signal/ BLIS indicator |
| 9 | Clock display |
| 10 | Outside air temperature display |
| 11 | Speed limit display (North America shown) |
| 12 | Cruise control/ACC set speed display |
| 13 | ACC follow and gap setting display Distance indication display |
| 14 | Digital speedometer |
| 15 | Lane centering aid display (part of advanced driver assist system) |
| 16 | Transmission range indication |
| 17 | DTE display |
| 18 | Low fuel warning indicator |
The following items displayed in the HUD can be turned on or off using the setup menu.
- Fuel information, time and outside air temperature.
- Cruise control
- Advanced driver assistance system:
- adaptive cruise control, lane centering aid and highway assist
- distance indication
- lane keeping system
The HUD setup menu allows the driver to setup the following:
- HUD brightness
- HUD position
- vertical
- horizontal
- image rotation
When an item that is displayed in the IPC is selected on in the HUD, the selected item is turned off in the IPC, except for the speedometer, which is reduced to a minimized display format. For all details about the HUD functionality and the display setup, refer to the Owner's Literature.
The HUD displays the following information:
- Advanced driver assist system
- ACC and stop and go
- Lane keeping assist
- Lane centering aid and highway assist
- Distance alert
- Audio information
- BLIS
- Clock
- CTA
- Cruise control indication
- Digital speedometer
- DTE
- Low fuel indication
- Navigation
- Outside air temperature
- Speed limit sign
- Transmission range selection indication
- LH and RH turn indication
