Fuse And Relay Location

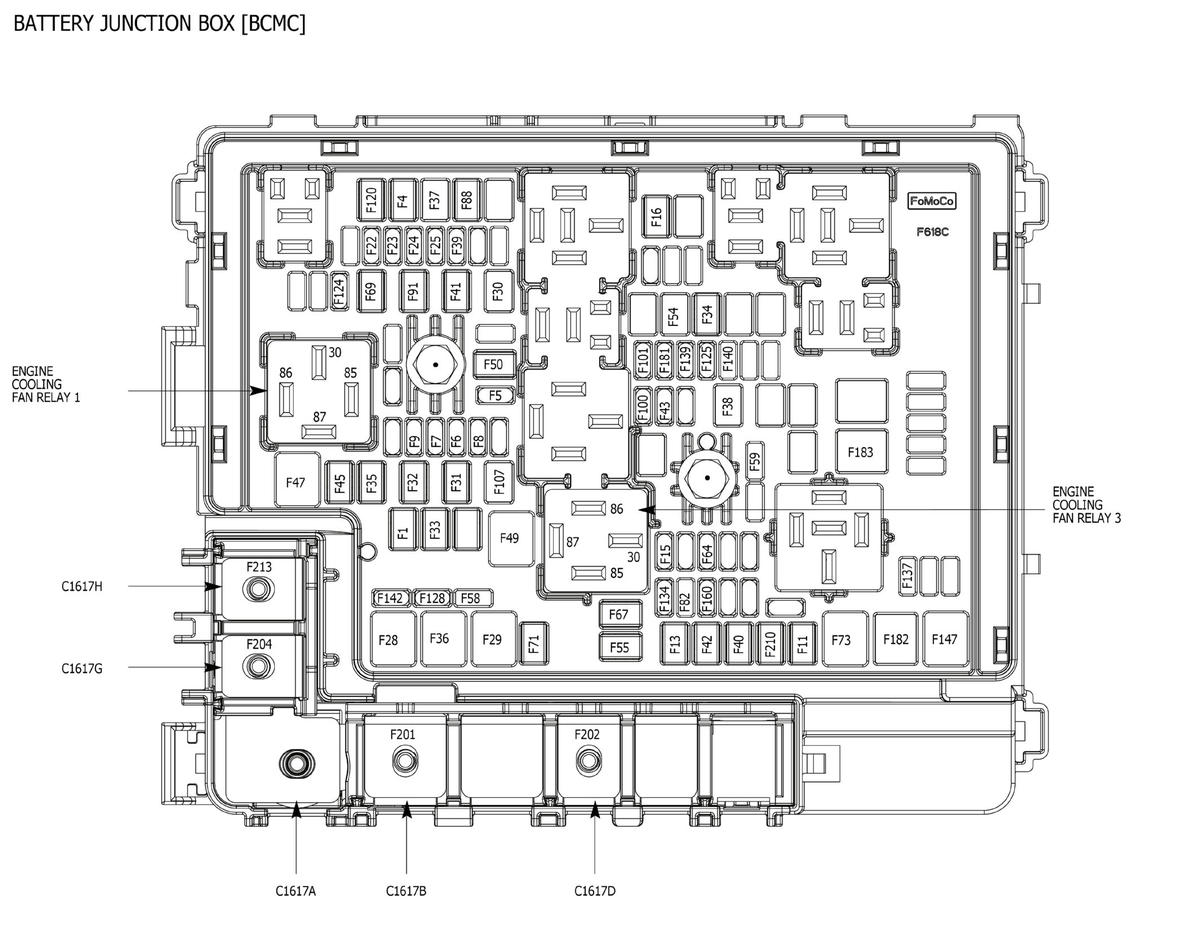

Fig 1: Battery Junction Box (BCMC) Components Location (1 Of 2)
GFDWR184741Courtesy of FORD MOTOR COMPANY

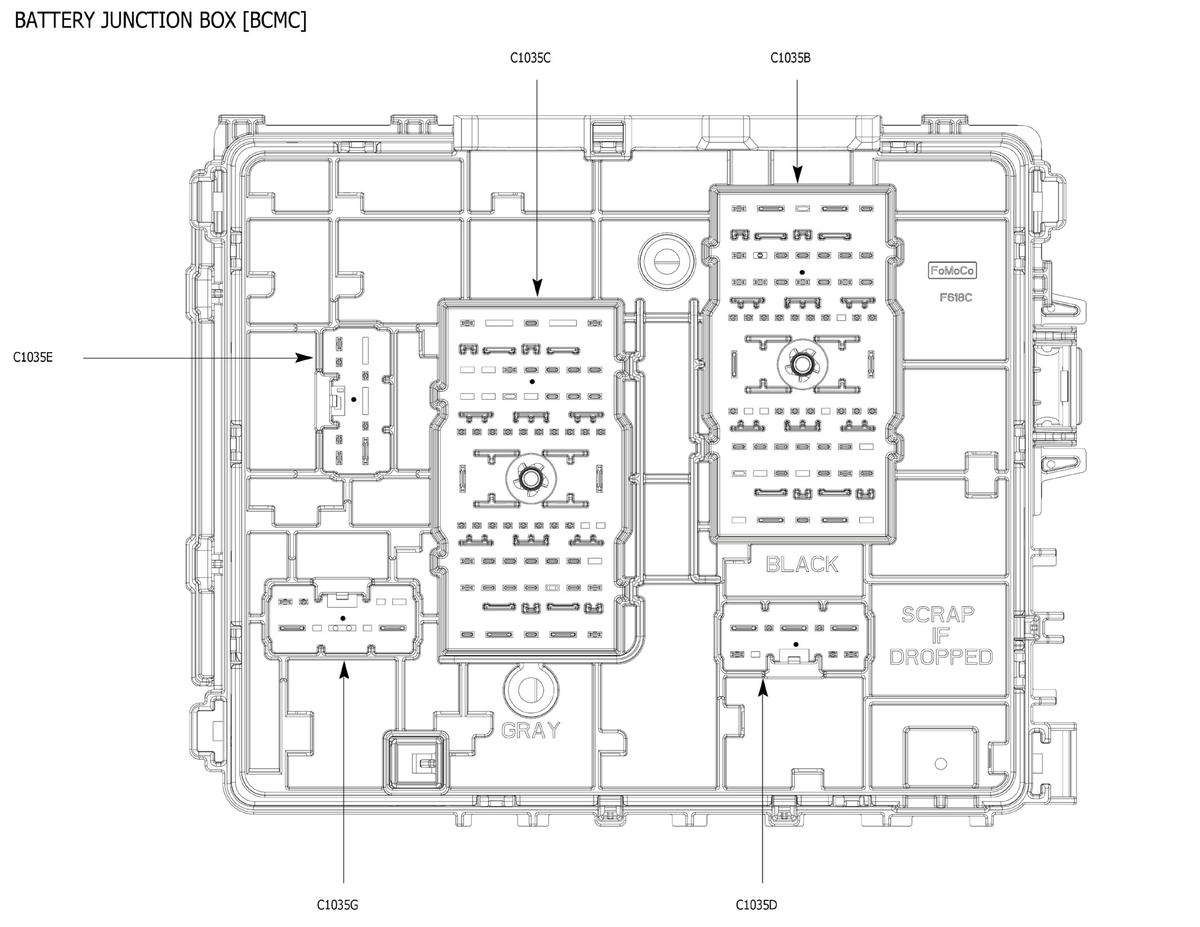

Fig 2: Battery Junction Box (BCMC) Components Location (2 Of 2)
GFDWR184744Courtesy of FORD MOTOR COMPANY

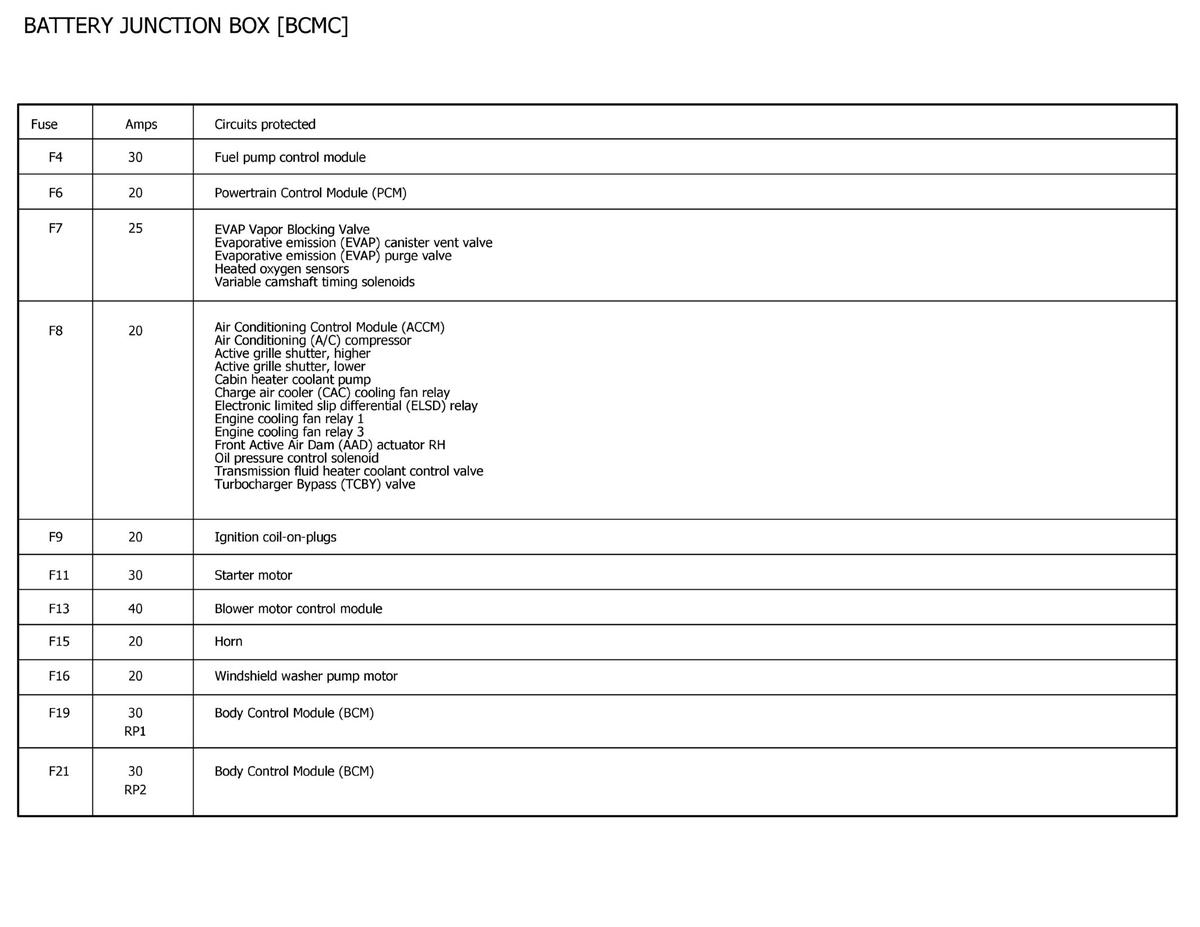

Fig 3: Battery Junction Box (BCMC) Components Location Legend (1 Of 6)
GFDWR184745Courtesy of FORD MOTOR COMPANY

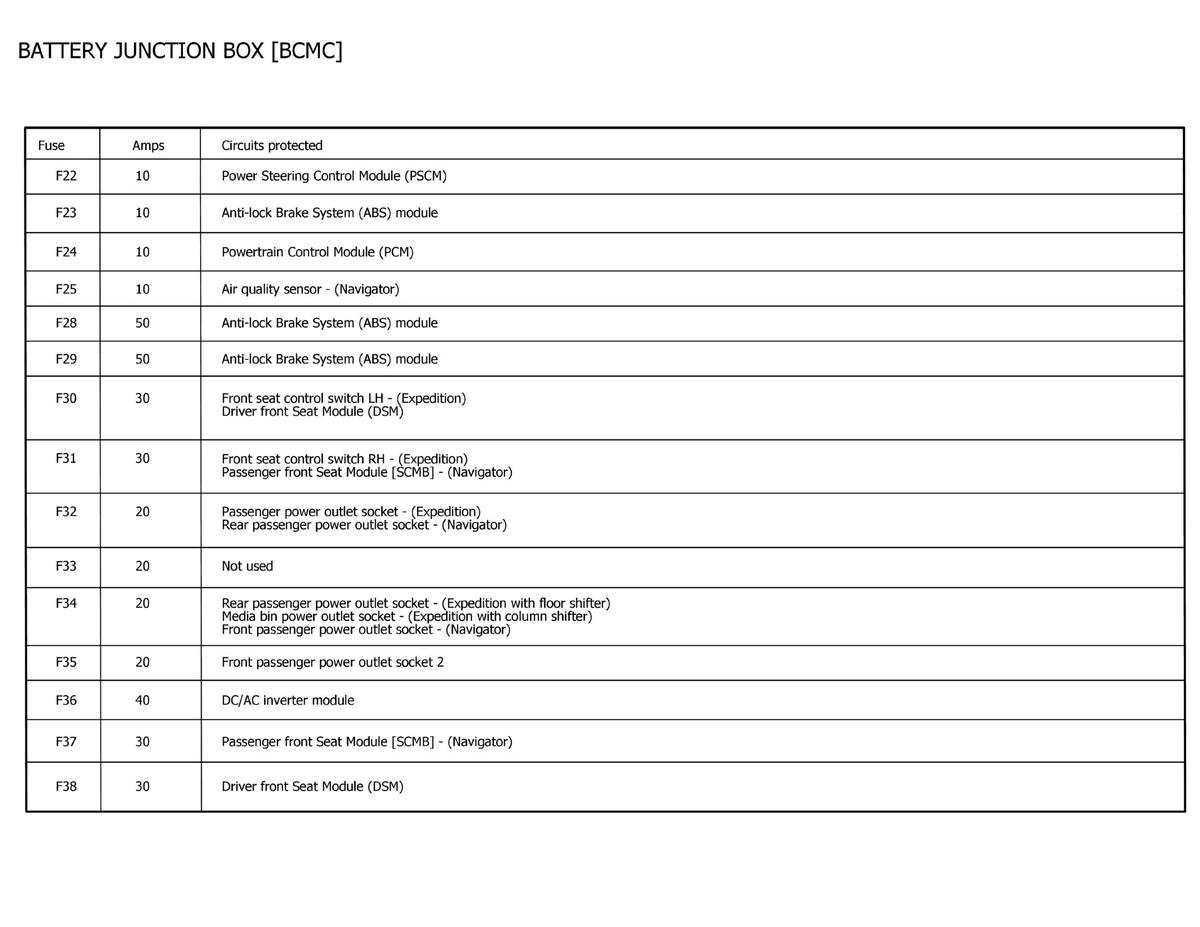

Fig 4: Battery Junction Box (BCMC) Components Location Legend (2 Of 6)
GFDWR184746Courtesy of FORD MOTOR COMPANY

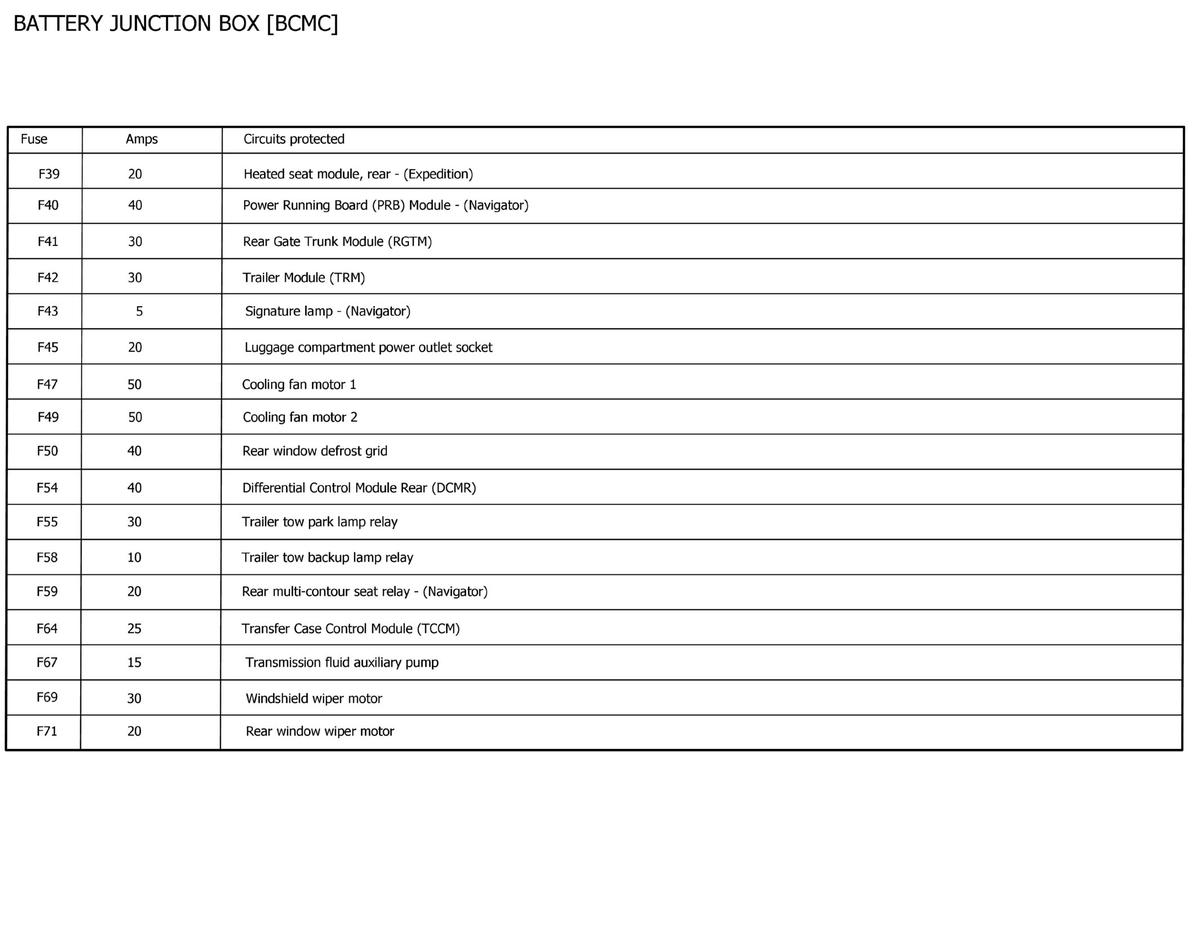

Fig 5: Battery Junction Box (BCMC) Components Location Legend (3 Of 6)
GFDWR184747Courtesy of FORD MOTOR COMPANY

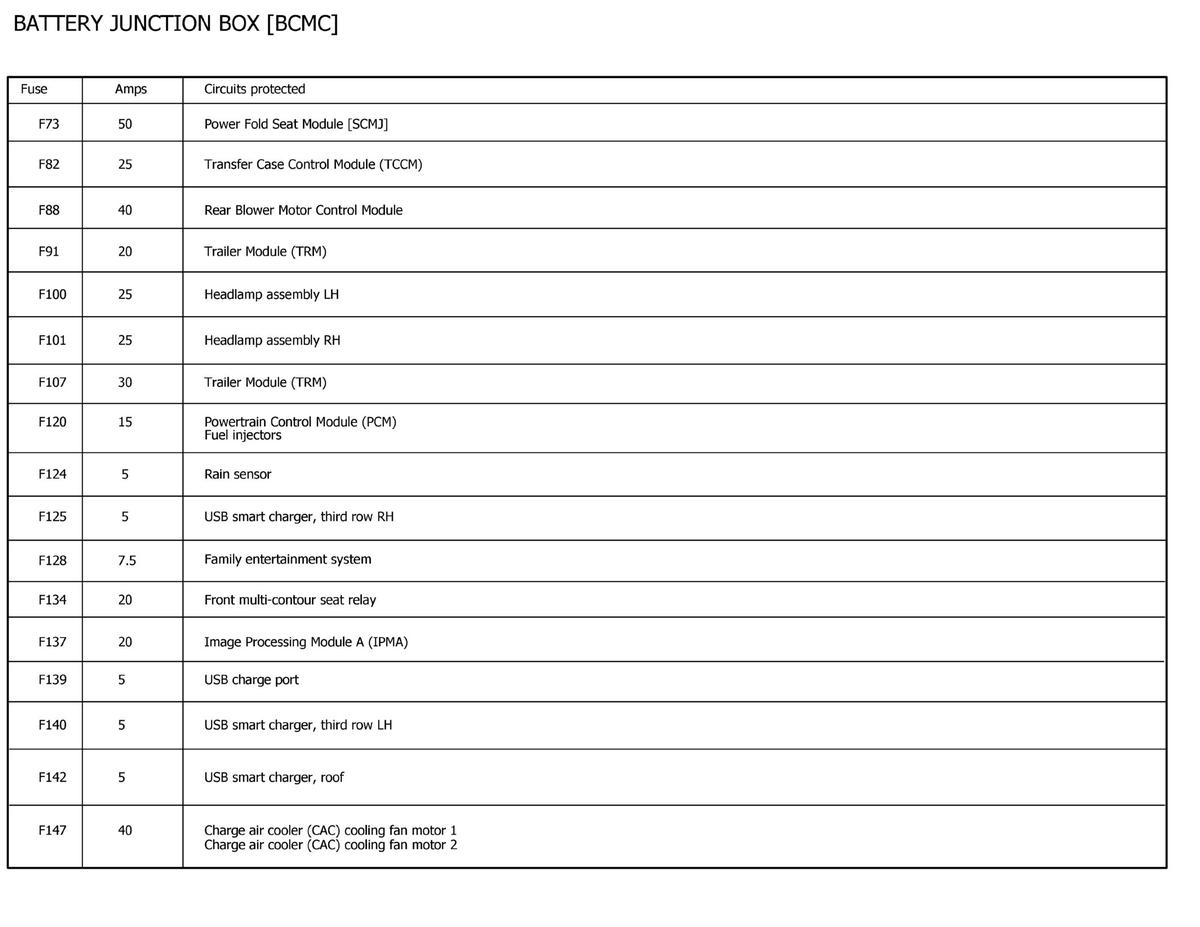

Fig 6: Battery Junction Box (BCMC) Components Location Legend (4 Of 6)
GFDWR184748Courtesy of FORD MOTOR COMPANY

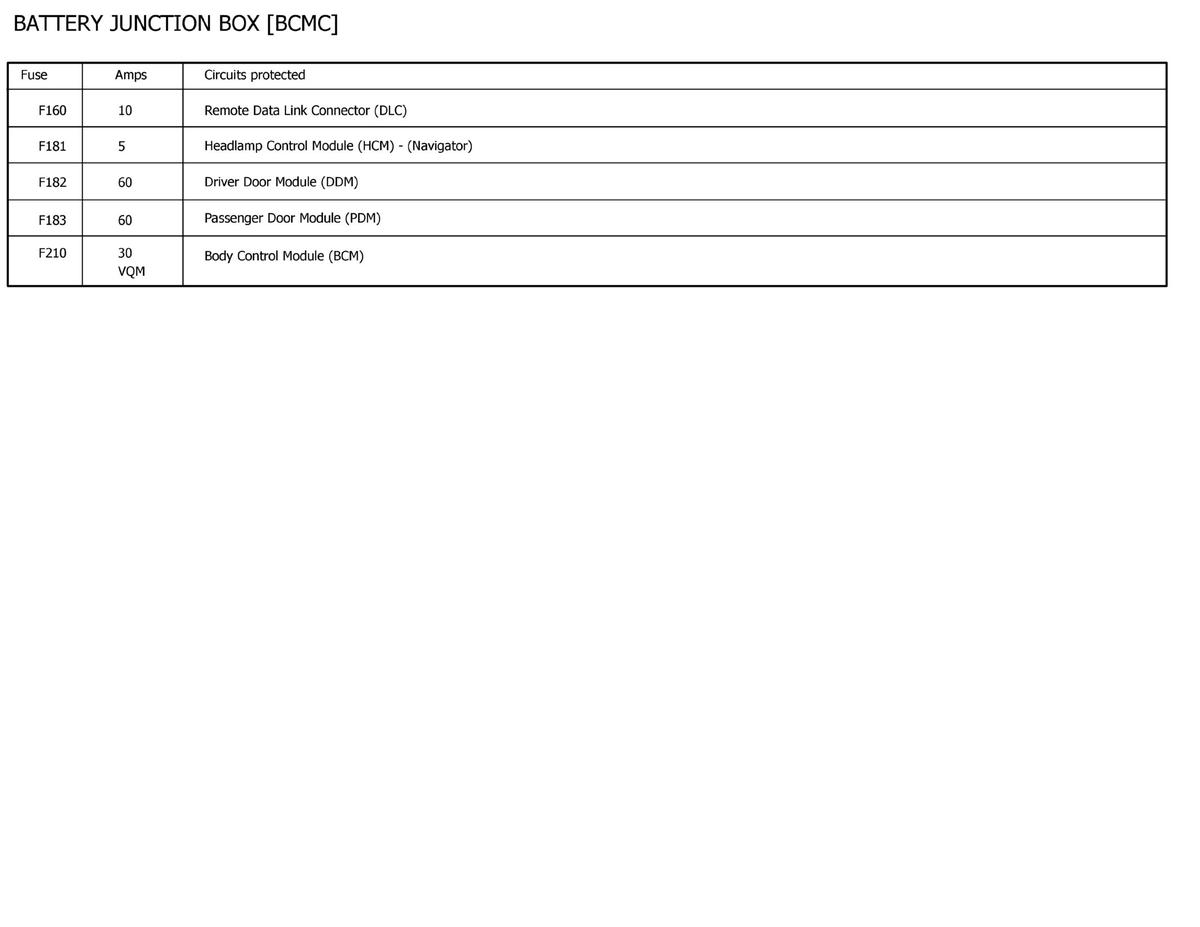

Fig 7: Battery Junction Box (BCMC) Components Location Legend (5 Of 6)
GFDWR184749Courtesy of FORD MOTOR COMPANY

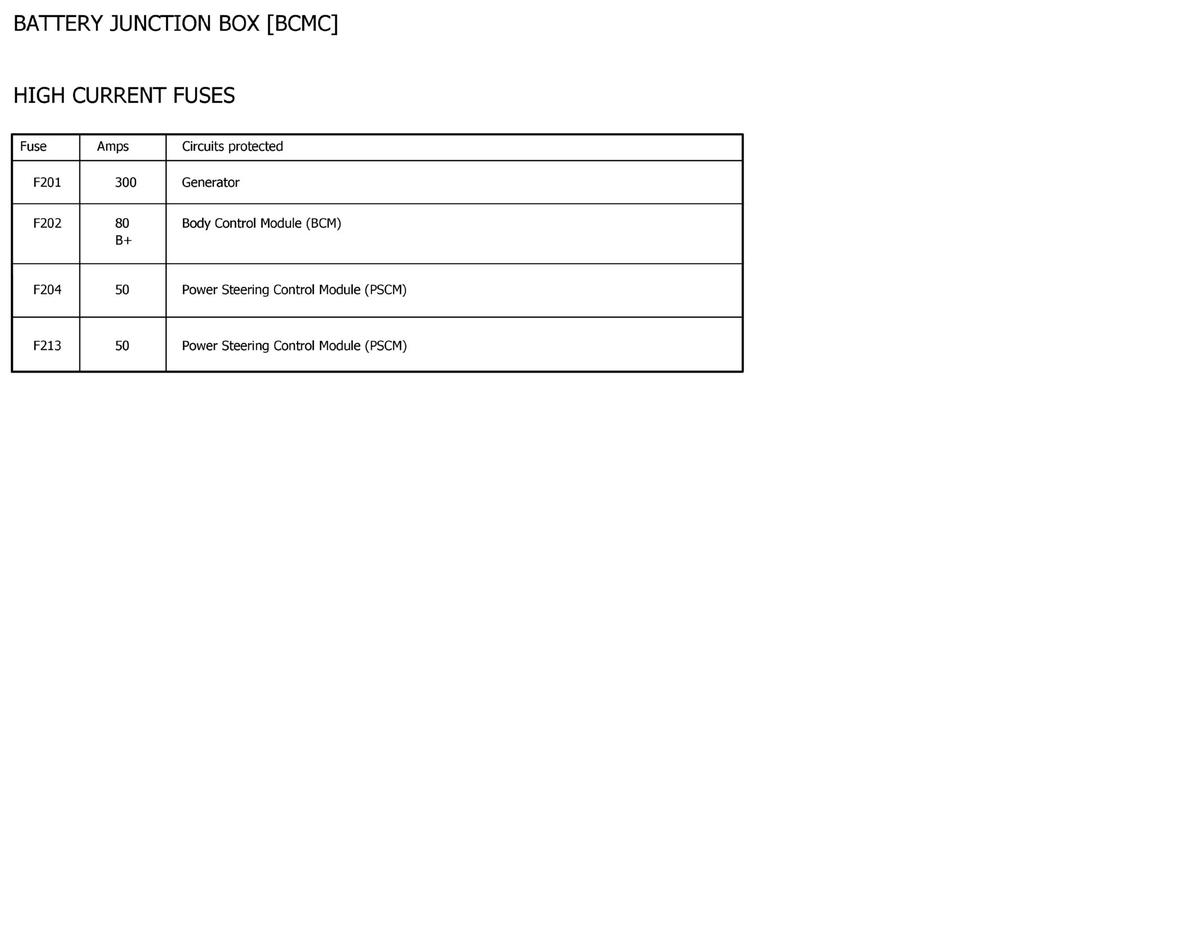

Fig 8: Battery Junction Box (BCMC) Components Location Legend (6 Of 6)
GFDWR184750Courtesy of FORD MOTOR COMPANY

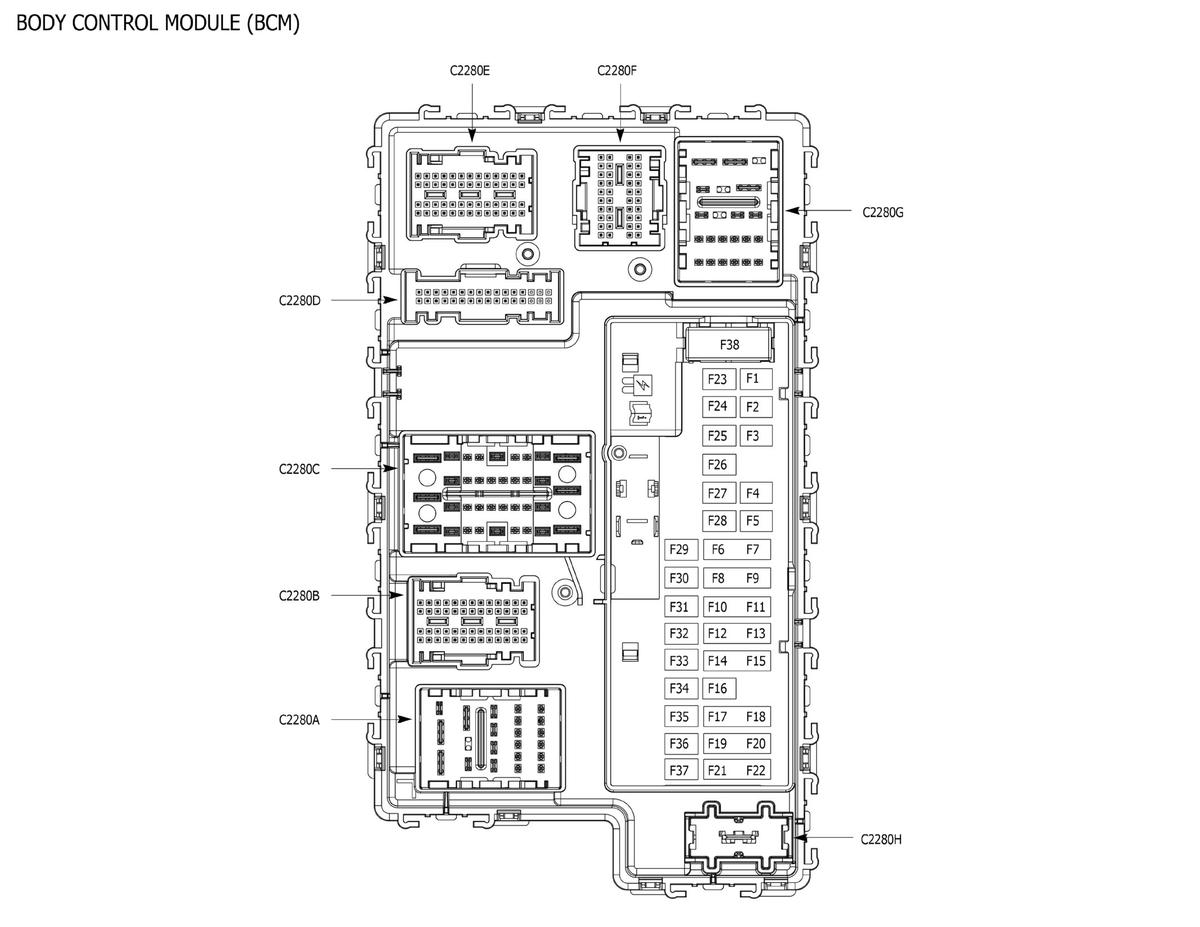

Fig 9: Battery Control Module (BCM) Components Location
GFDWR184751Courtesy of FORD MOTOR COMPANY

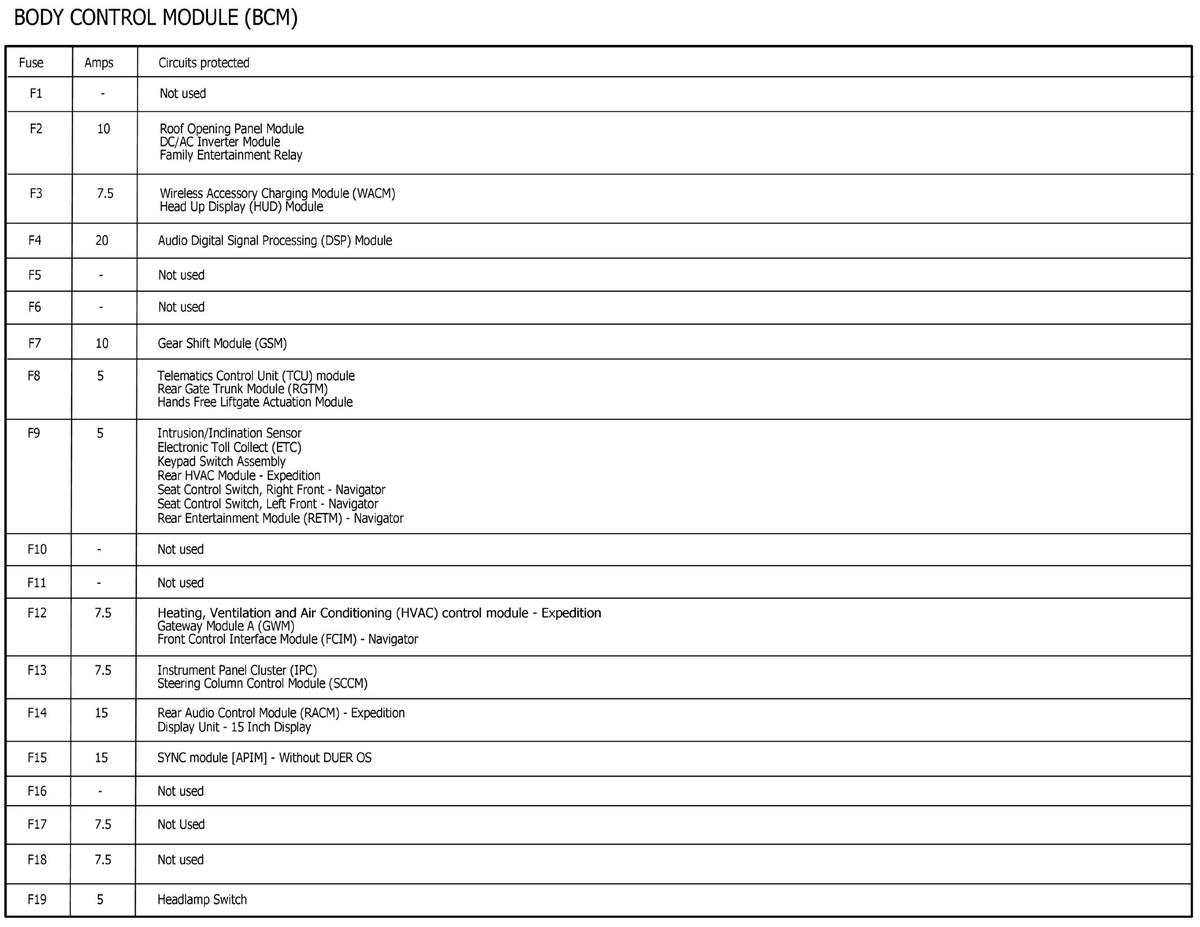

Fig 10: Body Control Module (BCM) Components Location Legend (1 Of 2)
GFDWR184742Courtesy of FORD MOTOR COMPANY

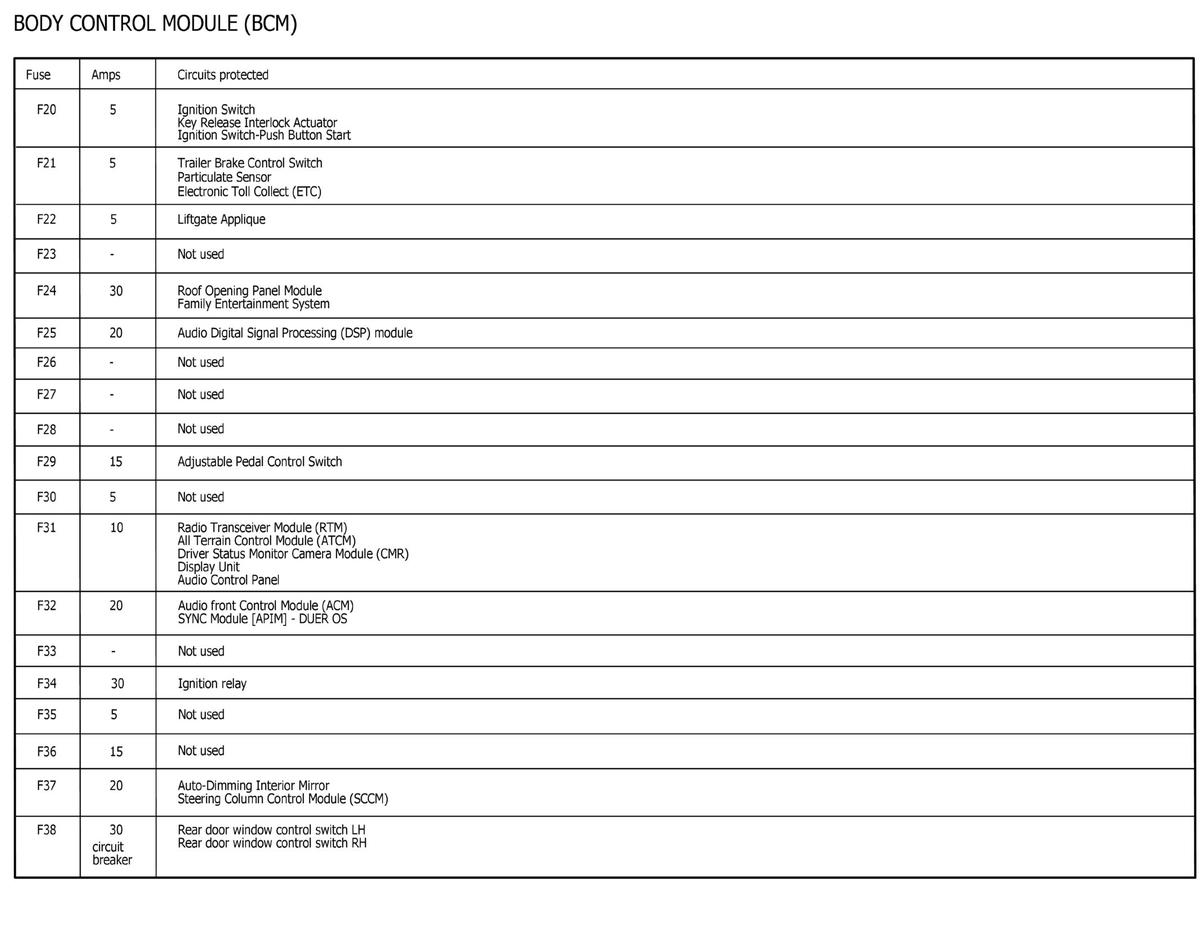

Fig 11: Body Control Module (BCM) Components Location Legend (2 Of 2)
GFDWR184743Courtesy of FORD MOTOR COMPANY
