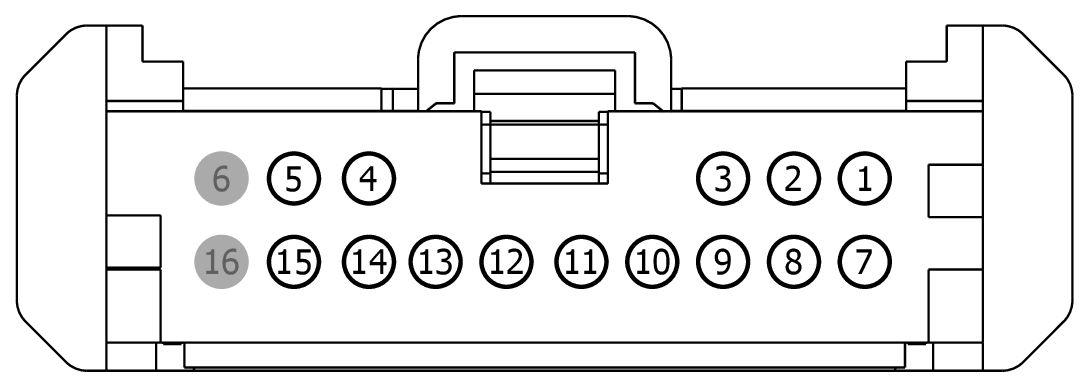

Connector End View C218B - CLOCKSPRING
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C218B |
CLOCKSPRING |
BK |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CET43 (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
N/A |
| 2 |
CET42 (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
N/A |
| 3 |
RE472 (*) |
* |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN) |
N/A |
| 4 |
GD215 (*) |
* |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
N/A |
| 5 |
CRH02 (*) |
* |
SWITCH - HORN |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
LX103 (*) |
* |
A/D CHANNEL 1 |
N/A |
| 8 |
LX104 (*) |
* |
A/D CHANNEL 2 |
N/A |
| 9 |
RX101 (*) |
* |
RETURN LEFT |
N/A |
| 10 |
LX105 (*) |
* |
A/D CHANNEL 3 |
N/A |
| 11 |
LX103 (*) |
* |
A/D CHANNEL 1 |
N/A |
| 12 |
LX104 (*) |
* |
A/D CHANNEL 2 |
N/A |
| 13 |
RX102 (*) |
* |
RETURN RIGHT |
N/A |
| 14 |
LX105 (*) |
* |
A/D CHANNEL 3 |
N/A |
| 15 |
VLN04 (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
