Connector End View C218A - CLOCKSPRING

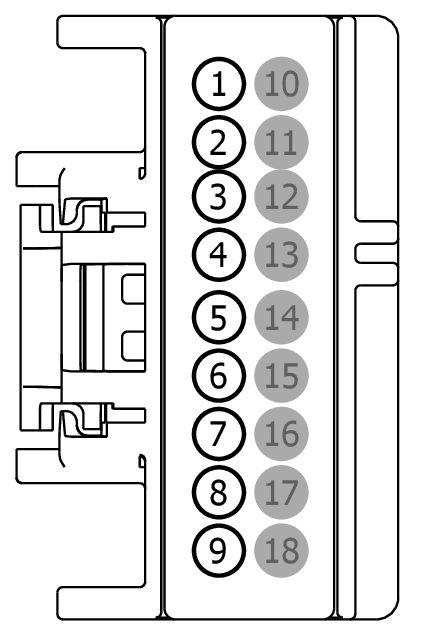

Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C218A | CLOCKSPRING | 14401 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1L2T-14474-CA | DU2Z-14474-BA | 0.64 |
| 1L2T-14474-DA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR101 (VT-BN) | 18 | CTRL MOD. - AIR BAG DRIVER 1+ | 1L2T-14474-CA | ||||
| 2 | RR101 (YE-GN) | 18 | CTRL MOD. - AIR BAG DRIVER 1 - | 1L2T-14474-CA | ||||
| 3 | CR102 (BU) | 18 | CTRL MOD. - AIR BAG DRIVER 2 + | 1L2T-14474-CA | ||||
| 4 | RR102 (WH) | 18 | CTRL MOD. - AIR BAG DRIVER 2 - | 1L2T-14474-CA | ||||
| 5 | CET43 (GY) | 22 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | 1L2T-14474-DA | ||||
| 6 | CET42 (GN-VT) | 22 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | 1L2T-14474-DA | ||||
| 7 | RE407 (YE-VT) | 22 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | 1L2T-14474-DA | ||||
| 8 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | 9U5T-14474-LA | 1L2T-14474-DA | ||||
| 9 | RRH02 (GN-WH) | 22 | CTRL MOD. - SWITCH HORN | 9U5T-14474-LA | 1L2T-14474-DA | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
| 17 | * | * | Not Used | N/A | ||||
| 18 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1148
Service Part Number:
3U2Z-14S411-HKB
Gauge:
18
Pin material:
Silver
Cavities:
18
Vehicle Uses:
- Module - Tire Pressure
- Radio
