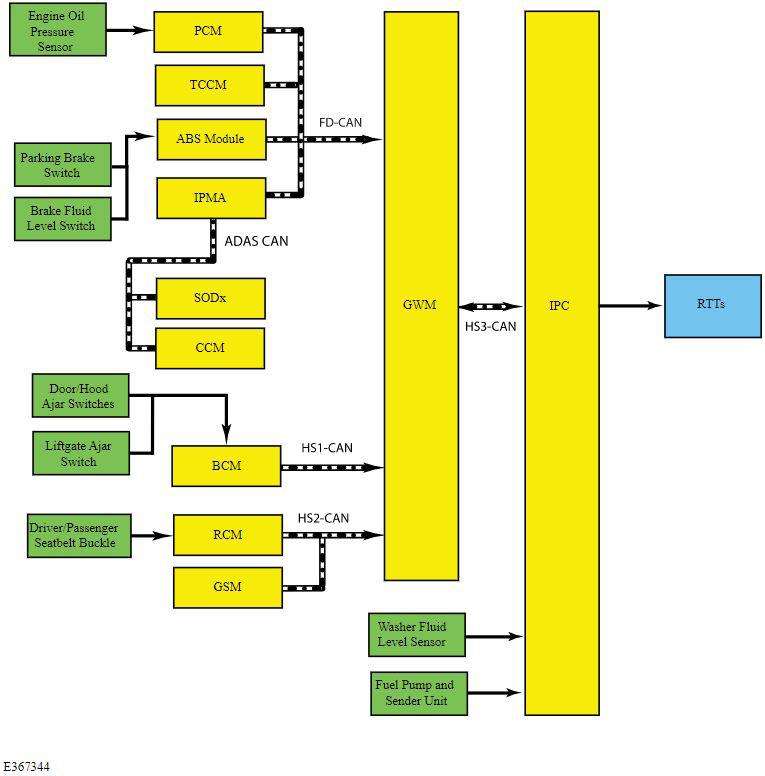

System Diagram - RTT Indicators
RTT Indicators

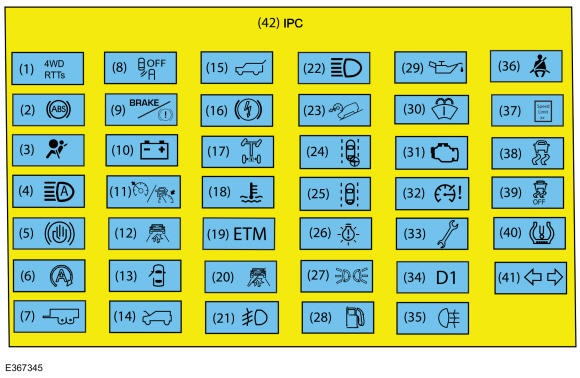

Reconfigurable Telltales (RTTs)
| Item | Description |
|---|---|
| 1 | 4WD Reconfigurable Telltales (RTTs) (2H, 4H, 4L, 4A) |
| 2 | ABS |
| 3 | Airbag |
| 4 | Auto high beam/Adaptive high beam |
| 5 | Auto hold |
| 6 | Auto stop-start |
| 7 | Auto tow haul |
| 8 | BLIS off |
| 9 | Brake warning |
| 10 | Charging system |
| 11 | Cruise control/adaptive cruise control |
| 12 | Distance indication (Selected Calm screen only) |
| 13 | Door ajar |
| 14 | Hood ajar |
| 15 | Liftgate ajar |
| 16 | Electric park brake |
| 17 | ELD |
| 18 | Engine over-temperature |
| 19 | Engineering test mode (ETM) |
| 20 | Forward collision system warning |
| 21 | Front fog lamps |
| 22 | High beams |
| 23 | Hill descent control ready |
| 24 | Lane centering aid |
| 25 | Lane keeping system |
| 26 | LED low beam malfunction |
| 27 | Lights on |
| 28 | Low fuel |
| 29 | Low engine oil pressure |
| 30 | Low washer fluid |
| 31 | MIL (check engine) |
| 32 | Overspeed warning (Gulf Cooperative Countries [GCC]) |
| 33 | Powertrain malfunction (wrench) |
| 34 | Progressive range select |
| 35 | Rear fog lamp (China only) |
| 36 | Seatbelt/Belt-Minder |
| 37 | Speed sign |
| 38 | Stability-traction control (sliding car icon) |
| 39 | Stability-traction control disabled (sliding car OFF icon) |
| 40 | TPMS |
| 41 | LH/ RH turn indicator |
| 42 | IPC |
