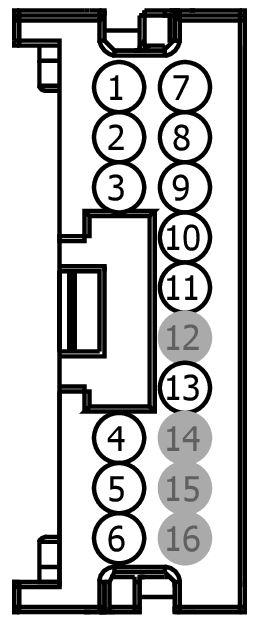

Connector End View C930 - OVERHEAD CONSOLE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C930 | OVERHEAD CONSOLE | BK | 14334 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | GU5T-14474-KA | ||||
| 2 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | GU5T-14474-KA | ||||
| 3 | CLN70 (BN-GN) | 22 | SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1 | GU5T-14474-KA | ||||
| 4 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | GU5T-14474-KA | ||||
| 5 | CPR31 (VT-BN) | 22 | SWITCH - MOON/SUN ROOF OPEN | GU5T-14474-KA | ||||
| 6 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | GU5T-14474-KA | ||||
| 7 | CR195 (YE-BU) | 22 | CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER | GU5T-14474-KA | ||||
| 8 | CR190 (GY-BU) | 22 | CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF | GU5T-14474-KA | ||||
| 9 | CR189 (BU-WH) | 22 | CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON | GU5T-14474-KA | ||||
| 10 | VLN33 (GY) | 22 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | GU5T-14474-KA | ||||
| 11 | CPR85 (GN-WH) | 22 | SWITCH - SHADE MOON/SUN ROOF CLOSE | GU5T-14474-KA | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | CPR86 (GY-BU) | 22 | SWITCH - SHADE MOON/SUN ROOF OPEN | GU5T-14474-KA | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1643
Service Part Number:
LU2Z-14S411-UA
Gauge:
22
Pin material:
Tin (greased)
Cavities:
16
Vehicle Uses:
- Lamp - Dome/Map
- Switch - Seat (driver)
- Switch - Seat (passenger)
- Switch - Seat Passenger Side (2nd Row)
