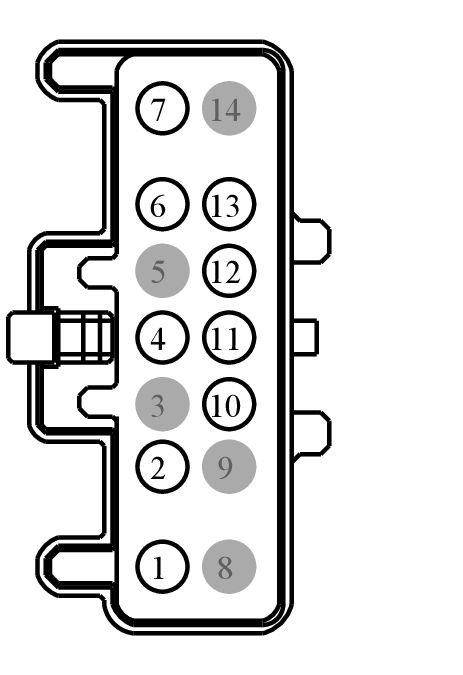

Connector End View C921 - ROOF OPENING PANEL MOTOR ASSEMBLIES

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C921	ROOF OPENING PANEL MOTOR ASSEMBLIES	GN	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP24 (VT-RD)	12	FUSE - 24 OR CIRCUIT BREAKER	97BG-14421-BCA
2	CPR31 (VT-BN)	22	SWITCH - MOON/SUN ROOF OPEN	97BG-14421-AAB
3	*	*	Not Used	N/A
4	CPR40 (YE-OG)	22	SWITCH - MOON/SUN ROOF CLOSE	97BG-14421-AAB
5	*	*	Not Used	N/A
6	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	97BG-14421-AAB
7	GD349 (BK-GY)	14	GROUND - PILLAR D LEFT	97BG-14421-BCA
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	CPW01 (BN-BU)	22	CTRL MOD. - POWER WINDOW GLOBAL SET +	97BG-14421-AAB
11	CPR86 (GY-BN)	22	SWITCH - SHADE MOON/SUN ROOF OPEN	97BG-14421-AAB
12	VMC05 (VT-OG)	22	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	97BG-14421-AAB
13	CPR85 (GN-WH)	22	SWITCH - SHADE MOON/SUN ROOF CLOSE	97BG-14421-AAB
14	*	*	Not Used	N/A
