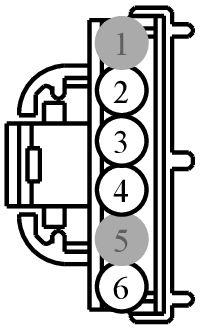

Connector End View C801 - REAR DOOR WINDOW CONTROL SWITCH RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C801	REAR DOOR WINDOW CONTROL SWITCH RH	GY	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CPW24 (WH-VT)	22	SWITCH - POWER WINDOW REAR RIGHT # UP	3F2T-14474-SA
3	CPW23 (GY)	22	SWITCH - POWER WINDOW REAR RIGHT # DOWN	3F2T-14474-SA
4	CPW08 (GN-BU)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	3F2T-14474-SA
5	*	*	Not Used	N/A
6	GD345 (BK-BU)	22	GROUND - PILLAR B RIGHT	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
• Switch - Power Window - RH - Rear
