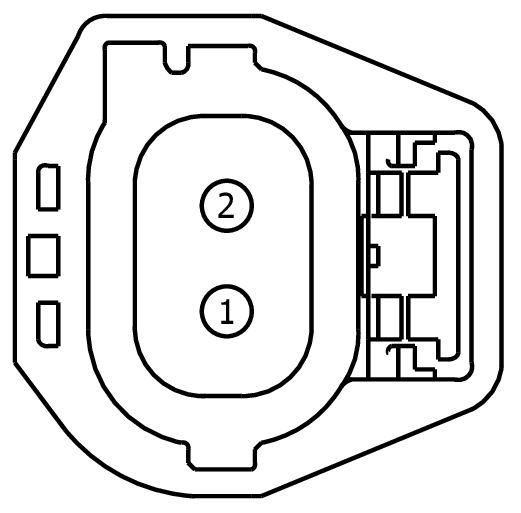

Connector End View C703 - REAR DOOR WINDOW REGULATOR MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C703	REAR DOOR WINDOW REGULATOR MOTOR LH	DK GY	14633	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW47 (VT-OG)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN	97BG-14474-BFA
2	CPW46 (GY-BN)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP	97BG-14474-BFA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1336

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-KA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Motor - Fuel Filler Door
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Rear

Pigtail Kit Part Number WPT-1496

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-KB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Glow Plug
• Motor - Fuel Filler Door
• Motor - Power Slider
• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
