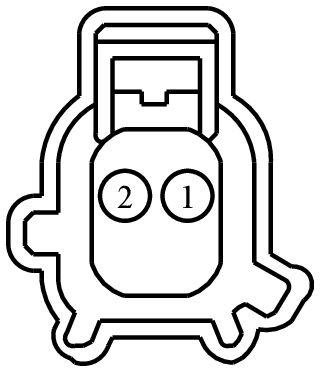

Connector End View C644 - FRONT DOOR SIDE IMPACT SENSOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C644	FRONT DOOR SIDE IMPACT SENSOR RH	BK	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR237 (BN-WH)	22	SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE	97BG-14474-ADA
2	RR175 (YE-OG)	22	CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE -	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Motor - Windshield Washer Fluid Pump
• Sensor - Side Impact

Pigtail Kit Part Number WPT-1566

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKC

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Reverse
• Lamp - Running Board
• Motor - Electronic Throttle Control (ETC)
• Motor - Windshield Washer Fluid Pump
• Sensor - Brake Fluid Level
• Sensor - Side Impact
• Solenoid - Air Suspension
• Solenoid - Variable Oil Pump Control
