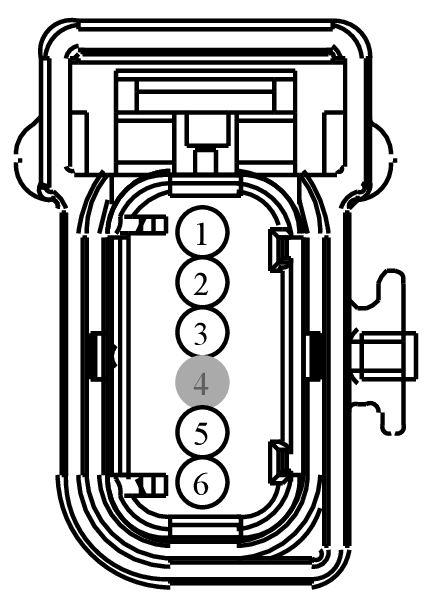

Connector End View C623 - FRONT EXTERIOR DOOR LATCH SWITCH RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C623 | FRONT EXTERIOR DOOR LATCH SWITCH RH | BK | 14630 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPE11 (GY-YE) | 22 | SWITCH - ELATCH PASSENGER OUTSIDE UNLATCH - NO | 8U5T-14474-BB | ||||
| 2 | RPE10 (BU) | 22 | SWITCH - ELATCH PASSENGER OUTSIDE UNLATCH RETURN | 8U5T-14474-BB | ||||
| 3 | CPE10 (GN-VT) | 22 | SWITCH - ELATCH PASSENGER OUTSIDE UNLATCH - NC | 8U5T-14474-BB | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | 8U5T-14474-BB | ||||
| 6 | CLN25 (WH-GN) | 22 | RELAY - PUDDLE LAMPS (KERB ILLUM.) | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1329
Service Part Number:
DU2Z-14S411-EA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Antenna - Keyless Entry
- Handle - Decklid
- Switch - Keyless Entry
- Switch - Seatbelt
