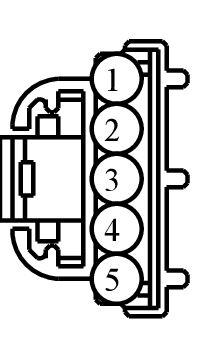

Connector End View C605 - FRONT DOOR LOCK SWITCH RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C605 | FRONT DOOR LOCK SWITCH RH | BK | 14630 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL15 (BU-GY) | 22 | SWITCH - TRIM DOOR LOCK PASSENGER # LOCK | 3F2T-14474-SA | ||||
| 2 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | 3F2T-14474-SA | ||||
| 3 | CPL16 (YE-GN) | 22 | SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK | 3F2T-14474-SA | ||||
| 4 | CPL78 (VT-WH) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | 3F2T-14474-SA | ||||
| 5 | CPL88 (BU-BN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-983
Service Part Number:
6U2Z-14S411-SB
Gauge:
18
Pin material:
Silver
Cavities:
5
Vehicle Uses:
- Module - Heads Up Display
- Switch - Overdrive Cancel
- Switch - Power Window - LH - Rear
- Switch - Power Window - Passenger (Front)
