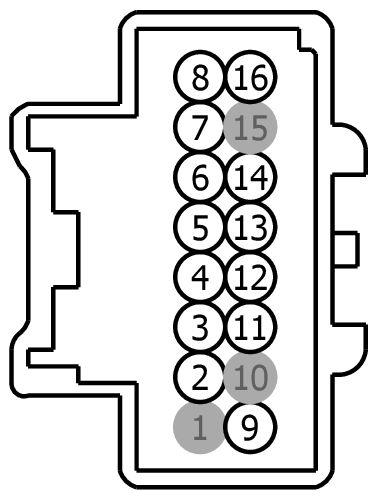

Connector End View C601 - EXTERIOR MIRROR RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C601 | EXTERIOR MIRROR RH | BK | 14630 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-CB | EU2Z-14421-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | CRD14 (WH-OG) | 22 | CTRL MOD. - HEATER MIRROR RIGHT | DU5T-14421-CB | ||||
| 3 | CLS26 (BU-RD) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | DU5T-14421-CB | ||||
| 4 | CLN32 (BN-YE) | 22 | CTRL MOD. - PUDDLE LAMP RIGHT | DU5T-14421-CB | ||||
| 5 | CPM31 (YE-GY) | 22 | CTRL MOD. - RIGHT MIRROR DOWN | DU5T-14421-CB | ||||
| 6 | CPM07 (BN-WH) | 22 | CTRL MOD. - RIGHT MIRROR FOLD IN | DU5T-14421-CB | ||||
| 7 | LPM12 (BU-GY) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + | DU5T-14421-CB | ||||
| 8 | CRB07 (BN) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + | DU5T-14421-CB | ||||
| 9 | RRB07 (YE-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - | DU5T-14421-CB | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | CPM06 (GN-WH) | 22 | CTRL MOD. - RIGHT MIRROR COMMON GLASS ADJUSTMENT | DU5T-14421-CB | ||||
| 12 | VPM38 (BN-GN) | 22 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | DU5T-14421-CB | ||||
| 13 | VPM37 (BU-OG) | 22 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | DU5T-14421-CB | ||||
| 14 | CPM33 (WH-VT) | 22 | CTRL MOD. - RIGHT MIRROR RIGHT | DU5T-14421-CB | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | RPM08 (GN-BU) | 22 | CTRL MOD. - RIGHT MIRROR RETURN | DU5T-14421-CB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-997
Service Part Number:
3U2Z-14S411-DHAB
Gauge:
18
Pin material:
Tin (greased)
Cavities:
16
Vehicle Uses:
- Mirror - Rearview
- Mirror - Sideview
