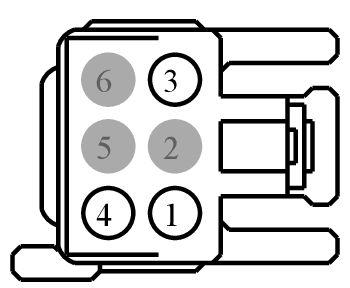

Connector End View C573 - INTERIOR FRONT DOOR LOCK INDICATOR/AMBIENT LAMP LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C573	INTERIOR FRONT DOOR LOCK INDICATOR/AMBIENT LAMP LH	LT GY	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AAB	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDN13 (BN-RD)	22	CTRL MOD. - LIN BUS # 13	97BG-14474-AAB
2	*	*	Not Used	N/A
3	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	97BG-14474-AAB
4	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT	97BG-14474-AAB
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
