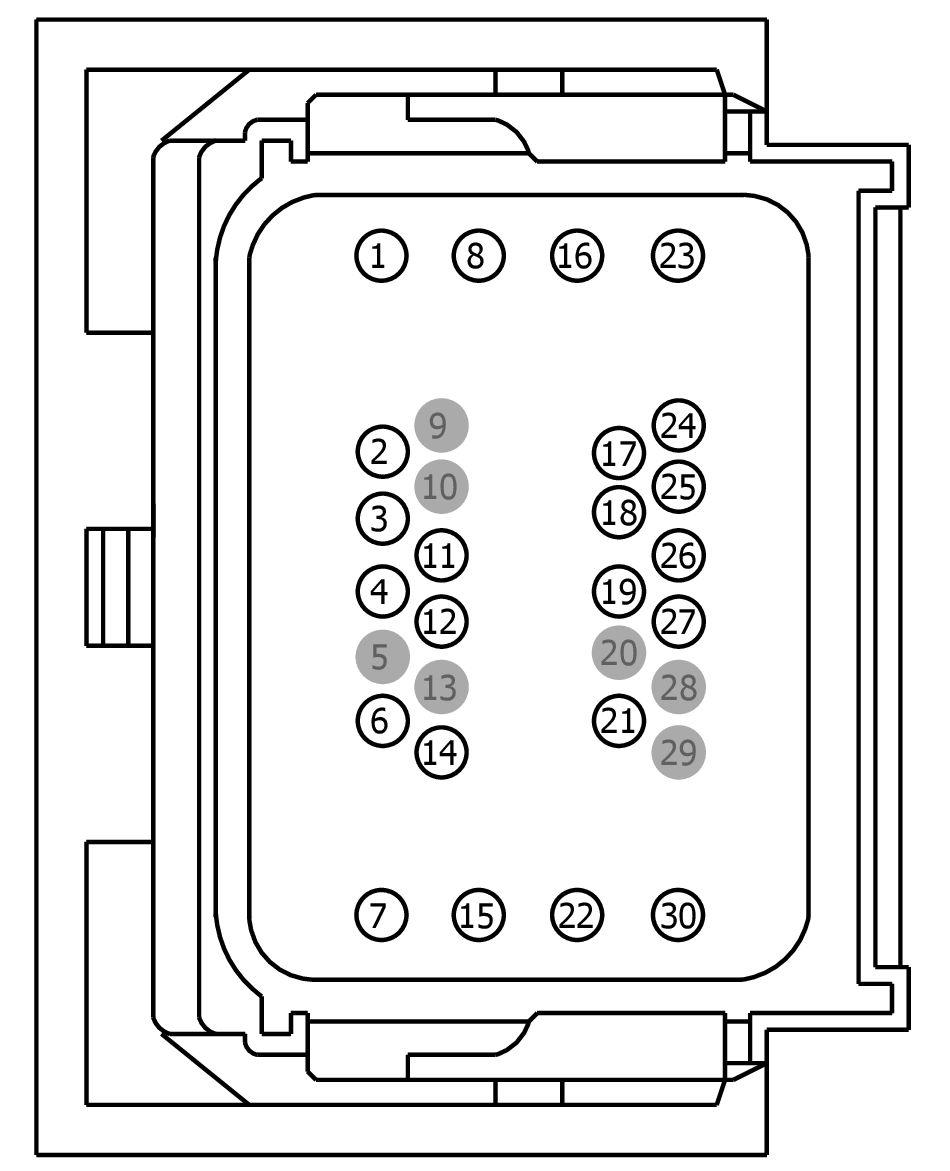

Connector End View C525 - FRONT DOOR LATCH CONTROL MODULE LH [DCME]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C525	FRONT DOOR LATCH CONTROL MODULE LH [DCME]	BK	14631	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB80 (VT-RD)	14	FUSE - 80 OR CIRCUIT BREAKER	98BG-14474-AKA
2	CPE04 (BN-RD)	22	SWITCH - ELATCH DRIVER INSIDE UNLATCH - NO	9U5T-14474-LA
3	CPL43 (VT-GY)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	3F2T-14474-SA
4	RPE03 (BU-GN)	22	SWITCH - ELATCH DRIVER INSIDE UNLATCH RETURN	9U5T-14474-LA
5	*	*	Not Used	N/A
6	CPE03 (YE-VT)	22	SWITCH - ELATCH DRIVER INSIDE UNLATCH - NC	9U5T-14474-LA
7	CPE09 (GY-BN)	18	CINCH MOTOR REARWARD	97BG-14474-AEA
8	CPL51 (BU-GN)	22	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	97BG-14474-ADA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CPL87 (BN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	3F2T-14474-SA
12	CLN80 (GN-BN)	22	SWITCH - DRIVER ELATCH INSIDE ILLUMINATION	9U5T-14474-LA
13	*	*	Not Used	N/A
14	CPE06 (YE-GN)	22	LOCK SWITCH REPEATER	3F2T-14474-SA
15	CPE08 (GN-BU)	18	CINCH MOTOR FORWARD	97BG-14474-AEA
16	CPL11 (GY-BN)	22	CTRL MOD. - DOOR LOCK # ALL LOCK	97BG-14474-ADA
17	CPE02 (GY-VT)	22	SWITCH - ELATCH DRIVER OUTSIDE UNLATCH - NO	9U5T-14474-LA
18	CPL42 (GY-YE)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	3F2T-14474-SA
19	RPE01 (WH-BU)	22	SWITCH - ELATCH DRIVER OUTSIDE UNLATCH RETURN	9U5T-14474-LA
20	*	*	Not Used	N/A
21	CPE01 (GN-OG)	22	SWITCH - ELATCH DRIVER OUTSIDE UNLATCH - NC	9U5T-14474-LA
22	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	97BG-14474-ADA
23	GD233 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT	98BG-14474-AKA
24	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	3F2T-14474-SA
25	CPL26 (GN)	22	SWITCH - LATCH DRIVER # AJAR	3F2T-14474-SA
26	CR191 (BN-WH)	22	CTRL MOD. - EVENT NOTIFICATION SIGNAL (ENS2)	3F2T-14474-SA
27	CPE07 (BN-GN)	22	UNLOCK SWITCH REPEATER	3F2T-14474-SA
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	97BG-14474-ADA
