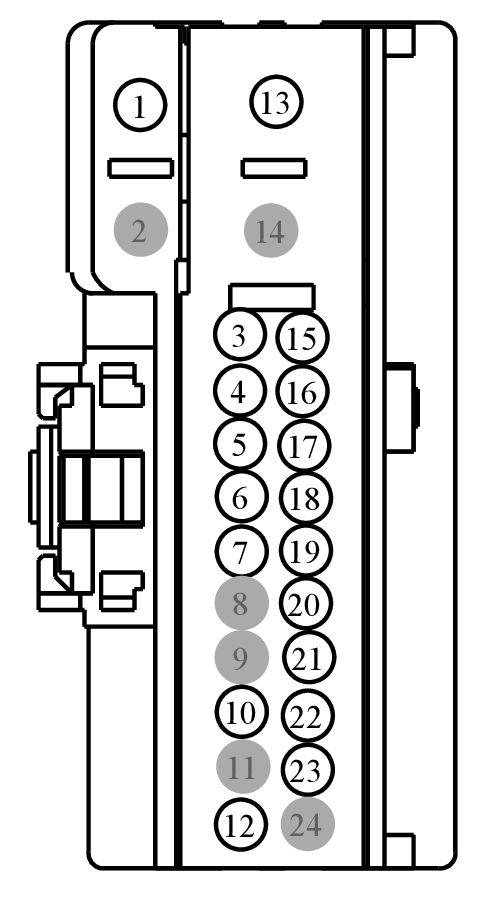

Connector End View C501B - DRIVER DOOR MODULE (DDM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C501B	DRIVER DOOR MODULE (DDM)	BK	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-FA	EU2Z-14474-AA	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW46 (GY-BN)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP	EU5T-14474-FA
2	*	*	Not Used	N/A
3	CRB06 (GN-WH)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER +	8U5T-14474-BB
4	CLS22 (GN-BN)	22	CTRL MOD. - TURN LAMP LEFT MIRROR +	8U5T-14474-BB
5	CLN31 (VT-WH)	22	CTRL MOD. - PUDDLE LAMP LEFT	8U5T-14474-BB
6	CPW22 (GN-RD)	22	SWITCH - POWER WINDOW REAR LEFT # UP	8U5T-14474-BB
7	CPW21 (BN)	22	SWITCH - POWER WINDOW REAR LEFT # DOWN	8U5T-14474-BB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	RRB06 (GY-VT)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER -	8U5T-14474-BB
11	*	*	Not Used	N/A
12	CPW06 (WH-BU)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION	8U5T-14474-BB
13	CPW47 (VT-OG)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN	EU5T-14474-FA
14	*	*	Not Used	N/A
15	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR RIGHT	8U5T-14474-BB
16	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	8U5T-14474-BB
17	CPM03 (BU-WH)	22	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	8U5T-14474-BB
18	CPM04 (VT-BN)	22	CTRL MOD. - LEFT MIRROR FOLD IN	8U5T-14474-BB
19	CRD13 (GN-VT)	22	CTRL MOD. - HEATER MIRROR LEFT	8U5T-14474-BB
20	RPM05 (VT-GN)	22	CTRL MOD. - LEFT MIRROR RETURN	8U5T-14474-BB
21	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	8U5T-14474-BB
22	VPM36 (BN-YE)	22	SENSOR - LEFT MIRROR POSITION # VERTICAL	8U5T-14474-BB
23	LPM30 (GY-RD)	22	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) +	8U5T-14474-BB
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1608

Service Part Number:

KU2Z-14S411-UA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver
