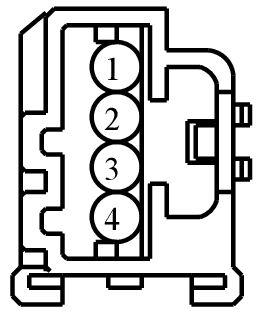

Connector End View C485 - D-PILLAR SPEAKER LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C485	D-PILLAR SPEAKER LH	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14421-CB	EU2Z-14421-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMEC8 (VT-WH)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR +	DU5T-14421-CB
2	RMEC8 (GY-YE)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR -	DU5T-14421-CB
3	RMEC8 (GY-YE)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR -	DU5T-14421-CB
4	VMEC8 (VT-WH)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR +	DU5T-14421-CB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1041

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AJA

Gauge:

18

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Switch - Deck Lid / Lift Gate Ajar
