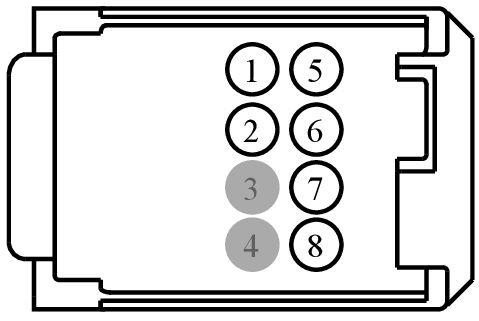

Connector End View C480 - REAR LAMP FADE CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C480	REAR LAMP FADE CONTROL MODULE	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF34 (YE-OG)	22	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	9U5T-14474-DB
2	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # 14	9U5T-14474-DB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	VLS68 (YE-GY)	22	CTRL MOD. - FADE # PWM LEFT TAIL	9U5T-14474-DB
6	VLS69 (YE-BU)	22	CTRL MOD. - FADE # PWM RIGHT TAIL	9U5T-14474-DB
7	VLS70 (BN)	22	CTRL MOD. - FADE # PWM DECKLID	9U5T-14474-DB
8	GD349 (BK-VT)	22	GROUND - PILLAR D LEFT	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1457

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AVA

Gauge:

20

Pin material:

Tin

Cavities:

8

Vehicle Uses:

• Module - Front Interface
• Radio - Amplifier
