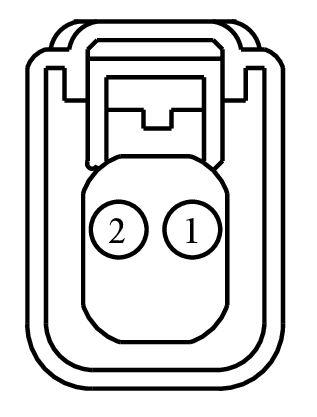

Connector End View C475 - HIGH MOUNTED STOPLAMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C475	HIGH MOUNTED STOPLAMP	BN	14B562	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT	97BG-14474-ADA
2	GD352 (BK-GY)	22	GROUND - PILLAR D RIGHT # 2ND POINT	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1231

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DVAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Heater - Fuel
• Sensor - Oil Temperature
